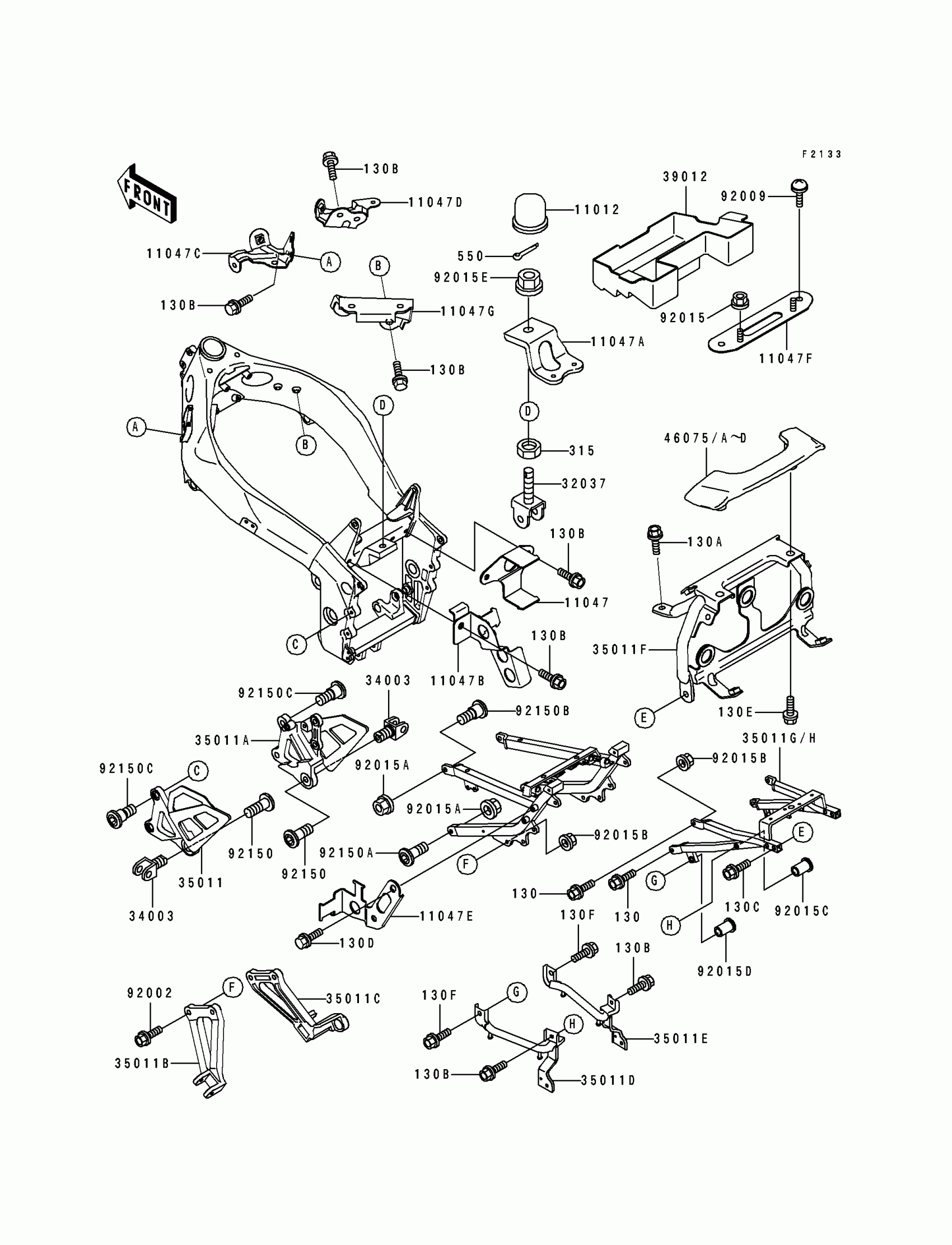

Kawasaki Ninja® ZX™-7 Electro Bracket Diagram

#

Description
Price

11012

CAP

11012-1844

$9.55

11047

BRACKET,FUEL PUMP

11047-1265

$12.99

11047A

BRACKET,BATTERY

11047-1267

Unavailable

11047B

BRACKET,FUEL FILTER

11047-1852

Unavailable

11047C

BRACKET,RADIATOR,LH

11047-1853

Unavailable

11047D

BRACKET,RADIATOR,RH

11047-1854

Unavailable

11047E

BRACKET,RELAY&SEAT LOCK

11047-1855

Unavailable

11047F

BRACKET,IGNITER

11047-1858

Unavailable

11047G

BRACKET

11047-1967

Unavailable

32037

BRACKET-SHOCKABSORBER

32037-1564

$48.27

34003

HOLDER-STEP

34003-1327

$37.05

35011

STAY,FR,LH

35011-1552

$144.53

35011A

STAY,FR,RH

35011-1553

$144.53

35011B

STAY,RR,LH

35011-1554

$133.33

35011C

STAY,RR,RH

35011-1555

$139.87

35011D

STAY,REAR GRIP,LH

35011-1559

$33.89

35011E

STAY,REAR GRIP,RH

35011-1560

Unavailable

35011F

STAY,TAIL LAMP

35011-1628

Unavailable

35011G

STAY,REAR FRAME,SILVER NO.30

35011-1632-KF

Unavailable

39012

CASE-STORAGE

39012-1056

Unavailable

46075C

GRIP,GRABRAIL,P.A.WHITE

46075-1100-R1

$206.81

46075D

GRIP,GRABRAIL,BLACK MICA

46075-1100-20

Unavailable

92002

BOLT,FLANGED,8X30

92002-1445

Unavailable

92009

SCREW,6X14

92009-1662

$3.92

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92015A

NUT,FLANGED,10MM

92015-1387

$4.31

92015B

NUT,FLANGED,8MM

92015-1406

$4.45

92015C

NUT,POP,6MM,L=15

92015-1791

$4.69

92015D

NUT,POP,8MM,L=18

92015-1794

$5.24

92015E

NUT,FLANGED,16MM

92015-1881

$23.10

92150

BOLT,SOCKET,10X25

92150-1268

$6.22

92150A

BOLT,10X35

92150-1295

$9.81

92150B

BOLT,SOCKET,10X30

92150-1517

$9.21

92150C

BOLT,SOCKET,8X20

92150-1839

$2.15

130

BOLT-FLANGED,8X25

130H0825

$2.89

130A

BOLT-FLANGED,6X14,BLACK

130J0614

$2.33

130B

BOLT-FLANGED,6X16,BLACK

130J0616

$1.92

130C

BOLT-FLANGED,6X35

130J0635

Unavailable

130D

BOLT-FLANGED,6X55,BLACK

130J0655

Unavailable

130E

BOLT-FLANGED,8X16

130J0816

$1.66

130F

BOLT-FLANGED,8X20

130J0820

$0.83

315

NUT-HEX-FINE,16MM

315B1600

Unavailable

550

PIN-COTTER,4.0X25

550D4025

$0.48
