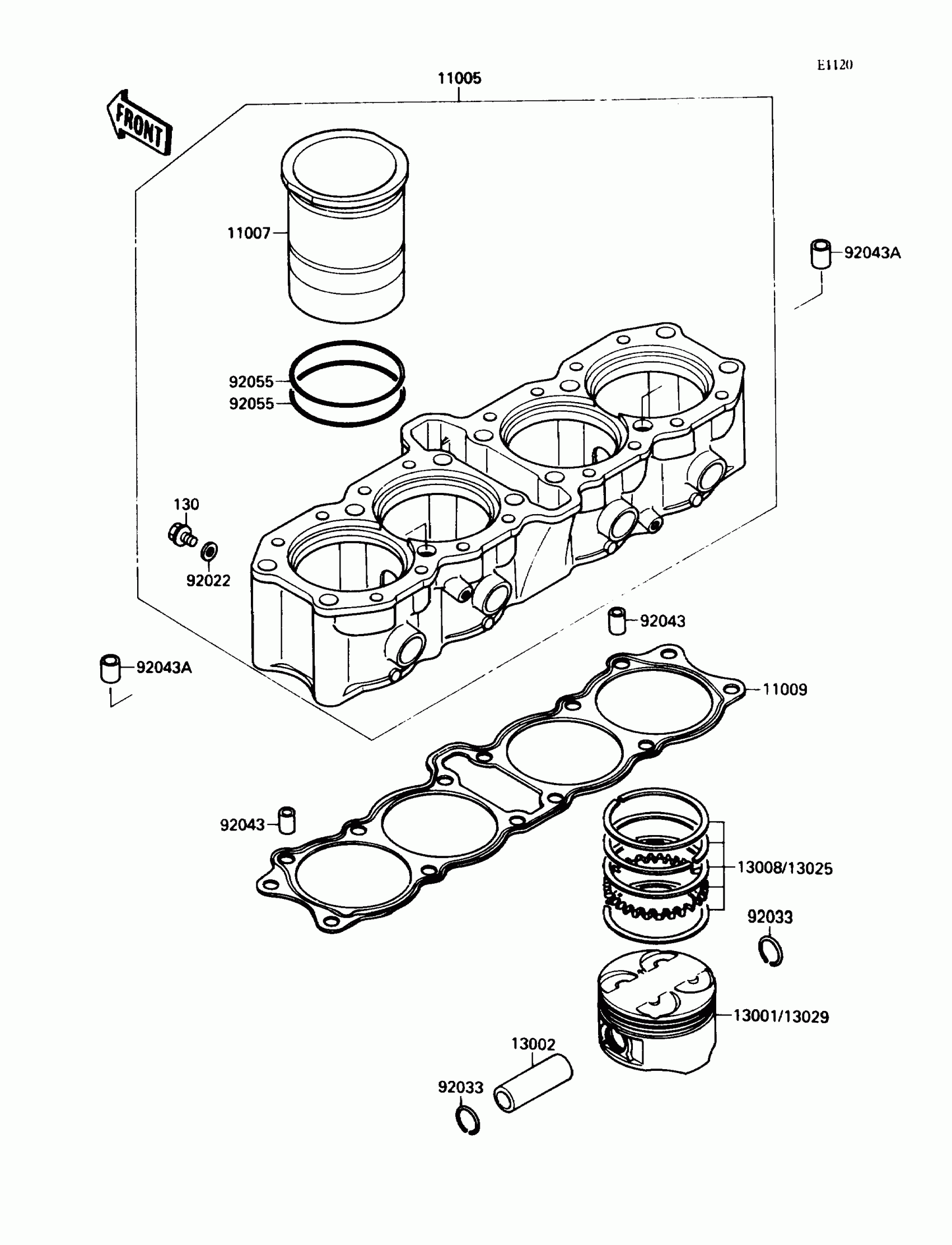

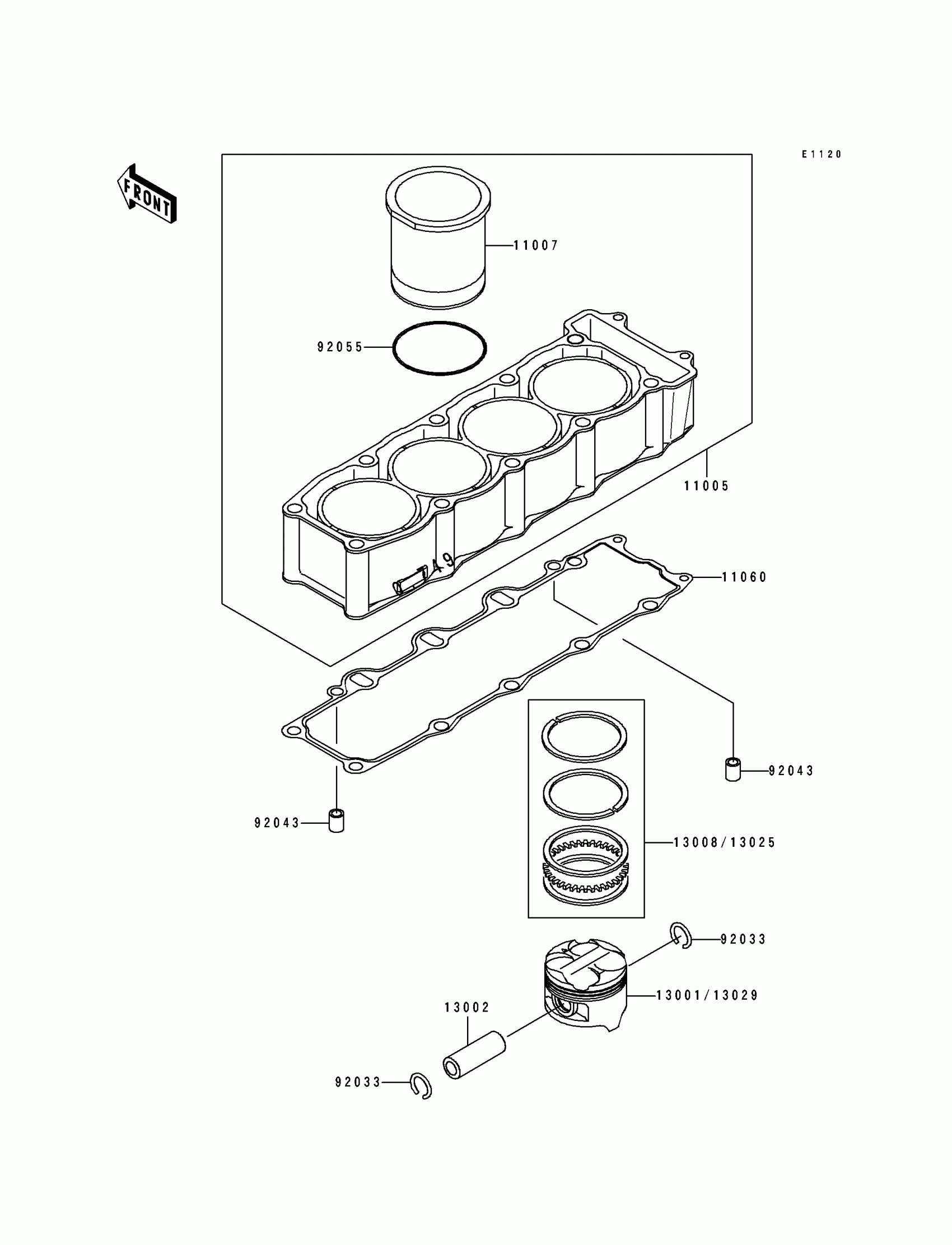

Kawasaki Ninja® ZX™-7 Cylinder/Piston(s) Diagram

Description

Price

11005

CYLINDER-ENGINE

11005-1578

Unavailable

11007

LINER-CYLINDER

11007-1090

Unavailable

11009

GASKET,CYLINDER BASE

11009-1777

$25.63

13001

PISTON-ENGINE,STD

13001-1294

Unavailable

13002

PIN-PISTON

13002-1065

Unavailable

13008

RING-SET-PISTON,STD

13008-1083

$76.36

13025

RING-SET-PISTON L,O/S,0.50

13025-1079

Unavailable

13029

PISTON-ENGINE L,O/S 0.50

13029-1187

Unavailable

92022

WASHER,6.2X11X1

92022-304

$3.65

92033

RING-SNAP

92033-1054

$2.47

92043

PIN,8.2X10X14

92043-1264

$0.64

92043A

PIN,10.1X12X14

92043-4009

$6.22

92055

RING-O,74.6X2.4

92055-1357

$8.76

130

BOLT-FLANGED,6X10

130C0610

$3.84
