Description

Price

11002

HEAD-ASSY-CYLINDER

11002-1254

Unavailable

11002A

HEAD-ASSY-CYLINDER

11002-1255

Unavailable

11004

GASKET-HEAD

11004-1195

$97.03

11009

GASKET,10X14.5X1.5

11009-1105

$6.51

11009A

GASKET,8.2X14X1.0

11009-1344

$3.17

16065

HOLDER-CARBURETOR,#1

16065-1187

Unavailable

16065A

HOLDER-CARBURETOR,#3

16065-1188

Unavailable

39193

PIPE-OIL

39193-1002

$27.69

49002

GUIDE-VALVE

49002-1060

Unavailable

49002A

GUIDE-VALVE

49002-1097

Unavailable

51044

TUBE-ASSY,OIL PAN-HEAD

51044-1101

$133.02

92001

BOLT,FLANGED,6X38

92001-1105

$4.69

92002

BOLT,6X46

92001-1872

$4.31

92002A

BOLT,BANJO,8X24

92002-1858

$11.50

92004

STUD,8X30,BLACK

92004-1101

Unavailable

92022

WASHER,10.5X20X1.6

92022-1591

$4.34

92037

CLAMP

92037-1802

$9.38

92043

PIN,6.2X8X14

92043-1263

$0.43

92066

PLUG,PT1/2X12.5

92066-1253

$8.98

92066A

PLUG,PT3/8X10

92066-1262

$3.31

92066B

PLUG,12X25

92068-006

$4.26

92066B

PLUG,12X25

92068-006

$4.26

92066B

PLUG,12X25

92068-006

$4.26

92150

BOLT,BANJO,10X37

92150-1122

$8.76

92150A

BOLT,10X148

92150-1239

$9.55

92150B

BOLT,SOCKET,10X158

92150-1240

Unavailable

92170

CLAMP

92170-1066

$9.05

120

BOLT-SOCKET,6X18

120P0618

$2.87

600

BALL-STEEL,1/4

600A0800

$0.62

670

O RING

670D1505

$4.31

670A

O RING,8MM

670D1508

$4.31

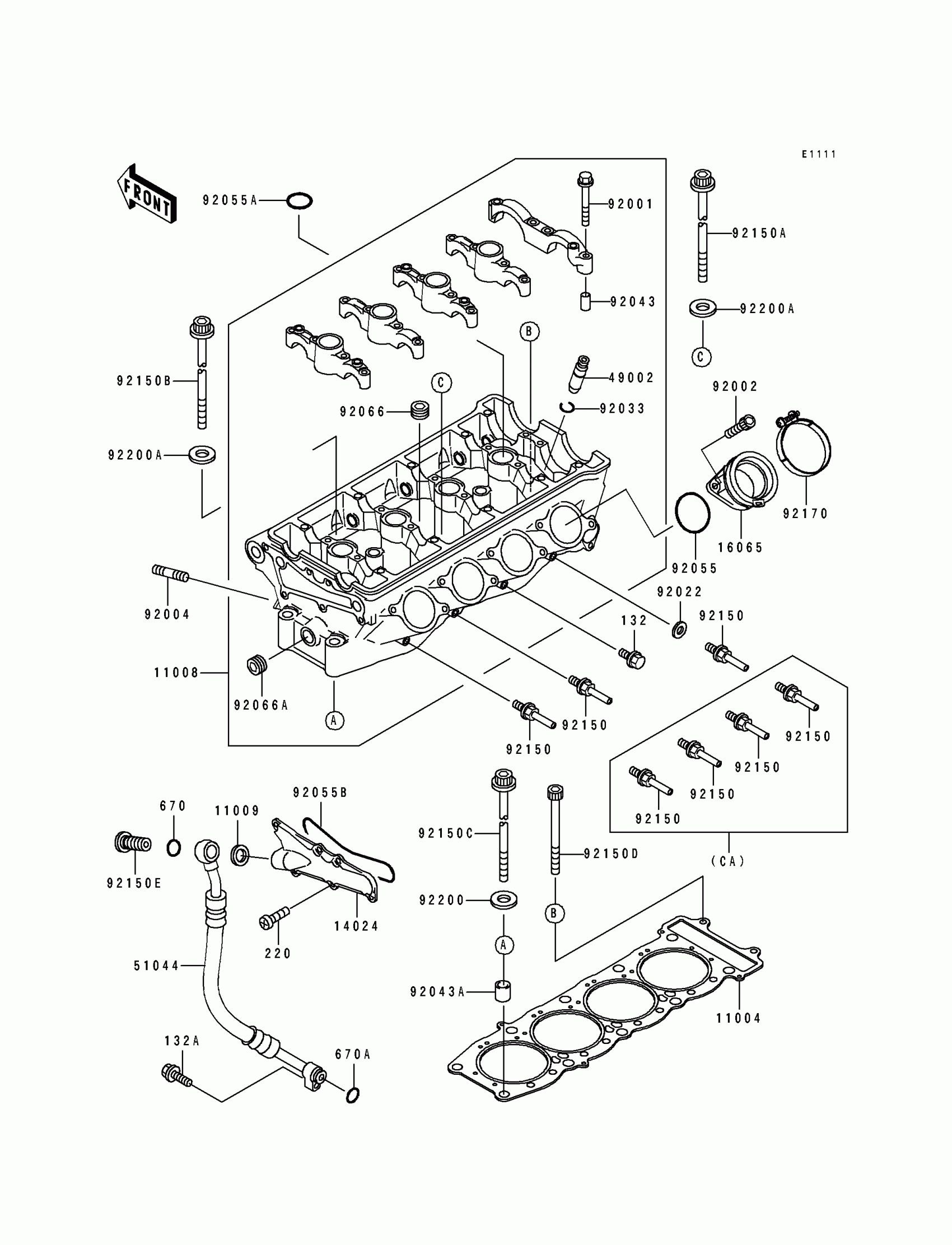

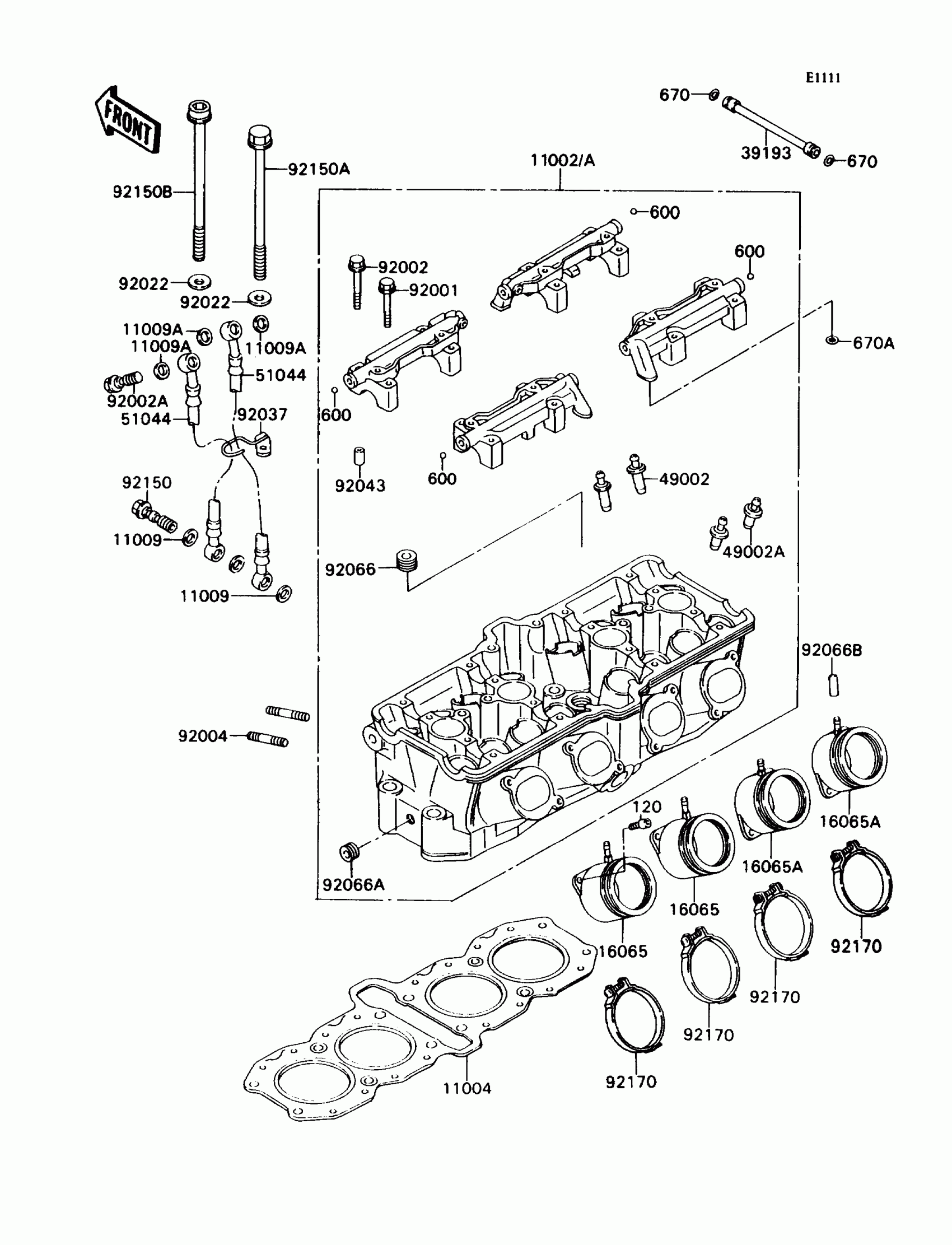

Kawasaki Ninja® ZX™-7 Cylinder Head Diagram

HEAD-ASSY-CYLINDER

HEAD-ASSY-CYLINDER

GASKET-HEAD

GASKET,10X14.5X1.5

GASKET,8.2X14X1.0

HOLDER-CARBURETOR,#1

HOLDER-CARBURETOR,#3

PIPE-OIL

GUIDE-VALVE

GUIDE-VALVE

TUBE-ASSY,OIL PAN-HEAD

BOLT,FLANGED,6X38

BOLT,6X46

BOLT,BANJO,8X24

STUD,8X30,BLACK

WASHER,10.5X20X1.6

CLAMP

PIN,6.2X8X14

PLUG,PT1/2X12.5

PLUG,PT3/8X10

PLUG,12X25

PLUG,12X25

PLUG,12X25

BOLT,BANJO,10X37

BOLT,10X148

BOLT,SOCKET,10X158

CLAMP

BOLT-SOCKET,6X18

BALL-STEEL,1/4

O RING

O RING,8MM
