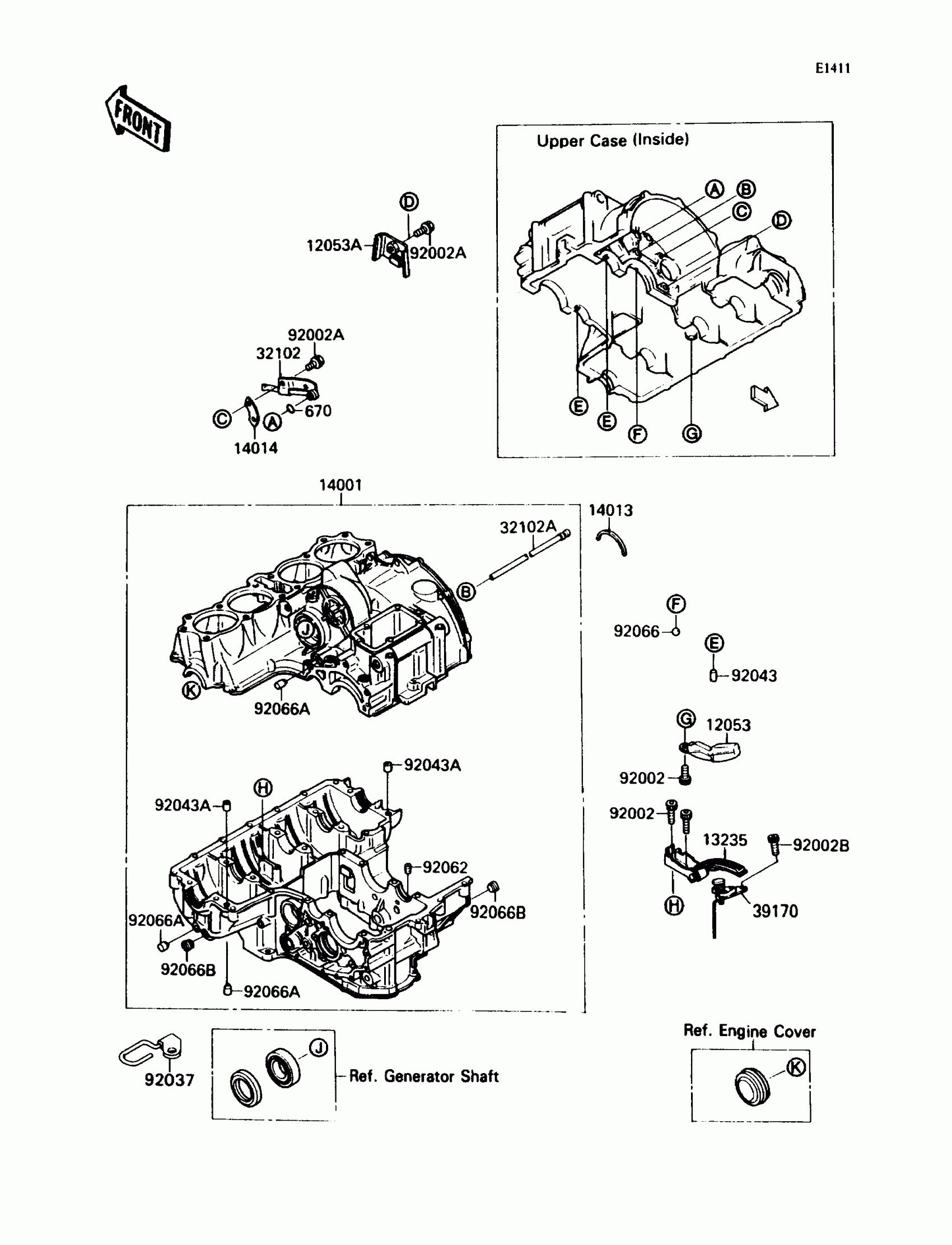

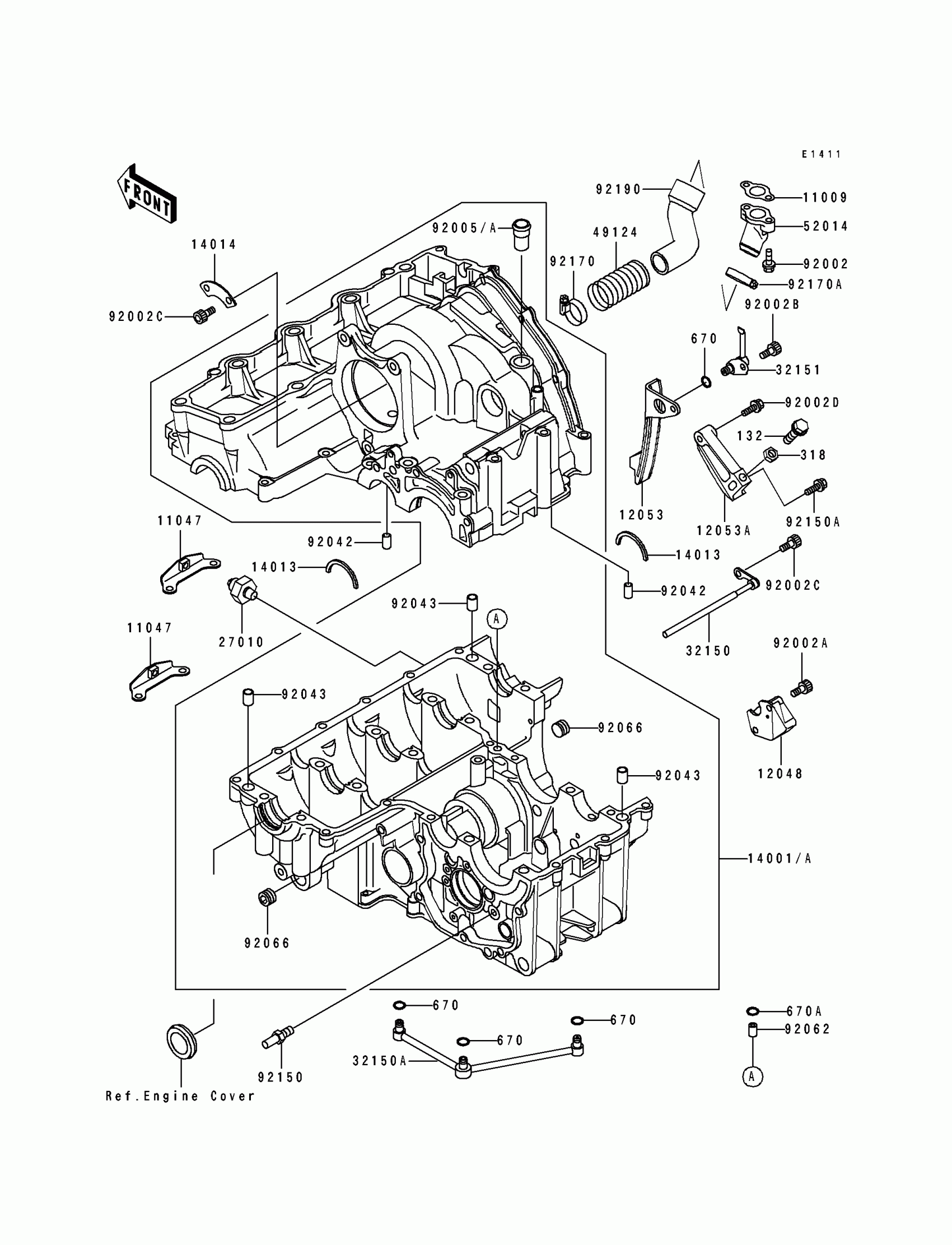

Kawasaki Ninja® ZX™-7 Crankcase Diagram

Description

Price

12053

GUIDE-CHAIN

12053-1197

Unavailable

12053A

GUIDE-CHAIN

12053-1199

Unavailable

13235

GUIDE-COMP,TENSIONER

13235-1059

Unavailable

14001

SET-CRANKCASE

14001-5268

Unavailable

14013

RING-POSITION,T=1.98

14013-1004

$4.96

14014

PLATE-POSITION

14014-1056

$14.10

32102

PIPE,OIL

32102-1237

$35.67

32102A

PIPE,MISSION OIL

32102-1238

$16.76

39170

TENSIONER-COMP

39170-1056

$88.26

92002

BOLT,SOCKET,6X14

92002-1592

$4.31

92002A

BOLT,6X14

92002-1656

$4.69

92002B

BOLT,SOCKET,6X12

92002-1796

$4.69

92037

CLAMP

92037-1802

$9.38

92043

PIN,DOWEL,6X16

92042-016

$5.00

92043A

PIN,DOWEL,10X14

92043-1037

$0.74

92062

NOZZLE,SILVER

92062-015

$3.70

92066

PLUG,RUBBER BALL,6.7

92066-057

$5.18

92066A

PLUG,OIL LINE,7.2X8

92066-1012

$6.51

92066B

PLUG,PT3/8X10

92066-1262

$3.31

670

O RING

670D1505

$4.31
