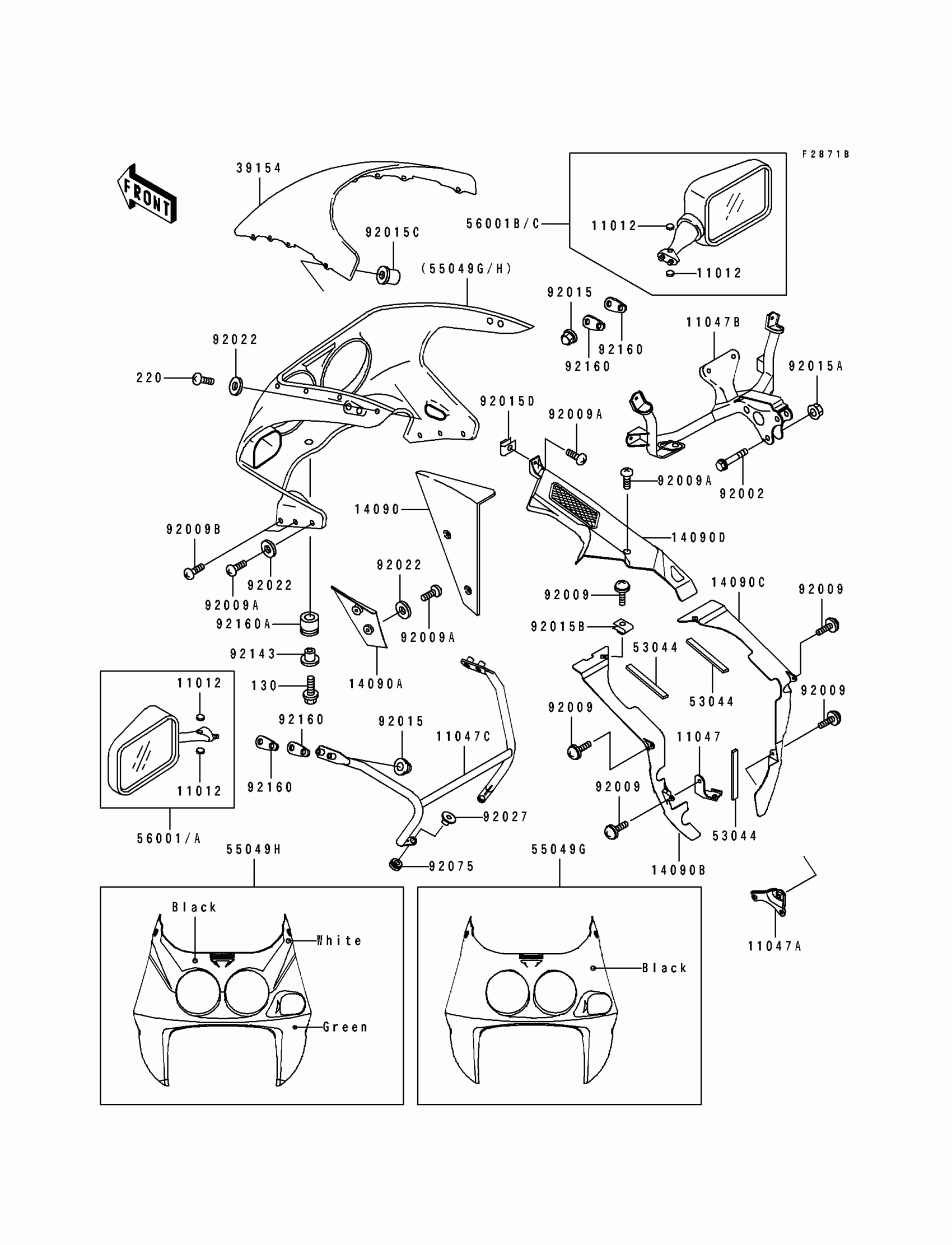

Kawasaki Ninja® ZX™-7 Cowling(ZX750-L3) Diagram

#

Description
Price

11012

CAP,MIRROR

11012-1818

$2.75

11047

BRACKET,INNER COWLING,LH

11047-1856

Unavailable

11047A

BRACKET,INNER COWLING,RH

11047-1857

Unavailable

11047B

BRACKET,UPP COWLING

11047-1860

Unavailable

11047C

BRACKET,MIRROR

11047-1861

$142.83

14090

COVER,RADIATOR,RH

14090-1236

Unavailable

14090A

COVER,RADIATOR,LH

14090-1237

Unavailable

14090B

COVER,INNER COWLING,LH

14090-1265

Unavailable

14090C

COVER,INNER COWLING,RH

14090-1266

Unavailable

14090D

COVER,INNER COWLING,FR,UPP

14090-1267

Unavailable

39154

WINDSHIELD

39154-1120

$224.16

53044

TRIM,L=150

53044-1248

Unavailable

55049G

COWLING.,UPP,P.P.BLACK MICA

55049-5326-20

$950.63

55049H

COWLING.,UPP,GREEN/WHITE

55049-5329-CK

Unavailable

56001

MIRROR-ASSY,LH,EBONY

56001-1376-6C

$85.41

56001A

MIRROR-ASSY,LH,P.WHITE

56001-1376-6F

$102.90

56001B

MIRROR-ASSY,RH,EBONY

56001-1377-6C

$85.41

56001C

MIRROR-ASSY,RH,P.WHITE

56001-1377-6F

$102.90

92002

BOLT,8X35

92002-1198

$4.61

92009

SCREW,6X14

92009-1555

$2.69

92009A

SCREW,5X16,BLACK

92009-1654

$2.17

92009B

SCREW,5X20,BLACK

92009-1656

$3.03

92015

NUT,CAP,6MM,BLACK

92015-1170

$0.60

92015A

NUT,CAP,8MM,BLACK

92015-1174

$3.81

92015B

NUT,6MM

92015-1602

$5.61

92015C

NUT,WELL,5MM

92015-1757

$5.58

92015D

NUT,5MM

92015-1798

$5.12

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$2.99

92027

COLLAR,L=14.1

92027-1920

$5.12

92075

DAMPER

92075-277

$1.90

92143

COLLAR

92143-1026

$5.66

92160

DAMPER,MIRROR

92160-1089

$5.81

92160A

DAMPER

92160-1141

$3.24

130

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

220

SCREW-PAN-CROS,5X16,BLACK

220C0516

Unavailable
