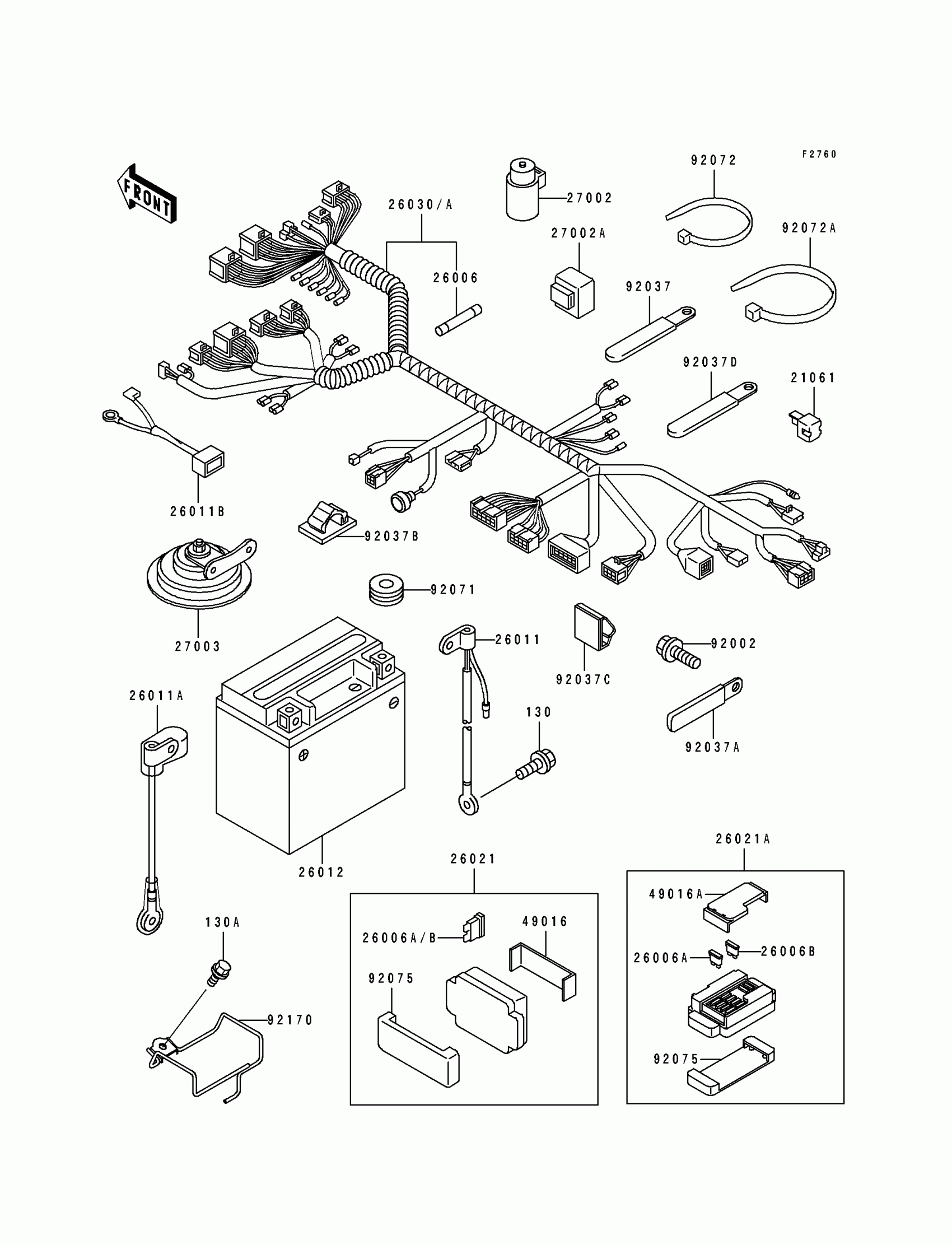

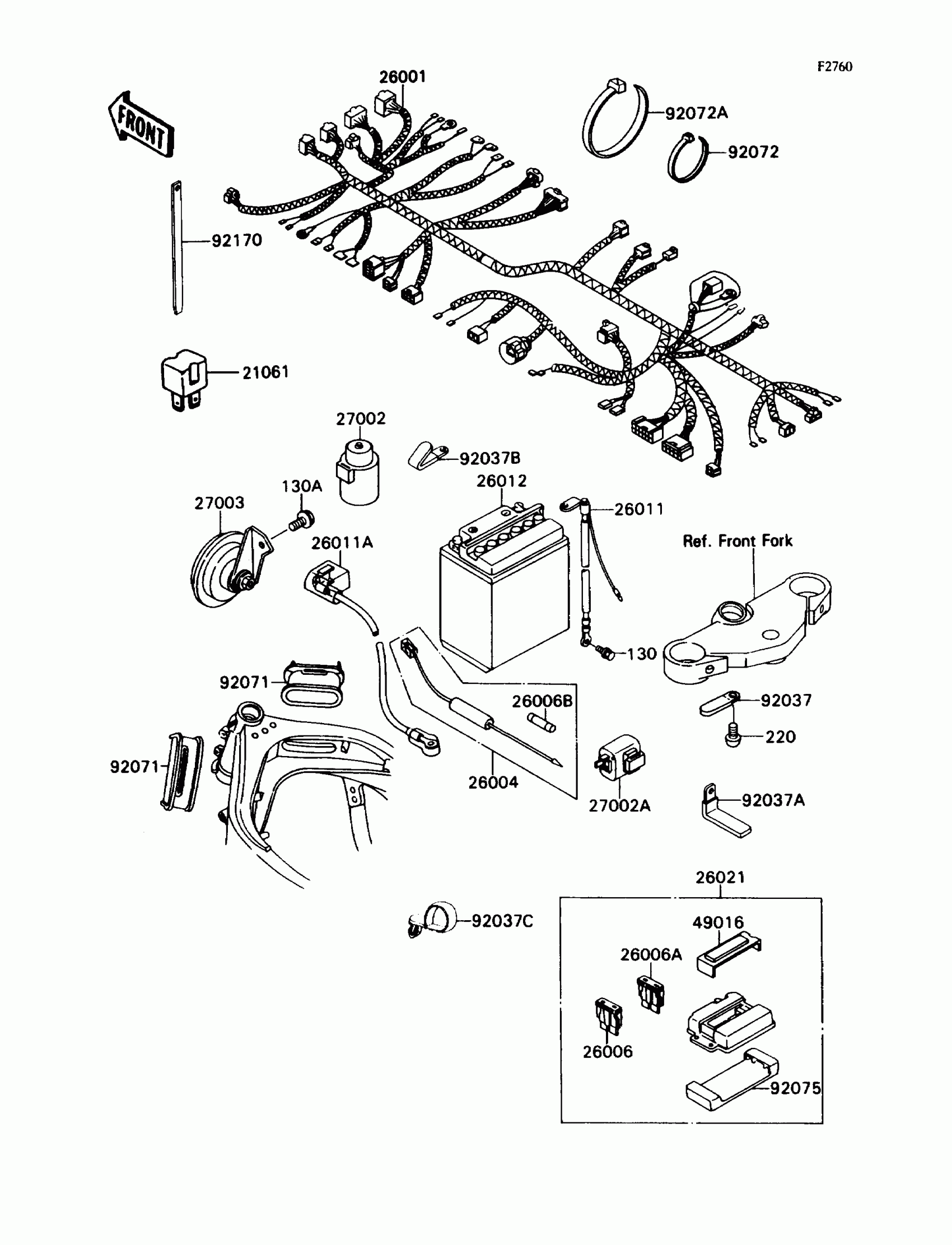

Kawasaki Ninja® ZX™-7 Chassis Electrical Equipment Diagram

Description

Price

26006

FUSE,20A,L=30

26006-1056

$5.06

26006A

FUSE,BLADE,30A,GREEN

26006-1067

Unavailable

26006B

FUSE,10A-R

26006-1068

Unavailable

26011

WIRE-LEAD,BATTERY(-)

26011-1429

$30.83

26011A

WIRE-LEAD,BATTERY(+)

26011-1475

Unavailable

26011B

WIRE-LEAD,THERMO SENSOR

26011-1507

$29.17

26012

BATTERY,YTX12-BS,12V 10AH

26012-1281

$119.64

26021A

JUNCTION BOX

26021-1089

Unavailable

26030A

HARNESS,MAIN

26030-1333

$335.66

27002

RELAY-ASSY

27002-1051

$52.57

27002A

RELAY-ASSY,TURN SIGNAL

27002-1059

$89.11

27003

HORN

27003-1316

$83.85

49016A

COVER-SEAL,FUSE

49016-1177

$9.54

92002

BOLT,TAPPING,5X16

92002-1472

$1.52

92037

CLAMP,L=45

92037-1539

$5.00

92037A

CLAMP

92037-1679

$5.52

92037B

CLAMP,HARNESS

92037-1816

$7.52

92037C

CLAMP,WIRING HARNESS

92037-1954

Unavailable

92037D

CLAMP

92037-1993

$5.52

92071

GROMMET,SENSOR LEAD

92071-1058

$5.73

92072

BAND,L=202

92072-1195

$1.56

92072A

BAND,L=365

92072-1197

$7.84

92075

DAMPER,JUNCTION BOX

92075-1688

$14.36

92170

CLAMP,HARNESS

92170-1375

$35.01

130

BOLT-FLANGED,6X10

130G0610

$1.17

130A

BOLT-FLANGED,6X12

130J0612

$2.19
