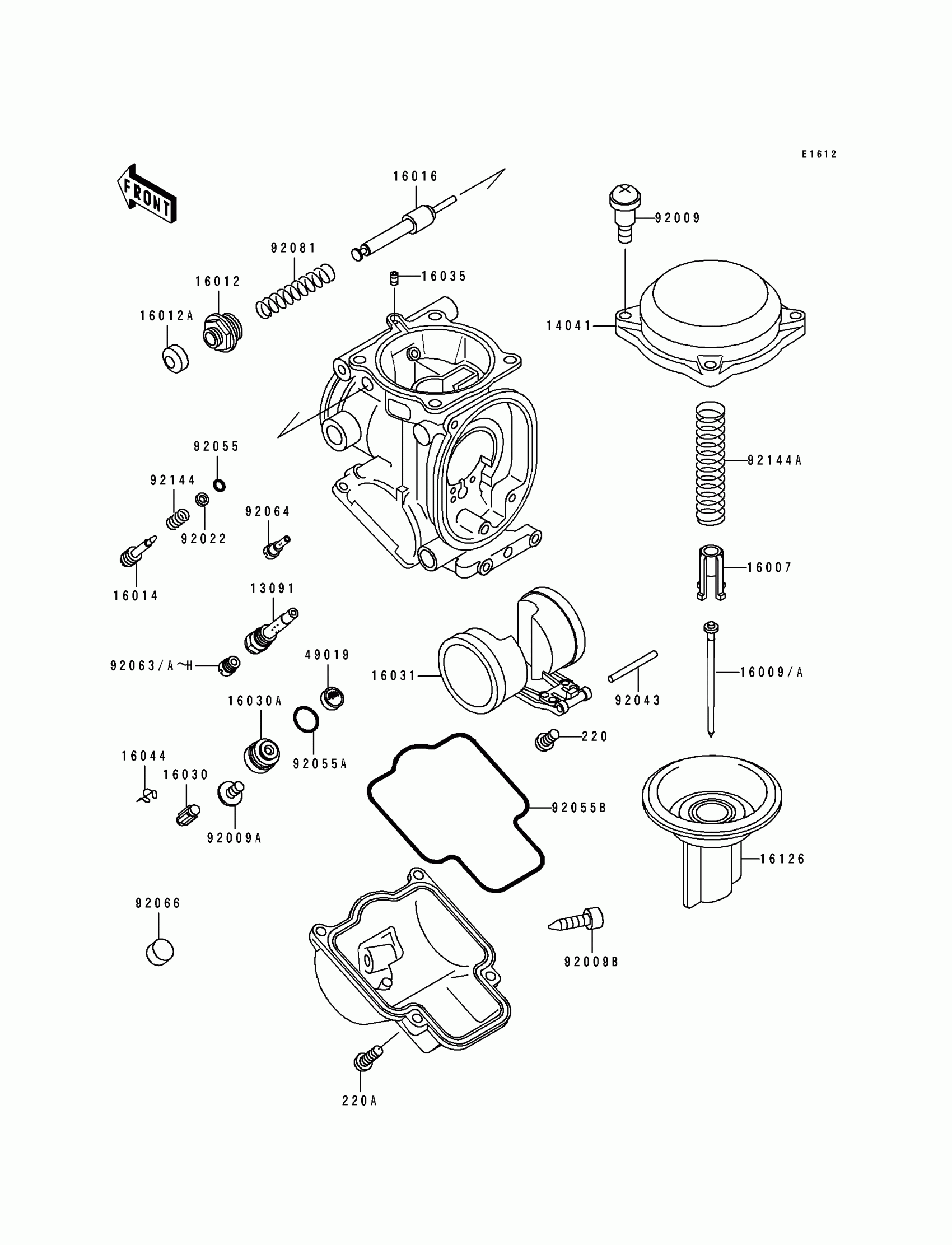

Kawasaki Ninja® ZX™-7 Carburetor Parts Diagram

#

Description
Price

13091

HOLDER,NEEDLE JET

13091-1633

Unavailable

13091A

HOLDER,NEEDLE JET

13091-1634

Unavailable

14041

CAP-CHAMBER,MIXING

14041-1091

$67.66

16007

SEAT-SPRING,VALVE

16007-1117

$25.03

16009

NEEDLE-JET,N52U

16009-1539

Unavailable

16012

CAP-STARTER PLUNGER

16012-1051

$10.88

16012A

CAP-STARTER PLUNGER

16012-1052

$15.04

16014

SCREW-PILOT AIR

16014-1062

$19.45

16016

PLUNGER,STARTER

16016-1061

$43.41

16030

VALVE-FLOAT

16030-1007

$47.99

16030A

SEAT-VALVE,FLOAT

16030-1068

$59.96

16031

FLOAT

16031-1070

$59.96

16035

JET-AIR,LEAK

16035-1055

$15.74

16126

VALVE,VACUUM

16126-1214

$225.19

49019

FILTER-FUEL,STRAINER

49019-3707

$8.15

92009

SCREW,4X4.4

92009-1549

$5.24

92009A

SCREW,4X8

92009-1550

$4.38

92009B

SCREW,DRAIN,M6X0.75

92009-1551

$9.91

92022

WASHER,PLAIN

92022-1003

$4.31

92037

CLAMP,FLOAT VALVE

16044-007

$7.91

92043

PIN,FLOAT

92043-1207

$11.14

92055

RING-O,PILOT ADJUST

92055-1002

$4.31

92055A

RING-O,VALVE SEAT

92055-1425

$7.62

92055B

RING-O,FLOAT CHAMBER

92055-1426

$20.99

92063

JET-MAIN,#135

92063-1014

$14.10

92063A

JET-MAIN,#125

92063-1069

$14.79

92063B

JET-MAIN,#128

92063-1074

$14.10

92063C

JET-MAIN,#130

92063-1075

$14.10

92063D

JET-MAIN,#132

92063-1076

$14.10

92064

JET-PILOT,#38

92064-1050

$19.04

92064A

JET-PILOT,#35

92064-1101

$17.03

92064B

JET-PILOT,#35

92064-1101

$17.03

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$5.05

92081

SPRING,STARTER PLUNGER

92081-1761

$9.36

92081A

SPRING,VACUUM VALVE

92081-1826

$25.81

92144

SPRING,PILOT AIR SCREW

92144-1349

$9.80

220

SCREW-PAN-CROS,4X8

220D0408

$0.68

220A

SCREW-PAN-CROS

220D0410

$2.30
