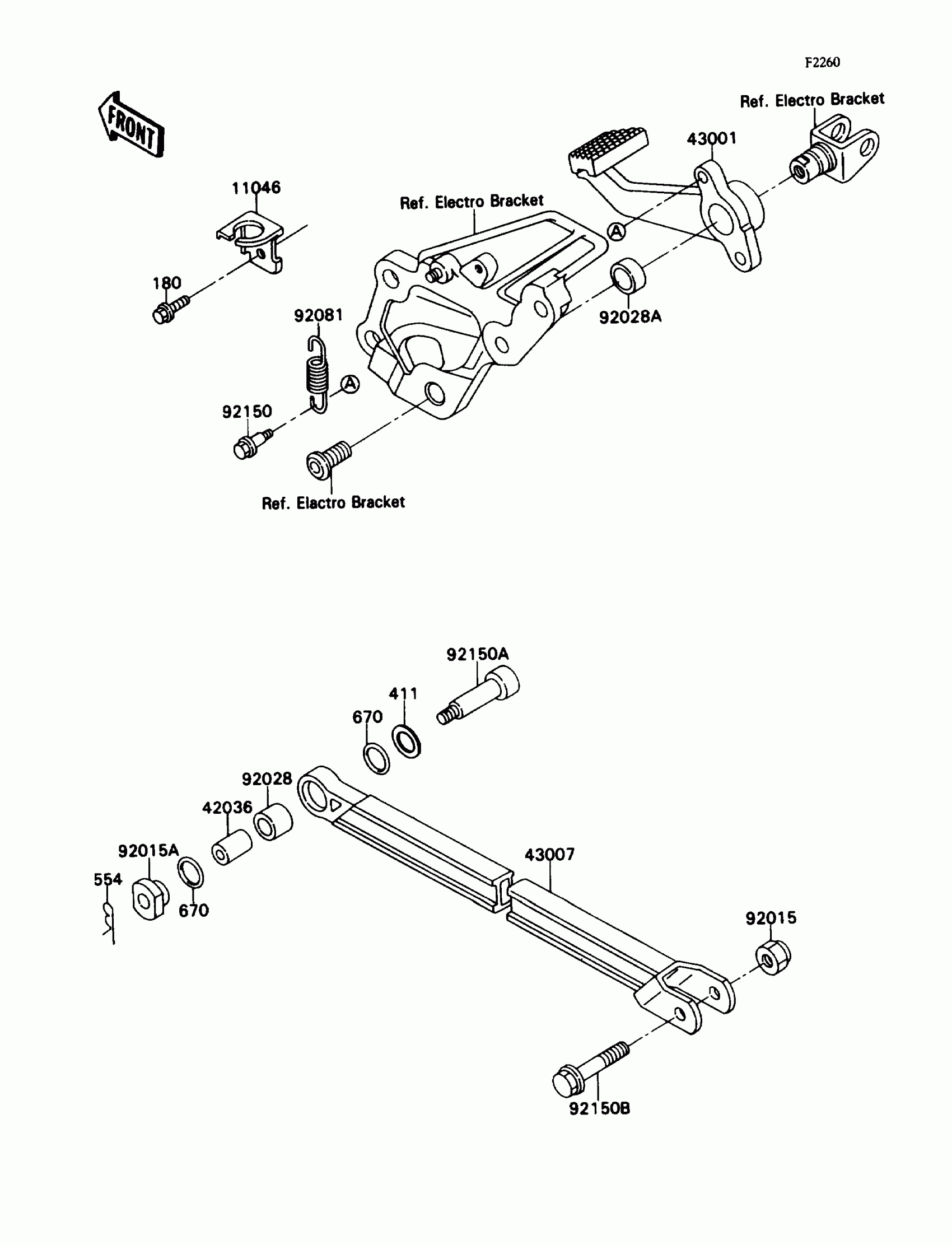

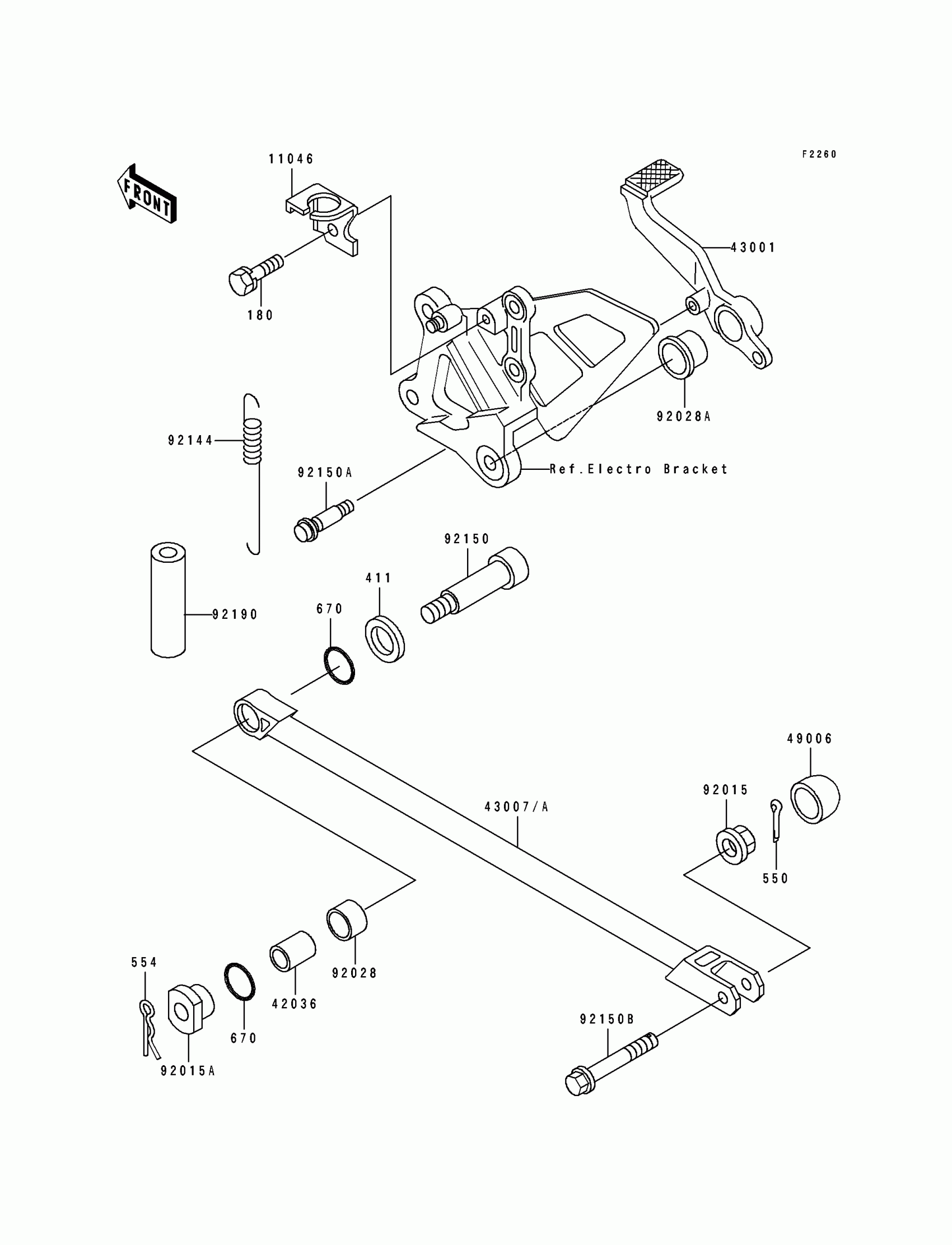

Kawasaki Ninja® ZX™-7 Brake Pedal/Torque Link Diagram

Description

Price

11046

BRACKET,REAR BRAKE SWITCH

11046-1252

Unavailable

42036

SLEEVE,10.1X16X20

42036-1242

$17.92

43001

LEVER-BRAKE,PEDAL

43001-1269

$151.71

43007

ROD-TORQUE

43007-1147

$111.45

92015

NUT,CAP,LOCK,8MM

92015-1133

$8.61

92015A

NUT,8MM

92015-1747

$17.32

92028

BUSHING

92028-1468

$10.00

92028A

BUSHING

92028-1558

$9.03

92081

SPRING,BRAKE PEDAL

92081-1147

Unavailable

92150

BOLT,6MM

92150-1113

$7.56

92150A

BOLT,SOCKET,8X61

92150-1167

Unavailable

92150B

BOLT,FLANGED,8X42

92150-1415

$2.68

180

BOLT-UPSET-WS,6X14

180H0614

Unavailable

411

WASHER-PLAIN,10MM

411D1000

$4.25

554

PIN-SNAP,8MM

554A0800

Unavailable

670

O RING,16MM

670B2016

$1.04
