Description

Price

11010

FILTER-ASSY-AIR

11010-1374

Unavailable

11010A

FILTER-ASSY-AIR

11010-1377

Unavailable

11012

CAP,AIR FILTER

11012-1687

Unavailable

11013

ELEMENT-AIR FILTER

11013-1180

$52.04

14069

BREATHER

14069-1051

$10.19

14073

DUCT,AIR FILTER,#1

14073-1376

Unavailable

14073A

DUCT,AIR FILTER,#2

14073-1377

Unavailable

14073B

DUCT,INTAKE

14073-1378

$24.32

16126

VALVE,AIR SWITCH

16126-1104

$193.18

39162

SILENCER-INTAKE

39162-1003

$68.27

92002

BOLT,FLANGED,6X12

92002-1350

$5.35

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92005A

FITTING,TUBE,T-TYPE

92005-1130

$34.95

92037

CLAMP,TUBE

92037-1076

$7.22

92037A

CLAMP,TUBE

92037-147

$7.34

92037B

CLAMP

92037-1610

$2.00

92037C

CLAMP

92037-1712

$5.00

92037D

CLAMP

92037-1860

Unavailable

92037E

CLAMP,TUBE

92037-1972

$4.31

92037F

CLAMP,TUBE

92037-213

$4.31

92055

RING-O,67.7X3.1

92055-1434

$9.89

92059

TUBE,4X9X190

92059-1032

$19.09

92059A

TUBE,4X9X100

92059-1058

$19.09

92059B

TUBE,4X9X230

92059-1068

$19.09

92059C

TUBE,BREATHER

92059-1391

$18.66

92059D

TUBE,AIR SWITCH-HEAD,LH

92059-1717

$23.46

92059E

TUBE,AIR SWITCH-HEAD,RH

92059-1765

$14.80

92066

PLUG,DRAIN

92066-1211

$8.51

92066A

PLUG

92066-1306

$5.46

92066B

PLUG

92066-1324

$4.26

92071

GROMMET,AIR FILTER

92071-1028

$7.27

92071A

GROMMET

92071-1183

$4.36

92150

BOLT,5X16

92150-1160

$4.40

92160

DAMPER,BATTERY

92160-1094

$5.59

92190

TUBE,BLOWBY

92059-1988

Unavailable

92190A

TUBE,AIR SWITCH VALVE

92059-1989

$11.86

92190B

TUBE,AIR SWITCH VALVE

92190-1001

$2.74

92190C

TUBE,14X20X73

92190-1002

$6.64

92190D

TUBE,BLOWBY

92190-1010

Unavailable

92200

WASHER,5.5X16X1

92200-1027

$2.21

130

BOLT-FLANGED

130D0535

$2.93

224

SCREW-PAN-WP-CROS

224B0616

$0.72

702

TUBE-RUBBER

702A07150

$7.27

702A

TUBE-RUBBER

702A07330

$7.64

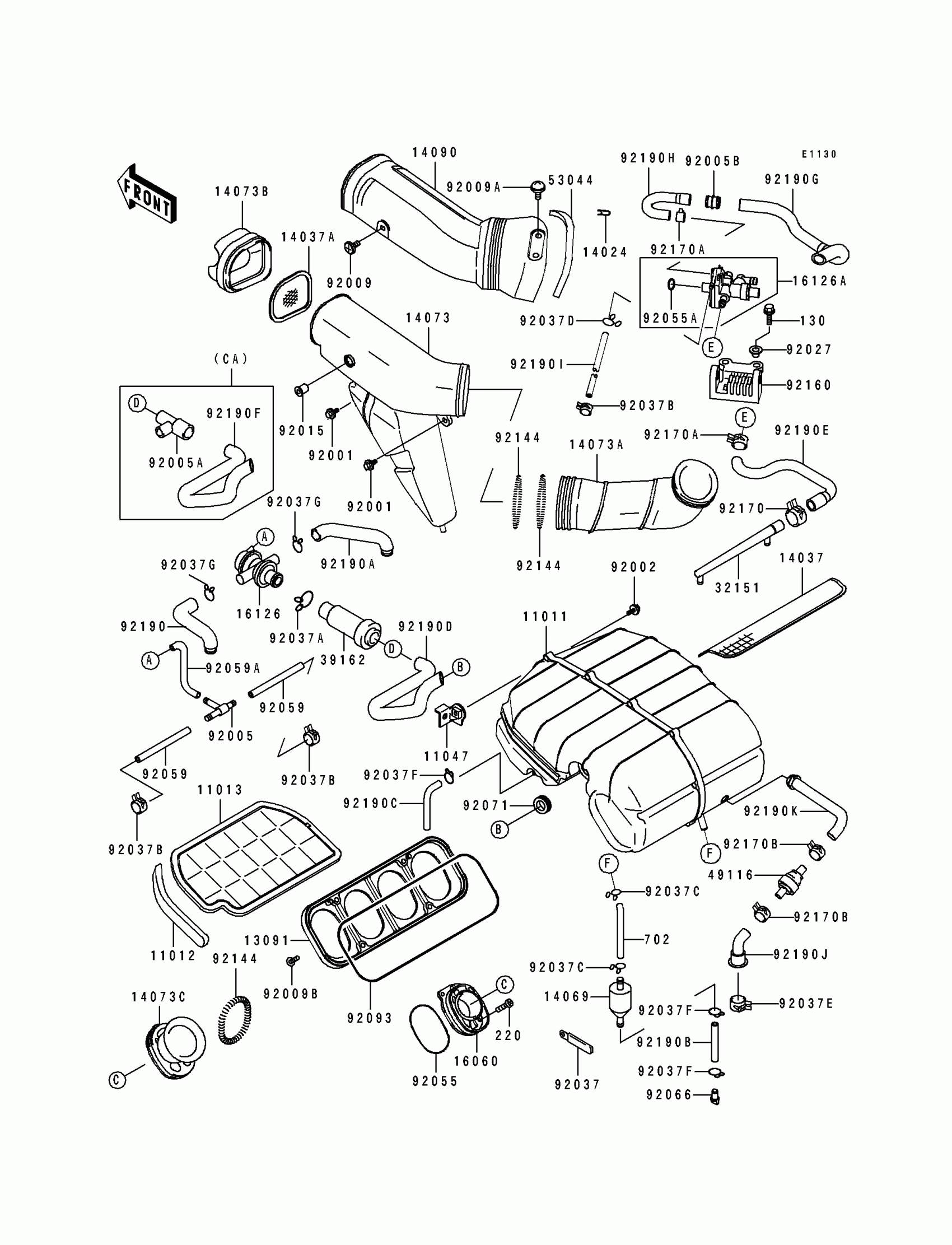

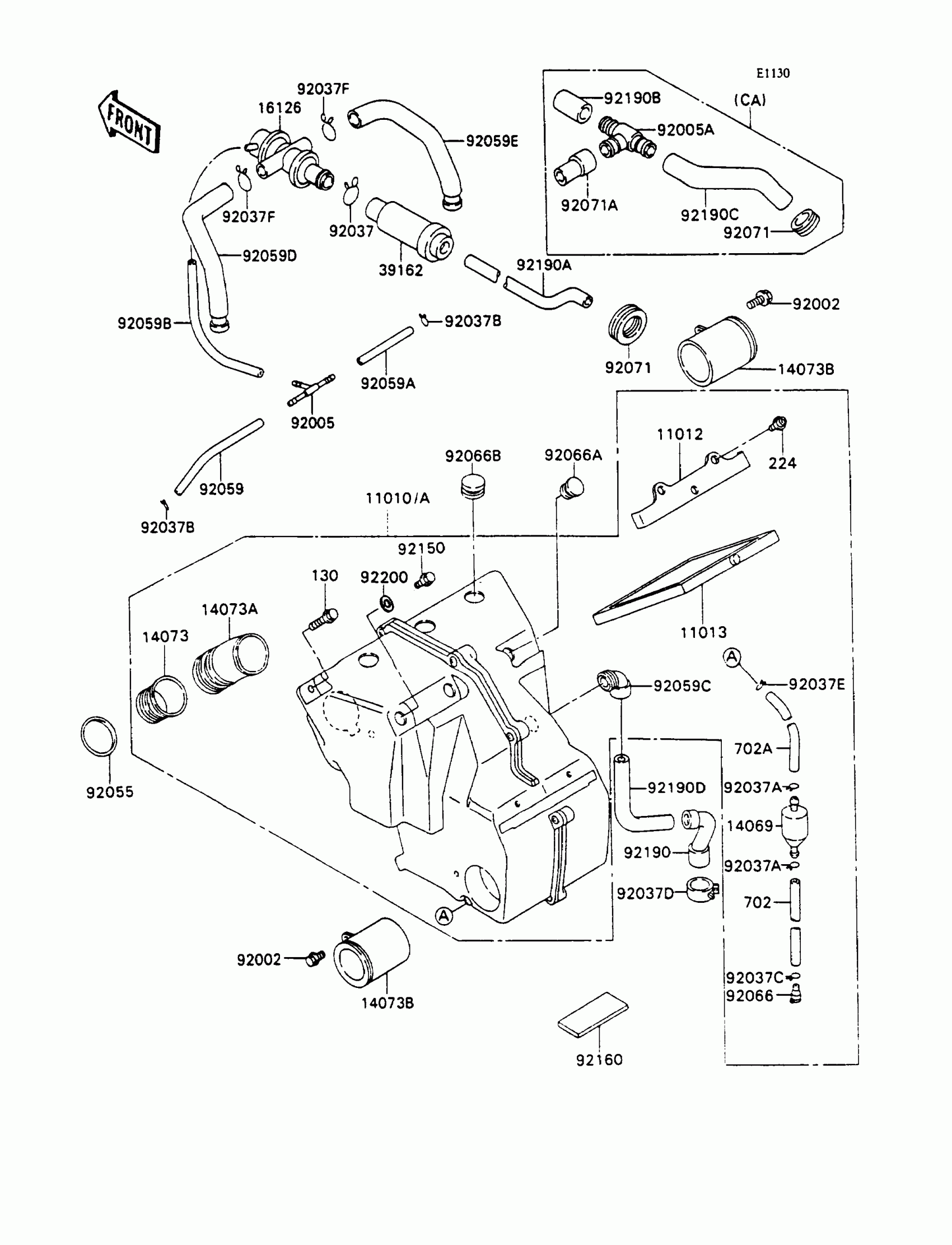

Kawasaki Ninja® ZX™-7 Air Cleaner Diagram

FILTER-ASSY-AIR

FILTER-ASSY-AIR

CAP,AIR FILTER

ELEMENT-AIR FILTER

BREATHER

DUCT,AIR FILTER,#1

DUCT,AIR FILTER,#2

DUCT,INTAKE

VALVE,AIR SWITCH

SILENCER-INTAKE

BOLT,FLANGED,6X12

FITTING,TUBE,T-TYPE

FITTING,TUBE,T-TYPE

CLAMP,TUBE

CLAMP,TUBE

CLAMP

CLAMP

CLAMP

CLAMP,TUBE

CLAMP,TUBE

RING-O,67.7X3.1

TUBE,4X9X190

TUBE,4X9X100

TUBE,4X9X230

TUBE,BREATHER

TUBE,AIR SWITCH-HEAD,LH

TUBE,AIR SWITCH-HEAD,RH

PLUG,DRAIN

PLUG

PLUG

GROMMET,AIR FILTER

GROMMET

BOLT,5X16

DAMPER,BATTERY

TUBE,BLOWBY

TUBE,AIR SWITCH VALVE

TUBE,AIR SWITCH VALVE

TUBE,14X20X73

TUBE,BLOWBY

WASHER,5.5X16X1

BOLT-FLANGED

SCREW-PAN-WP-CROS

TUBE-RUBBER

TUBE-RUBBER
