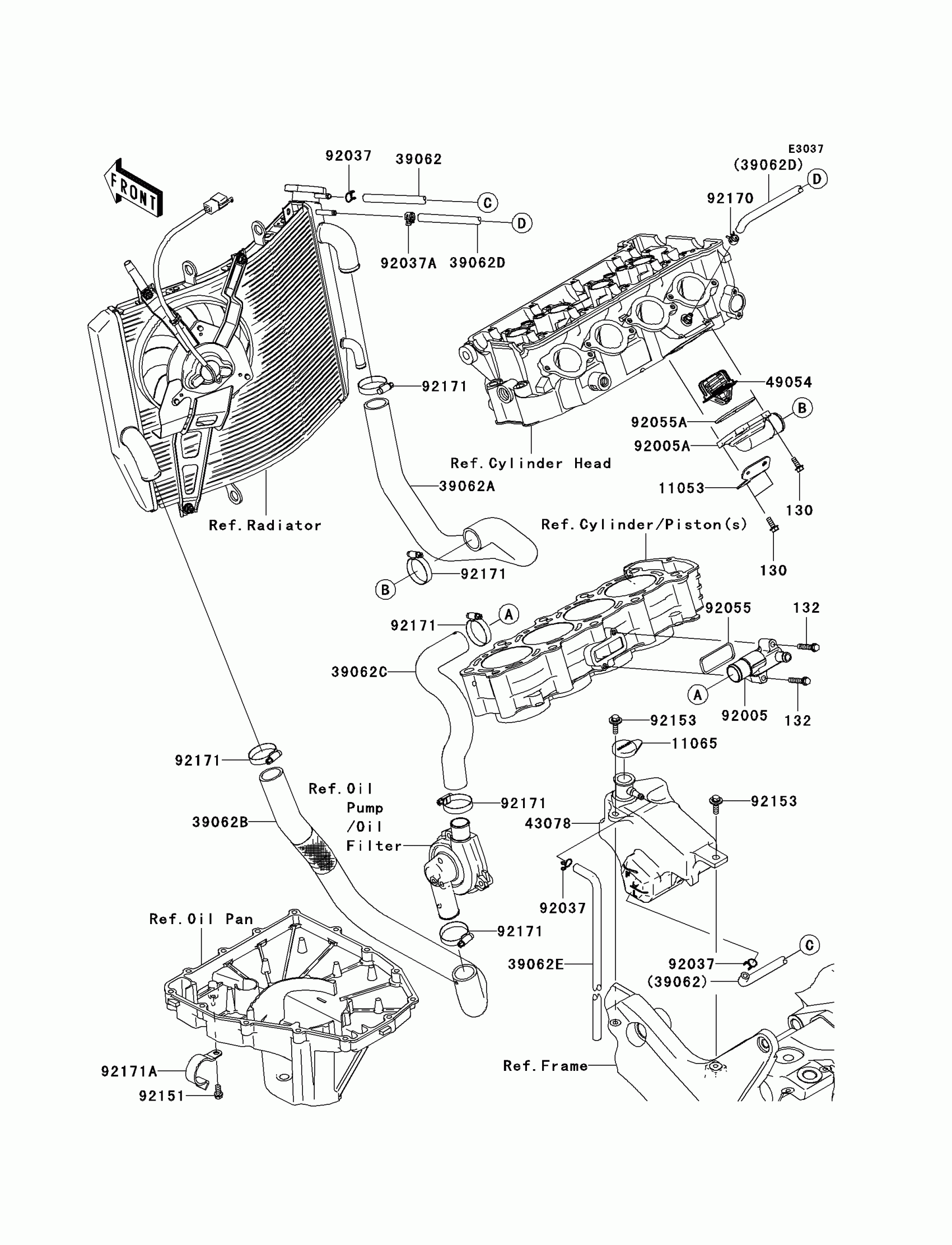

Kawasaki Ninja® ZX™-6RR Water Pipe Diagram

Description

Price

130

BOLT-FLANGED,5X14

130J0514

$3.41

132

BOLT-FLANGED-SMALL,6X30

132J0630

$3.84

11053

BRACKET

11053-1712

$8.74

11065

CAP,COOLANT

11065-1093

$3.97

39062

HOSE-COOLING,5.5X10.5X717

39062-0015

$18.52

39062A

HOSE-COOLING,THERMO-RAD

39062-0070

Unavailable

39062B

HOSE-COOLING,RAD-W.PUMP

39062-0071

$64.18

39062C

HOSE-COOLING,W.PUMP-CYLINDER

39062-0072

$26.45

39062D

HOSE-COOLING,RAD-HEAD

39062-0078

$9.58

39062E

HOSE-COOLING,5.5X10.5X550

39062-1208

$37.82

43078

RESERVOIR

43078-0022

$75.42

49054

THERMOSTAT

49054-1067

Unavailable

92005

FITTING

92005-0028

$42.12

92005A

FITTING,THERMO CAP

92005-1275

$79.65

92037

CLAMP,TUBE

92037-147

$7.34

92037A

CLAMP,TUBE

92037-1505

$4.76

92055

RING-O

92055-1402

$7.84

92055A

RING-O,THERMOSTAT CAP

92055-1699

$9.07

92151

BOLT,6X12

92151-1133

Unavailable

92153

BOLT,6X20

92153-0502

$2.80

92170

CLAMP

92170-1493

$5.00

92171

CLAMP

92171-0179

$8.20

92171A

CLAMP

92171-0421

$9.67
