- Partiron
- OEM Parts
- Kawasaki
- motorcycle
- 2006
- Ninja® ZX™-6RR
Valve(s)

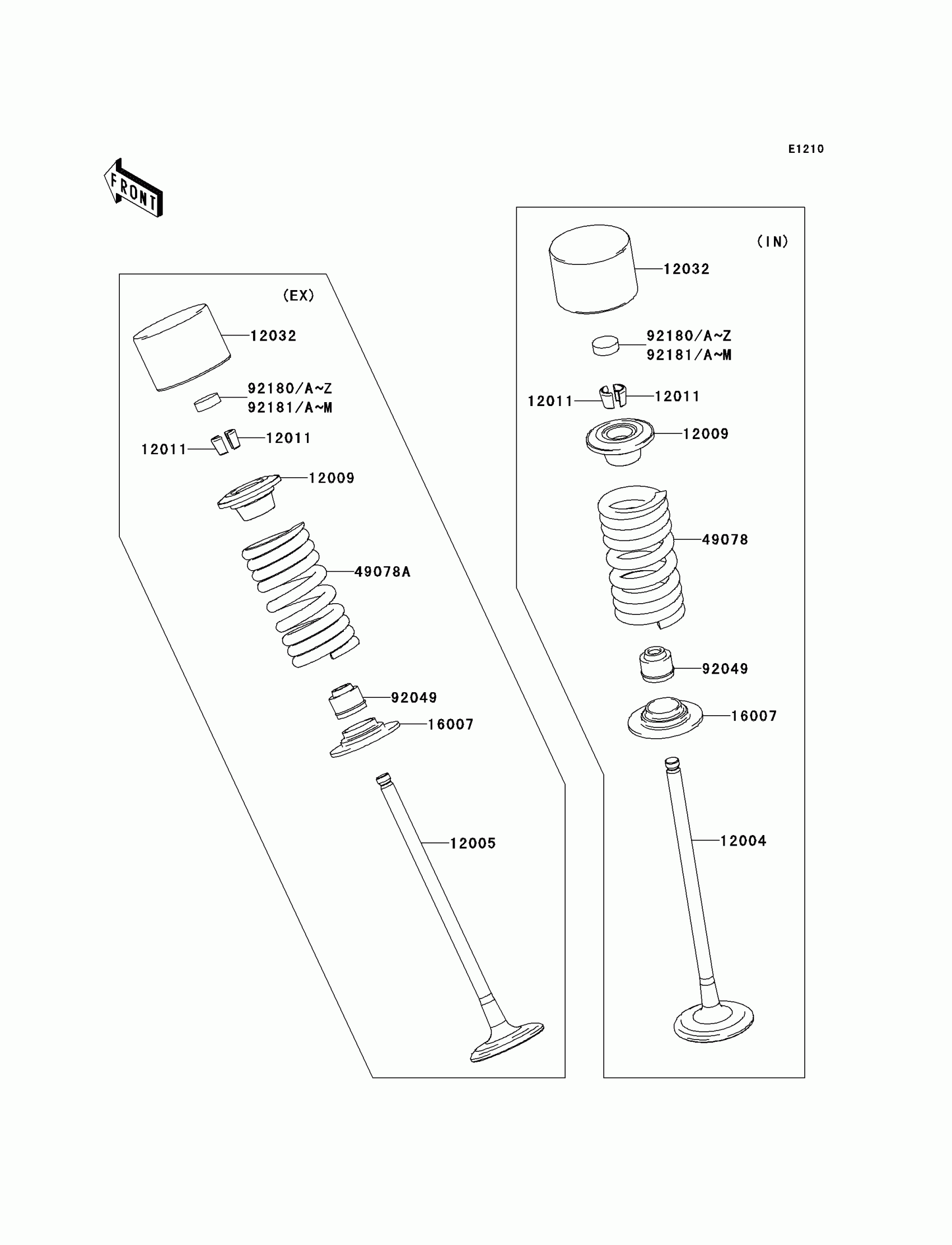

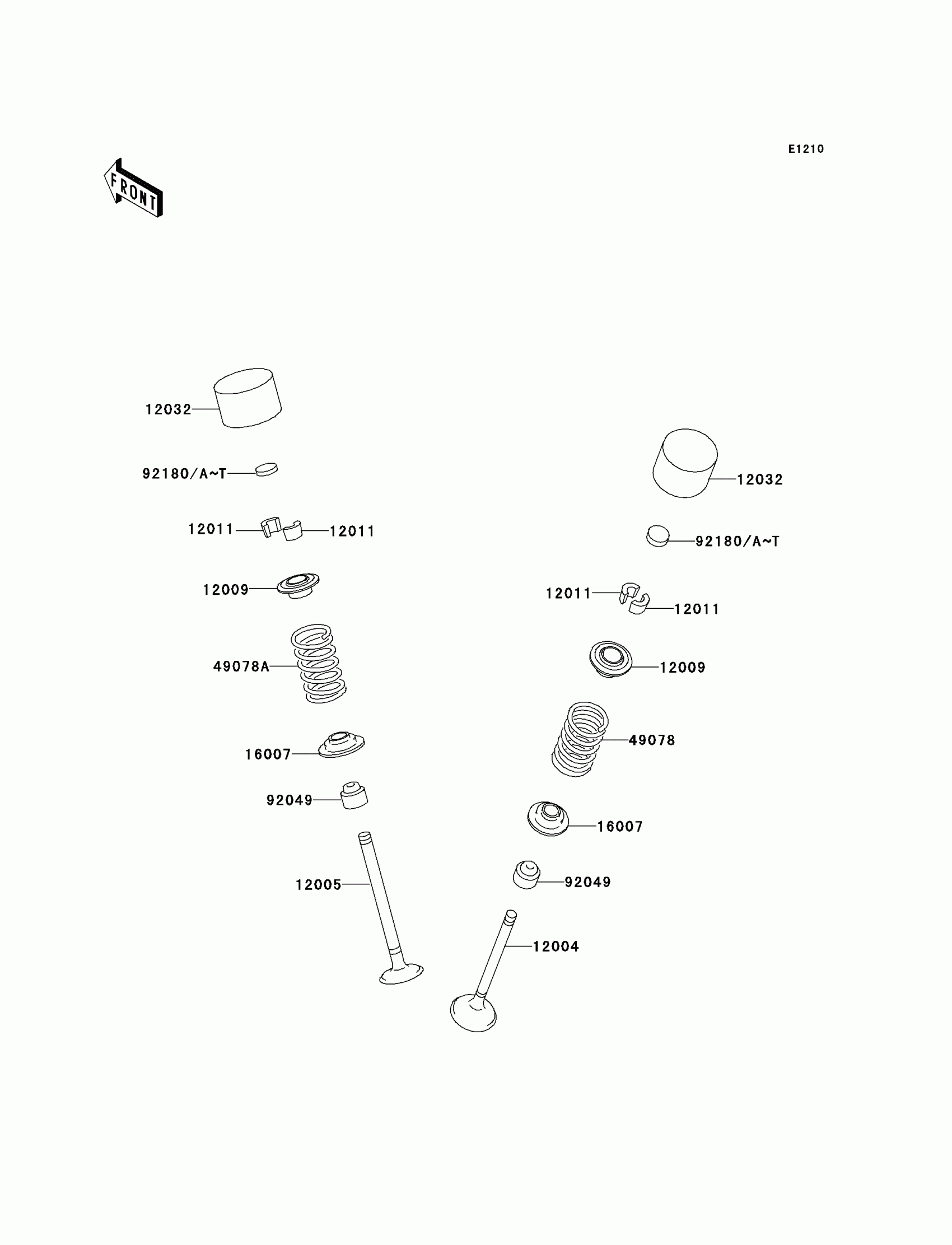

Kawasaki Ninja® ZX™-6RR Valve(s) Diagram
#
12004
VALVE-INTAKE
12004-0016
$50.66
12005
VALVE-EXHAUST
12005-0034
$82.21
12009
RETAINER-VALVE SPRING
12009-0006
$13.75
12011
COLLET
12011-1052
$5.46
12032
TAPPET
12032-0008
$42.21
16007
SEAT-SPRING
16007-1227
$5.74
49078
SPRING-ENGINE VALVE,INTAKE
49078-0012
$18.13
49078A
SPRING-ENGINE VALVE,EXHAUST
49078-0013
$18.13
92049
SEAL-OIL,VALVE GUIDE
92049-1308
$9.33
92180
SHIM,T=1.300
92180-0108
$19.74
92180A
SHIM,T=1.325
92180-0109
Unavailable
92180B
SHIM,T=1.350
92180-0110
Unavailable
92180C
SHIM,T=1.375
92180-0111
Unavailable
92180D
SHIM,T=1.400
92180-0112
Unavailable
92180E
SHIM,T=1.425
92180-0113
Unavailable
92180F
SHIM,T=1.450
92180-0114
Unavailable
92180G
SHIM,T=1.475
92180-0115
Unavailable
92180H
SHIM,T=1.500
92180-0116
Unavailable
92180I
SHIM,T=1.525
92180-0117
Unavailable
92180J
SHIM,T=1.550
92180-0118
Unavailable
92180K
SHIM,T=1.575
92180-0119
Unavailable
92180L
SHIM,T=1.600
92180-0120
Unavailable
92180M
SHIM,T=1.625
92180-0121
Unavailable
92180N
SHIM,T=1.650
92180-0122
Unavailable
92180O
SHIM,T=1.675
92180-0123
Unavailable
92180P
SHIM,T=1.700
92180-0124
Unavailable
92180Q
SHIM,T=1.725
92180-0125
Unavailable
92180R
SHIM,T=1.750
92180-0126
Unavailable
92180S
SHIM,T=1.775
92180-0127
Unavailable
92180T
SHIM,T=1.800
92180-0128
Unavailable
92180U
SHIM,T=1.825
92180-0129
Unavailable
92180V
SHIM,T=1.850
92180-0130
Unavailable
92180W
SHIM,T=1.875
92180-0131
Unavailable
92180X
SHIM,T=1.900
92180-0132
Unavailable
92180Y
SHIM,T=1.925
92180-0133
Unavailable
92180Z
SHIM,T=1.950
92180-0134
Unavailable
92181
SHIM,T=1.975
92180-0135
Unavailable
92181A
SHIM,T=2.000
92180-0136
Unavailable
92181B
SHIM,T=2.025
92180-0137
Unavailable
92181C
SHIM,T=2.050
92180-0138
Unavailable
92181D
SHIM,T=2.075
92180-0139
Unavailable
92181E
SHIM,T=2.100
92180-0140
Unavailable
92181F
SHIM,T=2.125
92180-0141
Unavailable
92181G
SHIM,T=2.150
92180-0142
Unavailable
92181H
SHIM,T=2.175
92180-0143
Unavailable
92181I
SHIM,T=2.200
92180-0144
Unavailable
92181J
SHIM,T=2.225
92180-0145
Unavailable
92181K
SHIM,T=2.250
92180-0146
Unavailable
92181L
SHIM,T=2.275
92180-0147
Unavailable
92181M
SHIM,T=2.300
92180-0148
Unavailable
