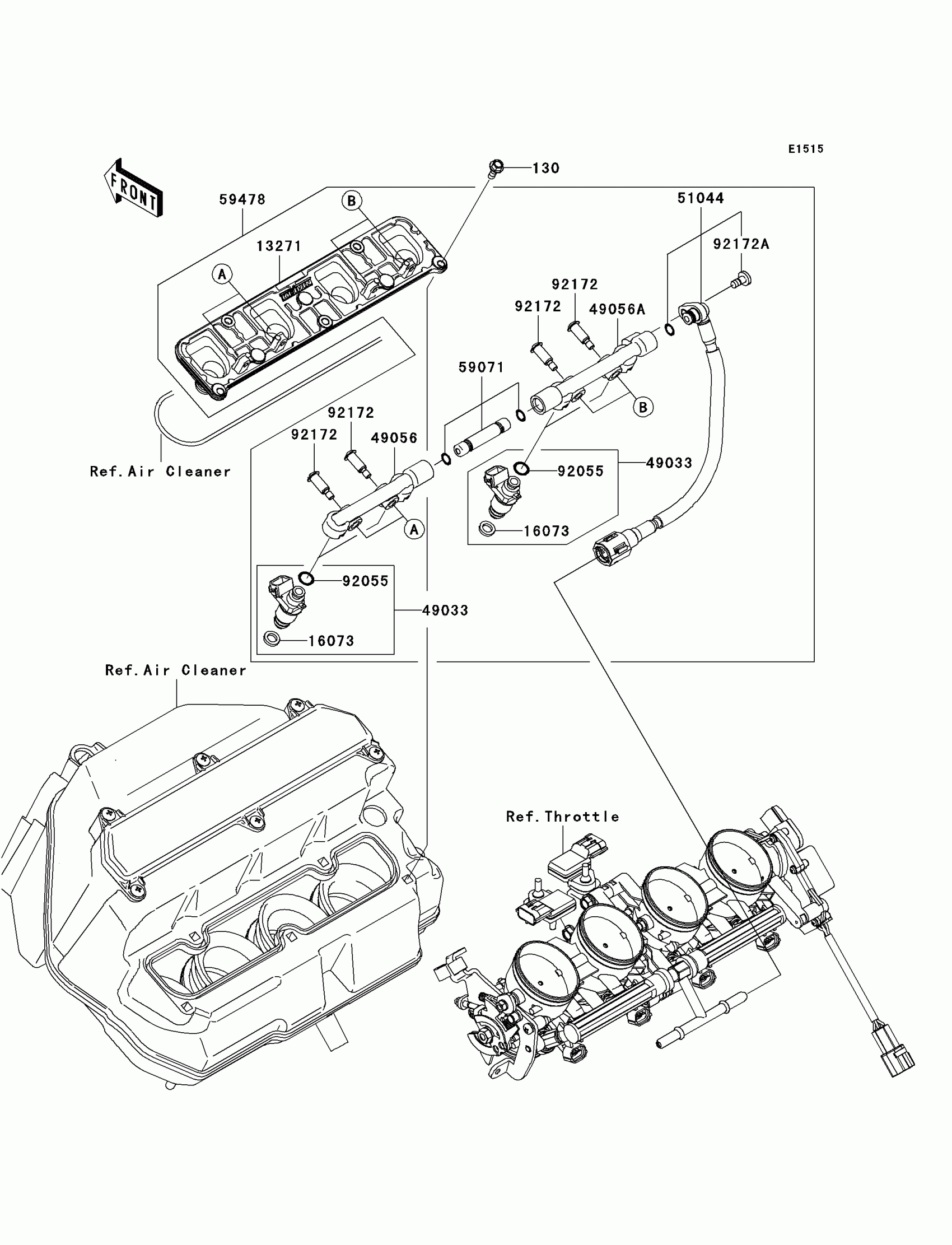

Kawasaki Ninja® ZX™-6RR Top Feed Injecter Diagram

Description

Price

130

BOLT-FLANGED,5X14

130J0514

$3.41

13271

PLATE

13271-0418

$128.10

16073

INSULATOR

16073-0010

$6.61

49033

NOZZLE-INJECTION,SEAL&RING SET

49033-0009

$147.03

49056

PIPE-INJECTION

49056-0009

$116.43

49056A

PIPE-INJECTION

49056-0010

$116.43

51044

TUBE-ASSY

51044-0020

$166.24

59071

JOINT

59071-0030

$38.19

59478

NOZZLE-ASSY

59478-0003

$1,047.58

92055

RING-O

92055-0077

$6.34

92172

SCREW,PIPE INJECTION

92172-0064

$2.80

92172A

SCREW

92172-0204

$8.74
