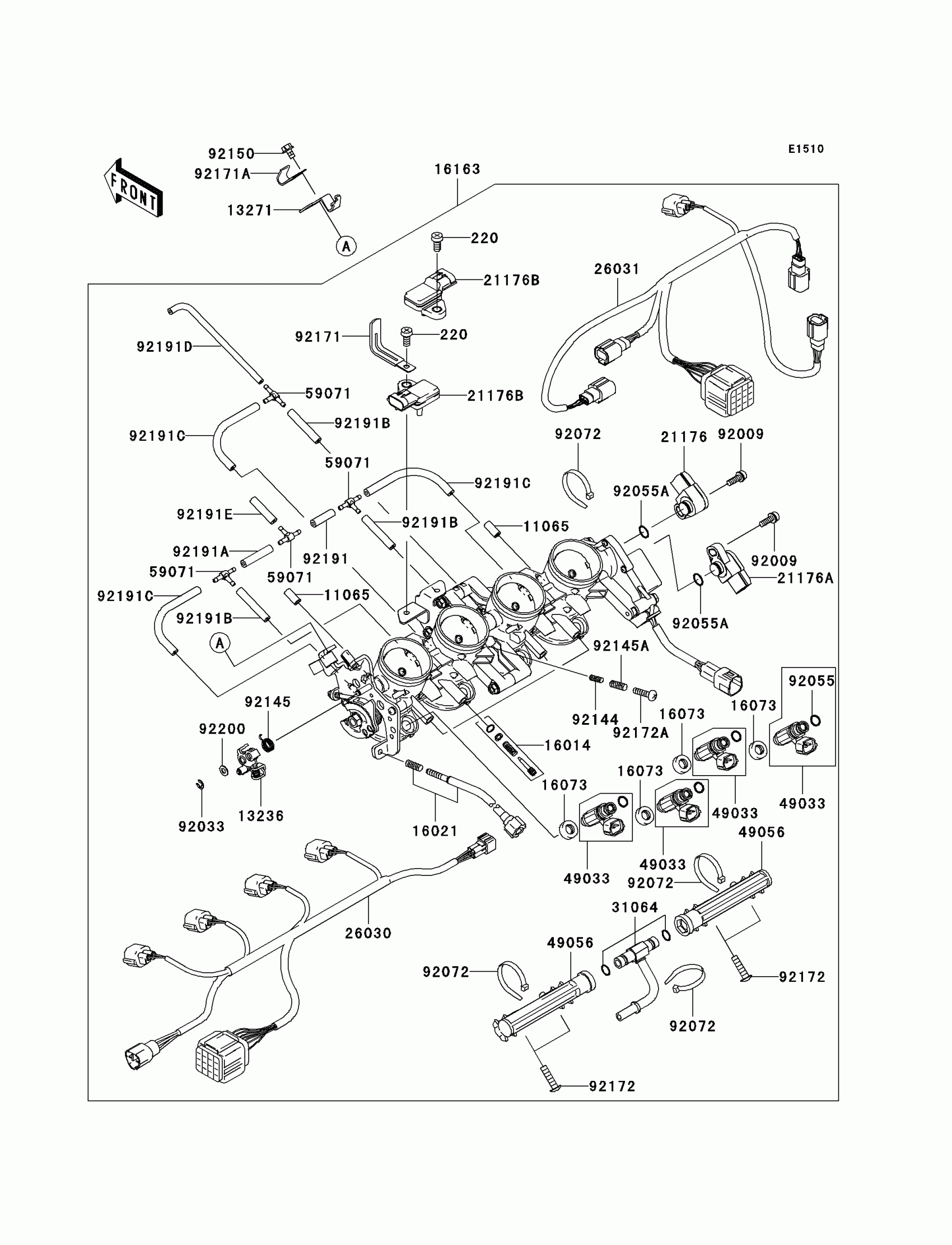

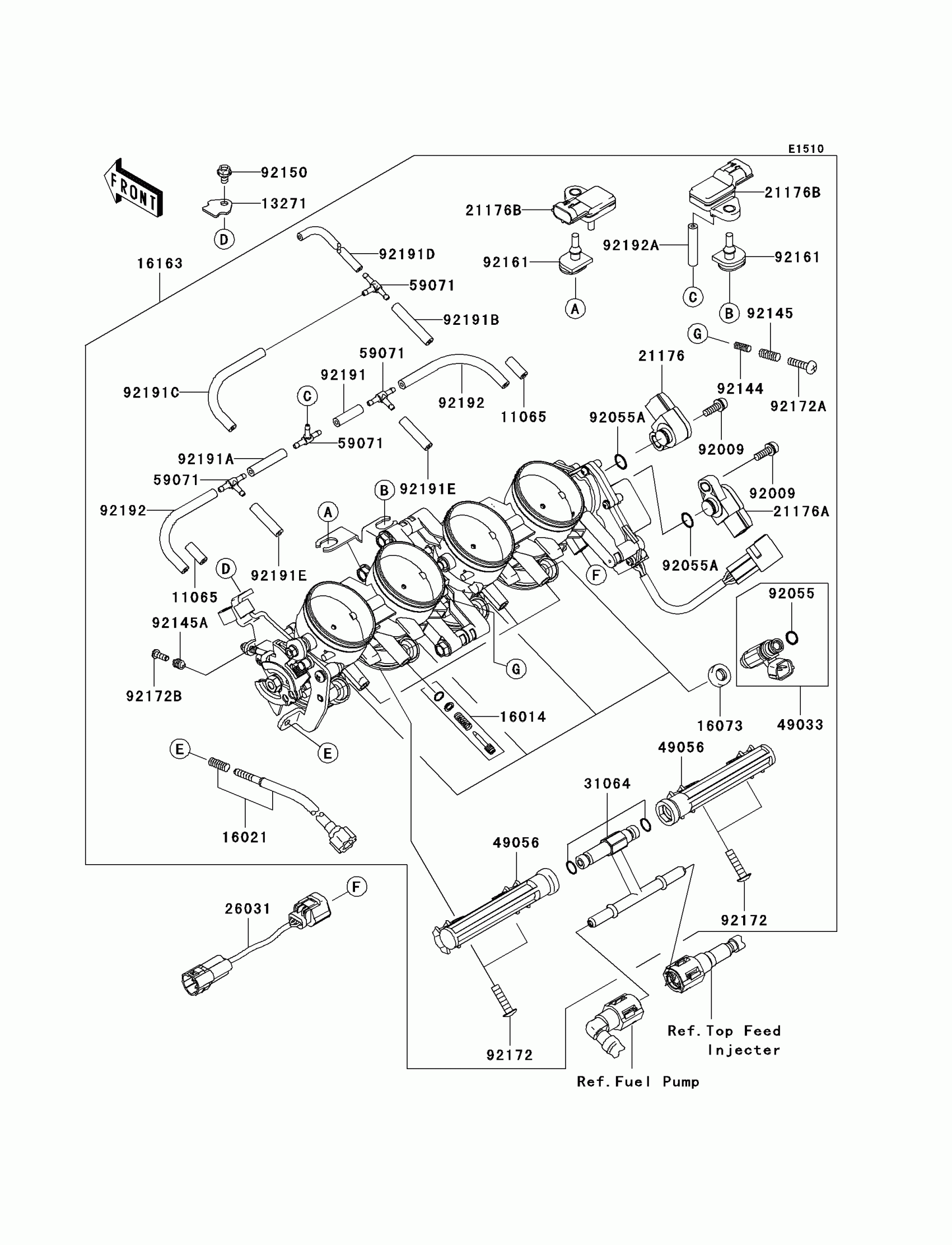

Kawasaki Ninja® ZX™-6RR Throttle Diagram

#

Description
Price

11065

CAP

11065-0018

$6.12

13271

PLATE

13271-0559

$3.35

16014

SCREW-PILOT AIR

16014-0002

$25.16

16021

SCREW-THROTTLE STOP

16021-0010

$126.29

16073

INSULATOR

16073-3707

$6.18

16163

THROTTLE-ASSY

16163-0056

$1,931.61

21176

SENSOR,TPS

21176-0001

$228.63

21176A

SENSOR,TPS

21176-0002

$217.59

21176B

SENSOR,PRESSURE

21176-0058

$141.24

26031

HARNESS

26031-0288

$35.56

31064

PIPE-COMP,FUEL

31064-0023

$74.50

49033

NOZZLE-INJECTION

49033-0006

$150.45

49056

PIPE-INJECTION

49056-0001

$103.85

59071

JOINT,3WAY,T

59071-3752

$10.19

92009

SCREW,THROTTLE SENSOR

92009-1981

$2.41

92055

RING-O,INJECTION NOZZLE

92055-1622

$1.95

92055A

RING-O

92055-1671

$3.73

92144

SPRING

92144-1451

$9.58

92145

SPRING,THROTTLE SYNCRO

92145-0055

$16.26

92145A

SPRING

92145-0294

$17.78

92150

BOLT,5X8

92150-1406

$3.94

92161

DAMPER

92161-0041

$5.00

92172

SCREW,PIPE INJECTION

92172-0064

$2.80

92172A

SCREW,THROTTLE SYNCRO

92172-0065

$3.04

92172B

SCREW

92172-0129

$5.59

92191

TUBE,3X7X25

92191-0020

$2.39

92191A

TUBE,3X7X35

92191-0021

$2.83

92191B

TUBE,3X7X40

92191-0022

$3.23

92191C

TUBE,3X7X100

92191-0023

$4.14

92191D

TUBE,3X7X153

92191-0024

$6.86

92191E

TUBE,3X7X30

92191-0025

$2.43

92192

TUBE,3X7X95

92192-0018

$4.22

92192A

TUBE,(3X7,3.5X7.5)X35

92192-0192

$2.87
