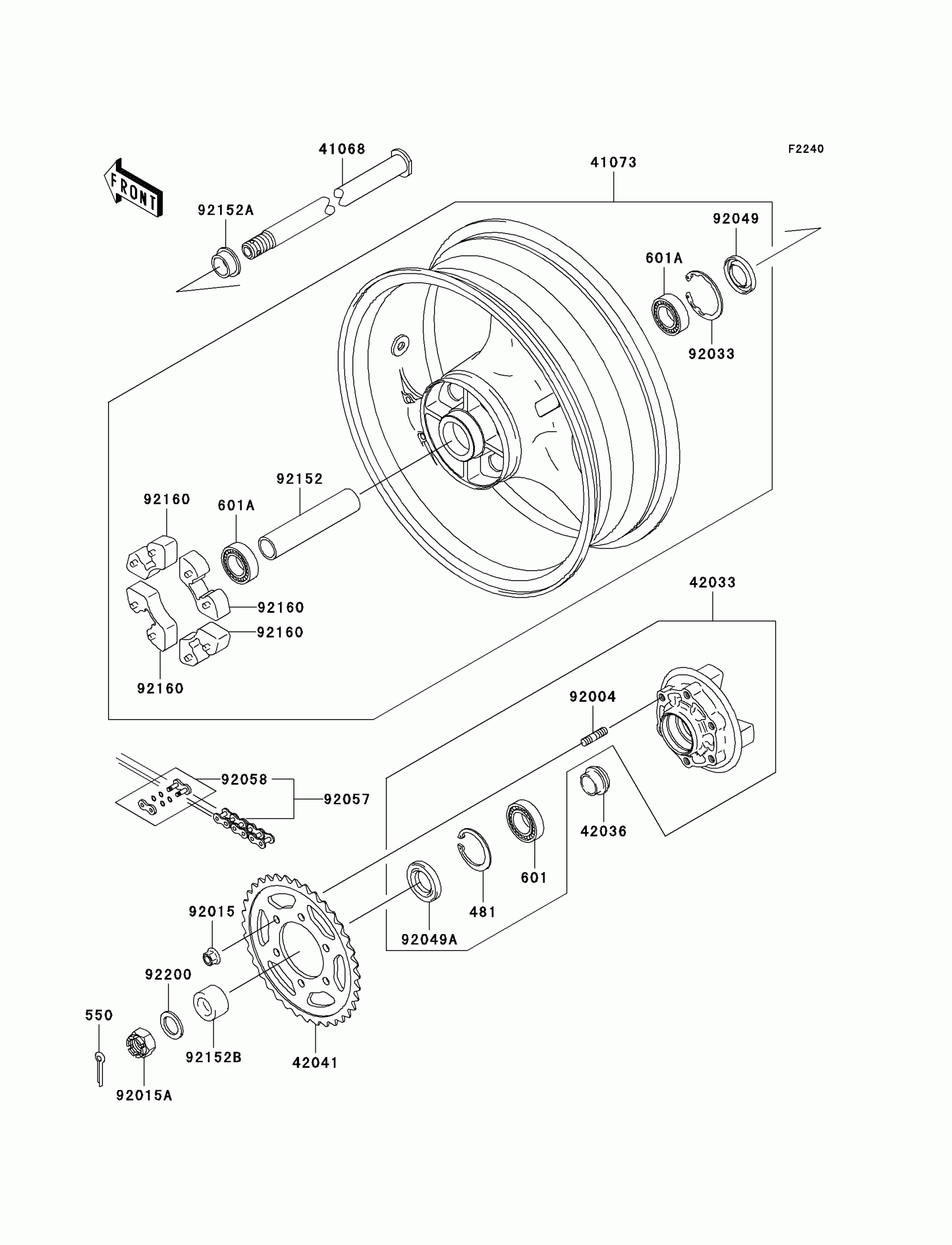

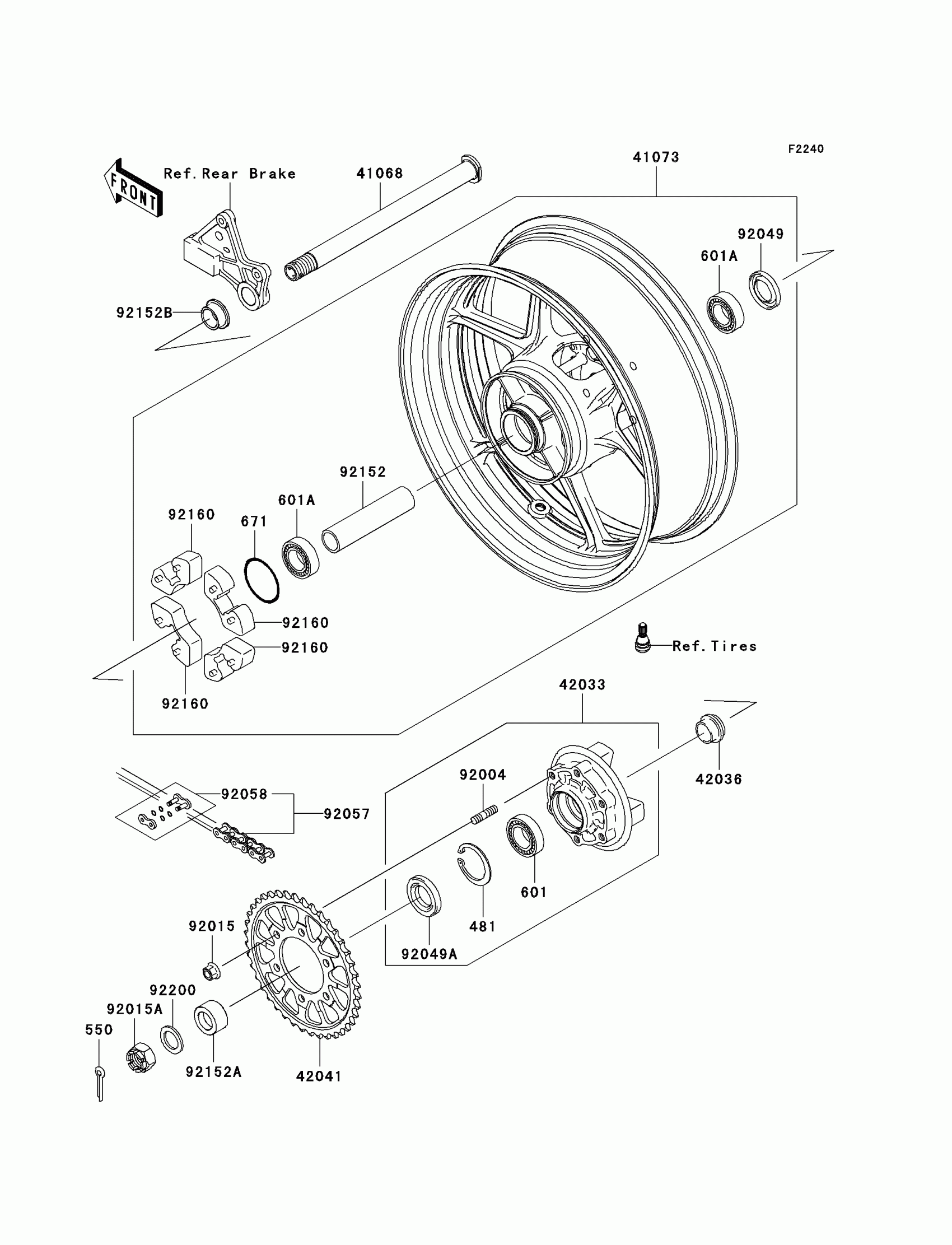

Kawasaki Ninja® ZX™-6RR Rear Wheel/Chain Diagram

Description

Price

481

CIRCLIP

481J5500

Unavailable

550

PIN-COTTER,4.0X40

550D4040

$1.05

601

BEARING-BALL,#6006G

601B6006G

$25.77

601A

BEARING-BALL

601B6205UU

$26.20

41068

AXLE,RR

41068-0005

$113.19

41073

WHEEL-ASSY,RR,BLACK

41073-1688-R2

$1,165.00

42033

COUPLING-ASSY,RR HUB

42033-1213

$253.53

42036

SLEEVE,RR HUB,L=22

42036-1279

$25.74

42041

SPROCKET-HUB,40T

42041-1556

$75.23

92004

STUD,10X19

92004-1275

Unavailable

92015

NUT,FLANGED,10MM

92015-1335

$1.85

92015A

NUT,CASTLE,24MM

92015-1844

$10.34

92033

RING-SNAP,52MM

92033-1043

$6.15

92049

SEAL-OIL,RR HUB

92049-1375

$16.11

92049A

SEAL-OIL,PJN 40 55 8

92049-1376

$13.54

92057

CHAIN,DRIVE,EK520MVXL1X108L

92057-0043

Unavailable

92058

JOINT-CHAIN,DRIVE

92058-0002

$11.98

92152

COLLAR,RR HUB,L=152.5

92152-1080

$34.13

92152A

COLLAR,RR AXLE,RH,L=16

92152-1246

$23.63

92152B

COLLAR,RR AXLE,LH,L=23.5

92152-1254

$25.12

92160

DAMPER,SHOCK,RR HUB

92160-1485

$20.75

92200

WASHER,25.5X38X3.2

92200-1479

Unavailable
