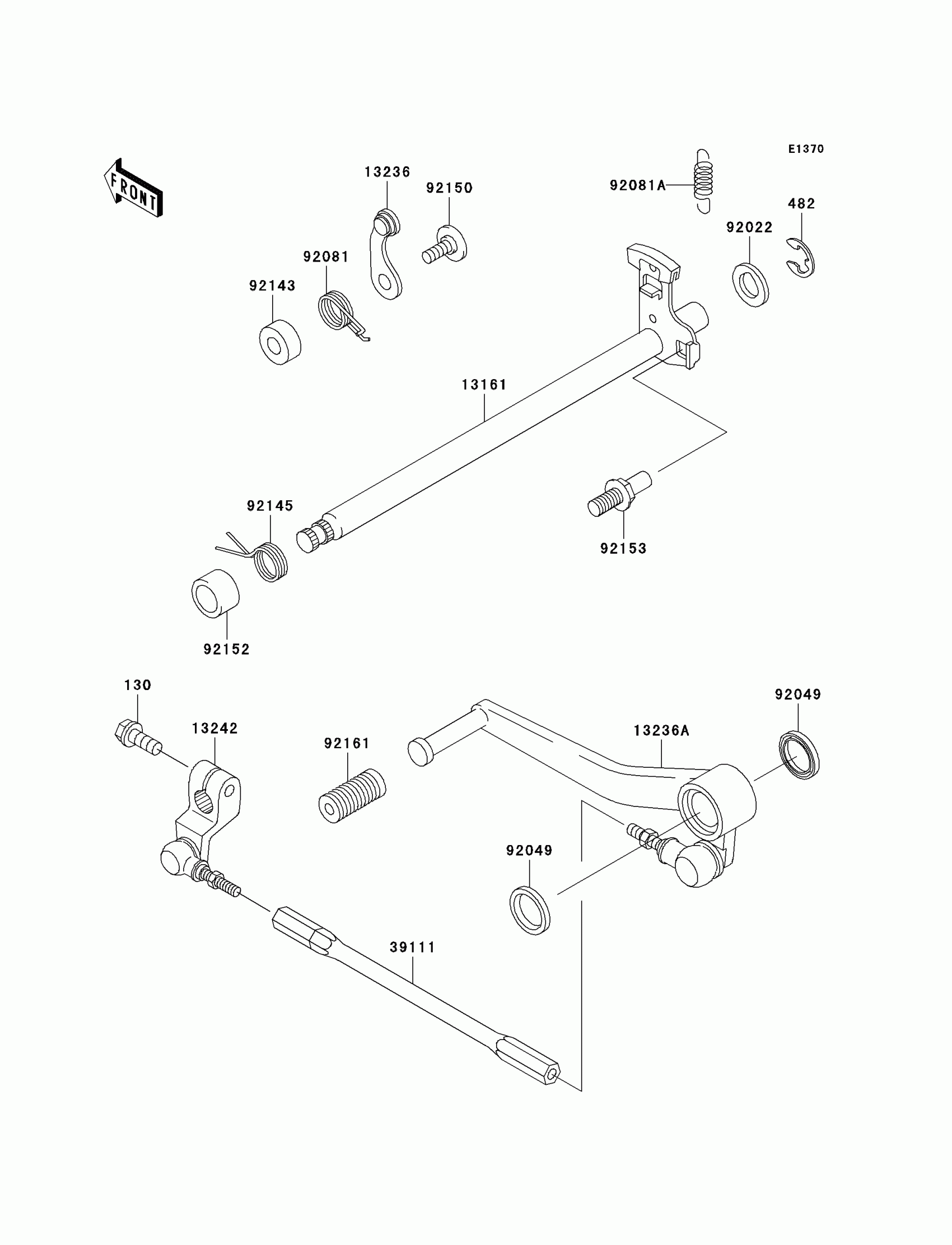

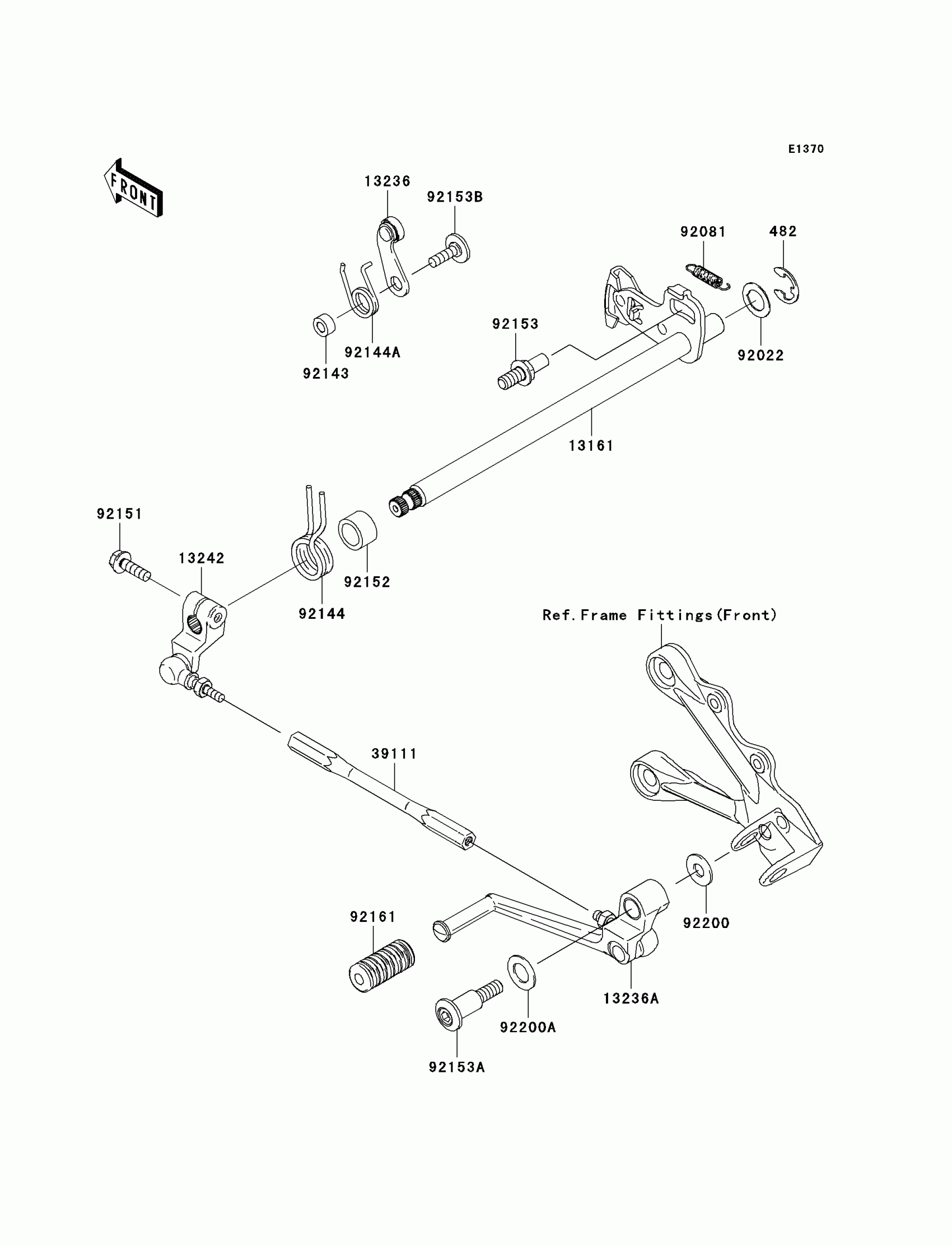

Kawasaki Ninja® ZX™-6RR Gear Change Mechanism Diagram

Description

Price

482

CIRCLIP-TYPE-E,12MM

482J0200

$3.92

13161

LEVER-COMP-CHANGE SHAFT

13161-0021

$102.40

13236

LEVER-COMP

13236-0068

$12.86

13236A

LEVER-COMP,CHANGE PEDAL

13236-0078

$110.67

13242

LEVER-ASSY-CHANGE,BOSS

13242-1348

$53.31

39111

ROD-TIE

39111-1164

$93.30

92022

WASHER,CHANGE SHAFT

92022-1628

$6.57

92081

SPRING,PAWL RETURN

92081-1708

$6.51

92143

COLLAR

92143-1595

$9.51

92144

SPRING,CHANGE PEDAL RETURN

92144-1345

$17.44

92144A

SPRING,GEAR POSITION

92144-1523

$8.79

92151

BOLT,FLANGED,6X20

92151-1226

$2.46

92152

COLLAR,14.2X19.9X12.0

92152-1383

$4.18

92153

BOLT,RETURN SPRING

92153-0421

$9.07

92153A

BOLT,8X41

92153-0880

$10.37

92153B

BOLT,6X20

92153-0896

$6.43

92161

DAMPER,CHANGE PEDAL

92161-1300

$6.18

92200

WASHER,8.5X20X1.5

92200-0198

$3.35

92200A

WASHER,12.5X22X1.2

92200-0199

$3.35
