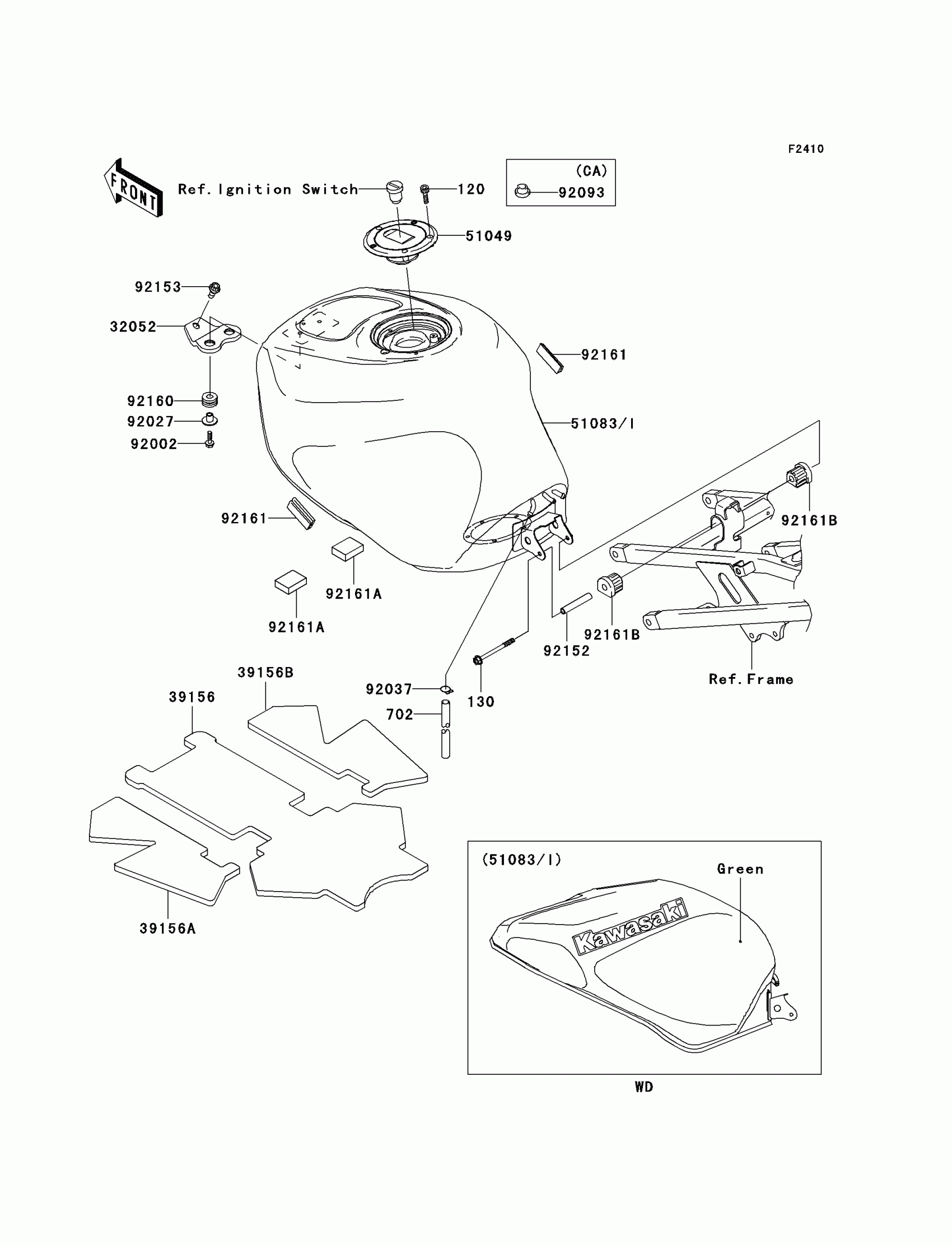

Kawasaki Ninja® ZX™-6RR Fuel Tank Diagram

Description

Price

120

BOLT-SOCKET,5X16

120S0516

Unavailable

130

BOLT-FLANGED,6X70

130J0670

Unavailable

702

TUBE-RUBBER,6X850

702A06850

$13.73

32052

BRACKET-TANK,FR

32052-1572

Unavailable

39156

PAD,FUEL TANK,CNT

39156-0015

$36.93

39156A

PAD,FUEL TANK,LH

39156-0016

$17.59

39156B

PAD,FUEL TANK,RH

39156-0017

$17.59

51049

CAP-TANK,FUEL

51049-1127

$105.97

92002

BOLT,6X20

92002-1237

$3.29

92027

COLLAR,L=13.1

92027-251

Unavailable

92037

CLAMP,TUBE

92037-010

$2.99

92152

COLLAR,6.8X10X60

92152-1182

$3.69

92153

BOLT,SOCKET,8X16

92153-0327

$4.72

92160

DAMPER

92160-1162

$3.81

92161

DAMPER,FUEL TANK

92161-0057

Unavailable

92161A

DAMPER

92161-0066

Unavailable

92161B

DAMPER,FUEL TANK,RR

92161-1330

$4.42

51083

TANK-COMP-FUEL,L.GREEN

51083-5001-7F

$1,225.35

51083I

TANK-COMP-FUEL,L.GREEN

51083-5012-7F

$1,225.35

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93
