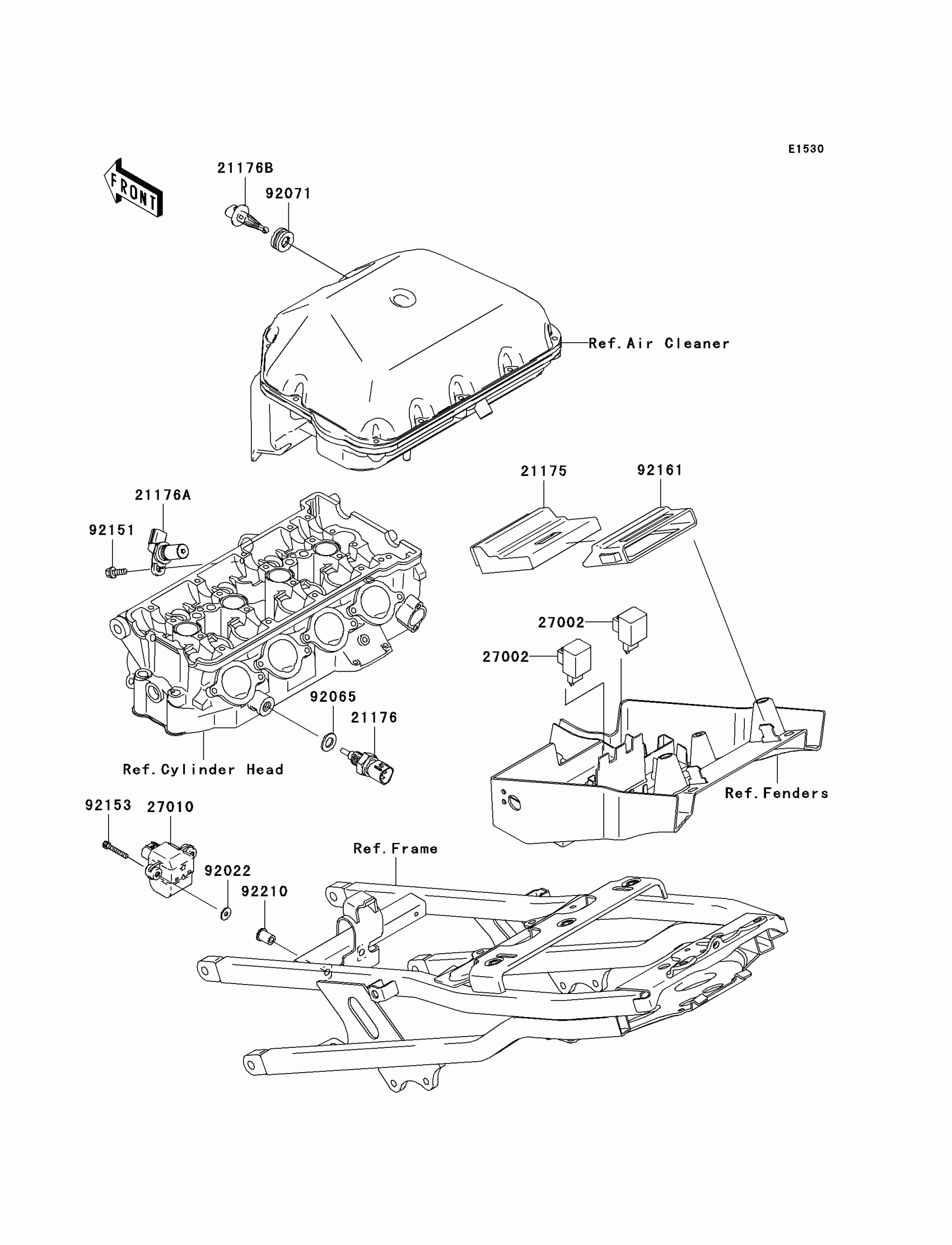

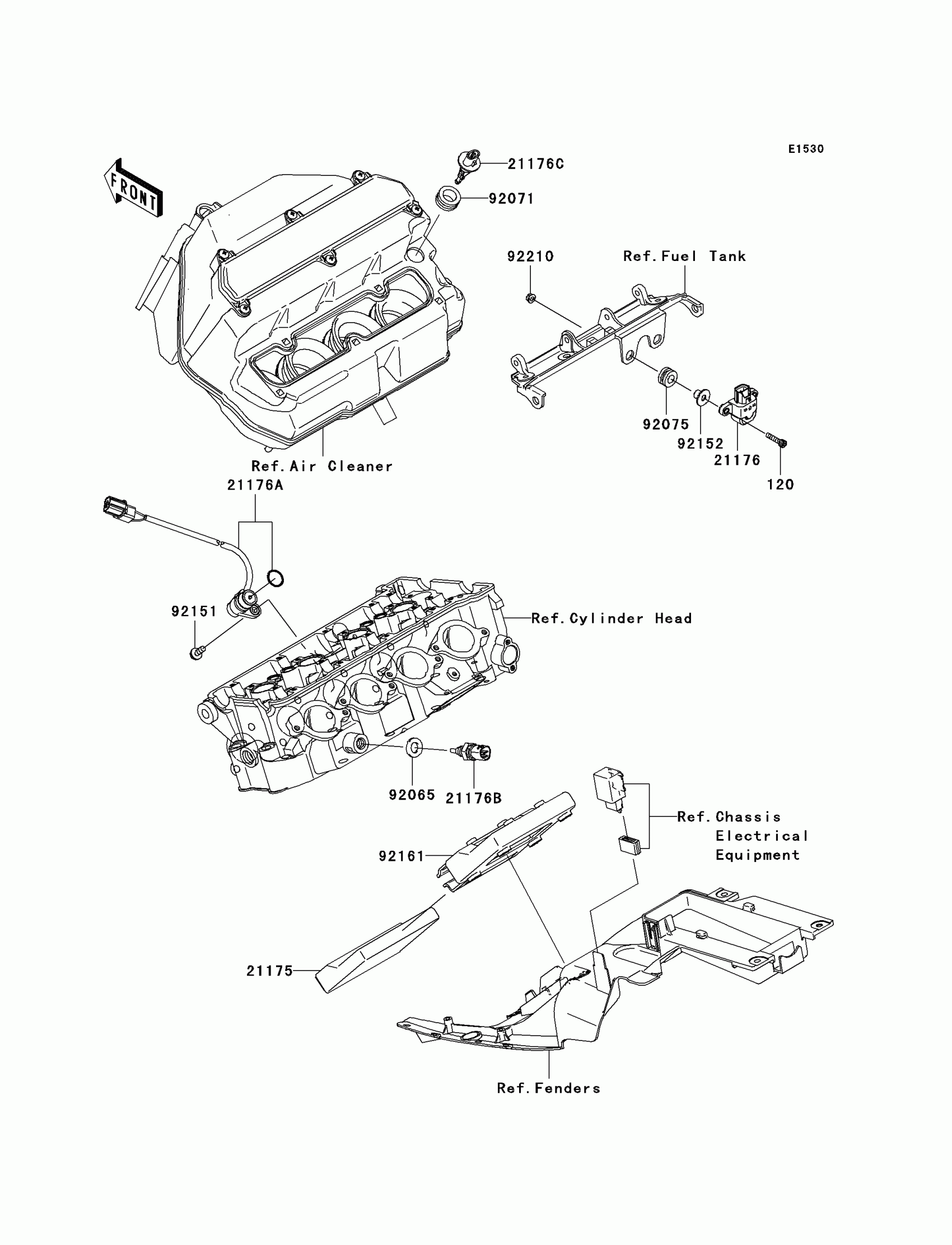

Kawasaki Ninja® ZX™-6RR Fuel Injection Diagram

Description

Price

21175

CONTROL UNIT-ELECTRONIC

21175-0004

$1,423.17

21176

SENSOR,WATER TEMP

21176-1120

$62.85

21176A

SENSOR,CAM SENSOR

21176-1121

Unavailable

21176B

SENSOR,AIR TEMP

21176-2106

$19.69

27002

RELAY-ASSY

27002-1062

$40.25

27010

SWITCH

27010-0001

$228.32

92022

WASHER,4.3X12.5X1

92022-1949

$3.17

92065

GASKET,12X22X2

92065-097

$0.66

92071

GROMMET

92071-2140

$3.28

92151

BOLT,FLANGED,6X16

92151-1774

Unavailable

92153

BOLT,4X25

92153-0336

$1.59

92161

DAMPER

92161-1314

$16.53

92210

NUT,4MM

92210-0067

$2.29
