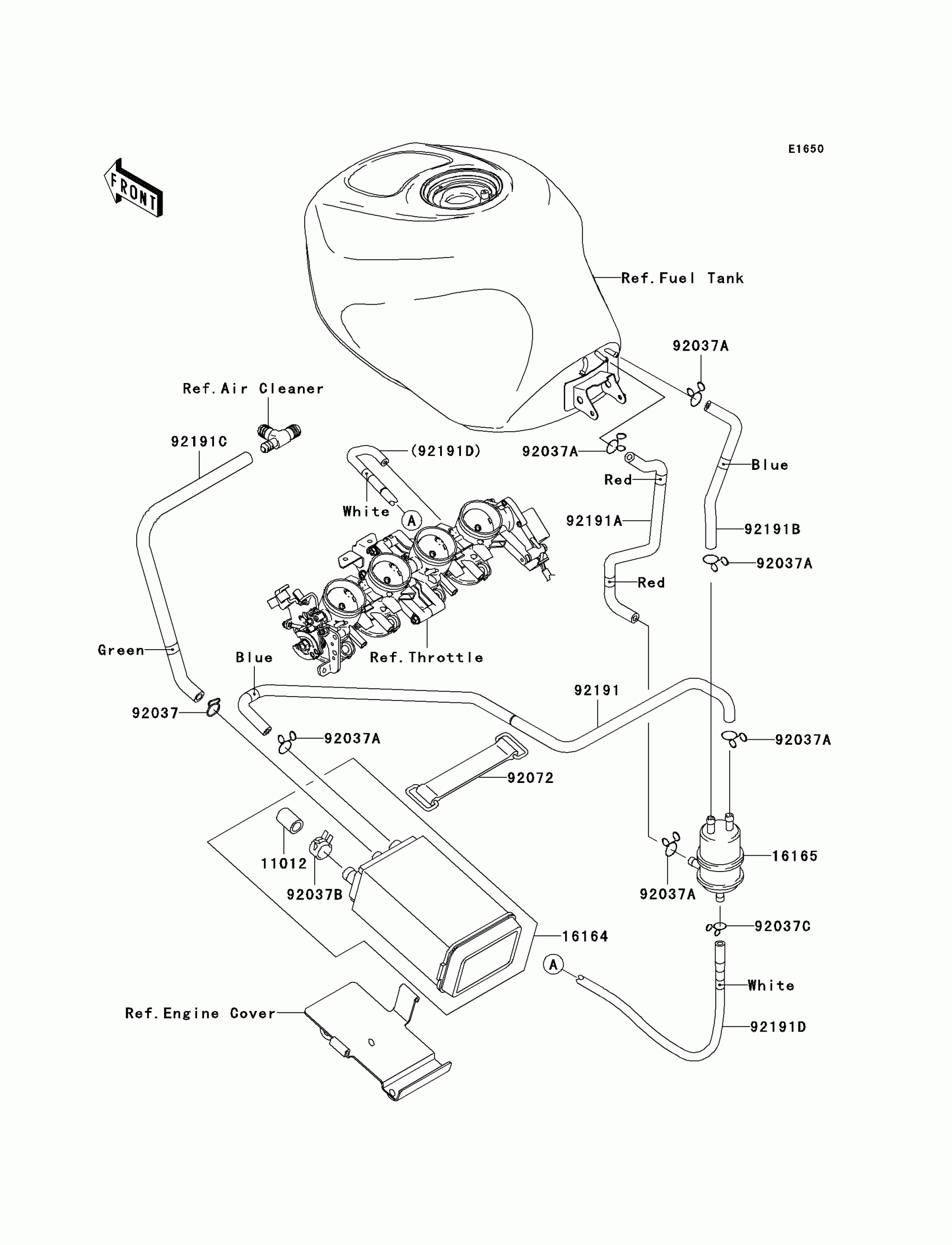

Kawasaki Ninja® ZX™-6RR Fuel Evaporative System(CA) Diagram

Description

Price

11012

CAP,CANISTER

11012-1388

$8.51

16164

CANISTER

16164-1054

$130.07

16165

SEPARATOR

16165-1070

$107.64

92037

CLAMP-HOSE

92037-1104

$1.45

92037A

CLAMP,TUBE

92037-147

$7.34

92037B

CLAMP,CANISTER

92037-1512

$6.57

92037C

CLAMP

92037-1712

$5.00

92072

BAND

92072-1384

$13.75

92191

TUBE,SEPARTER-CANISTER,BLUE

92191-0016

$32.12

92191A

TUBE,SEPARATER-TANK,RED

92191-1807

$19.41

92191B

TUBE,TANK-SEPARATER,BLUE

92191-1808

$10.75

92191C

TUBE,CANISTER-FITTING,GREEN

92191-1810

$18.52

92191D

TUBE,SEPARATER-THROTTLE,WHITE

92191-1811

$39.37
