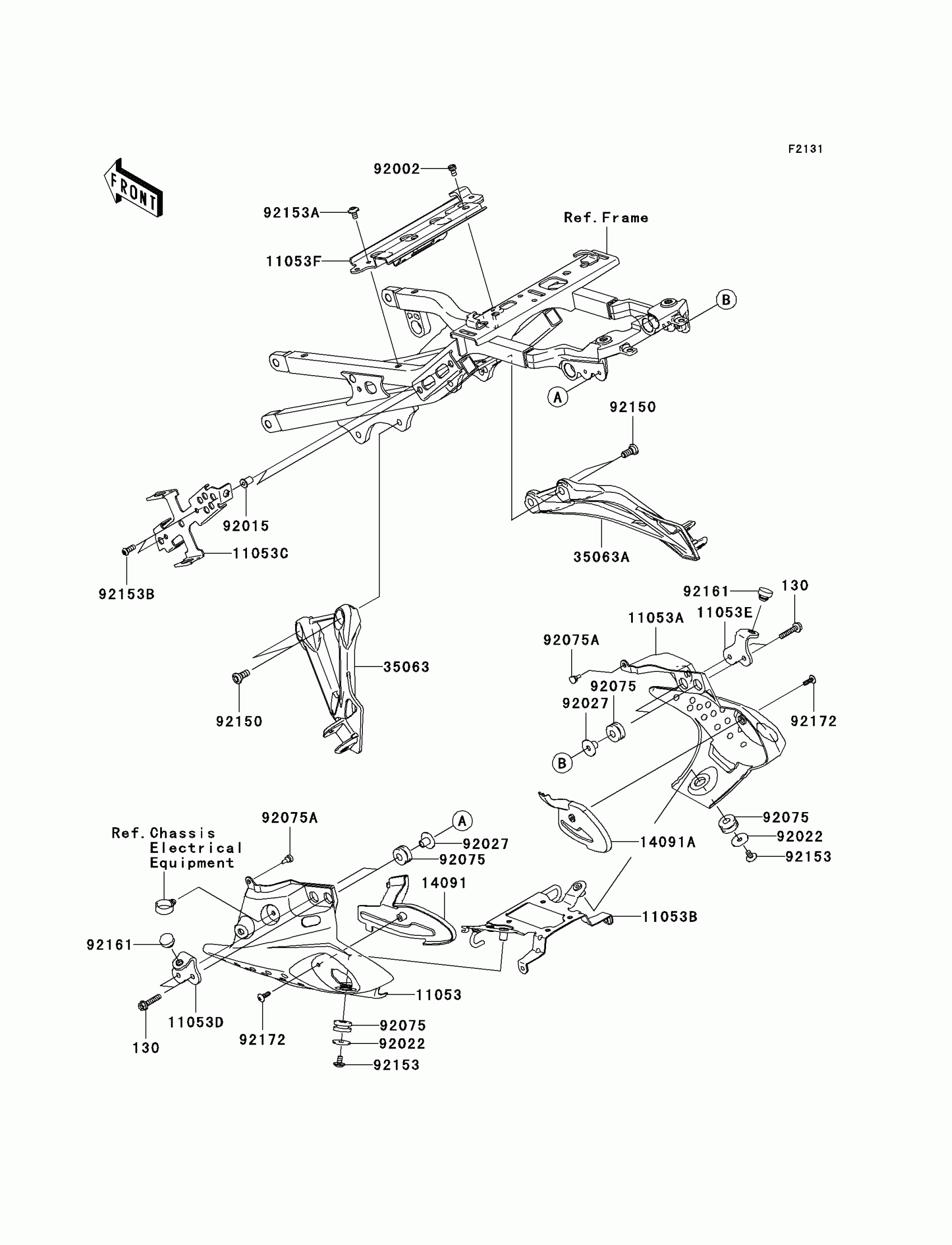

Kawasaki Ninja® ZX™-6RR Frame Fittings(Rear) Diagram

Description

Price

130

BOLT-FLANGED,6X30

130L0630

$4.04

11053

BRACKET,REAR SIGNAL LAMP,LH

11053-1404

$40.58

11053A

BRACKET,REAR SIGNAL LAMP,RH

11053-1405

$40.58

11053B

BRACKET,REAR FLAP

11053-1538

$64.36

11053C

BRACKET,RELAY BOX

11053-1664

$42.27

11053D

BRACKET,LH

11053-1701

$20.72

11053E

BRACKET,RH

11053-1702

$22.76

11053F

BRACKET,FRONT SEAT

11053-1721

$118.50

14091

COVER,REAR SIGNAL LAMP,LH

14091-0362

$11.48

14091A

COVER,REAR SIGNAL LAMP,RH

14091-0363

$11.48

35063

STAY,RR,LH

35063-0144

$147.46

35063A

STAY,RR,RH

35063-0145

$147.46

92002

BOLT,SOCKET,6X14

92002-1175

$5.24

92015

NUT,WELL,5MM

92015-1757

$7.29

92022

WASHER,7X24X1.6

92022-1160

$3.92

92027

COLLAR,L=13.1,BLACK

92027-1450

$6.22

92075

DAMPER,10X24X12

92075-1690

$5.00

92075A

DAMPER,6X10X15

92075-1808

$1.39

92150

BOLT,SOCKET,8X20

92150-1760

$6.57

92153

BOLT,SOCKET,6X10

92153-0410

$2.80

92153A

BOLT,6X18

92153-0816

$2.15

92153B

BOLT,SOCKET,5X16

92153-1244

$2.41

92161

DAMPER

92161-0046

$9.43

92172

SCREW,TAPPING,5X16

92172-0175

$1.78
