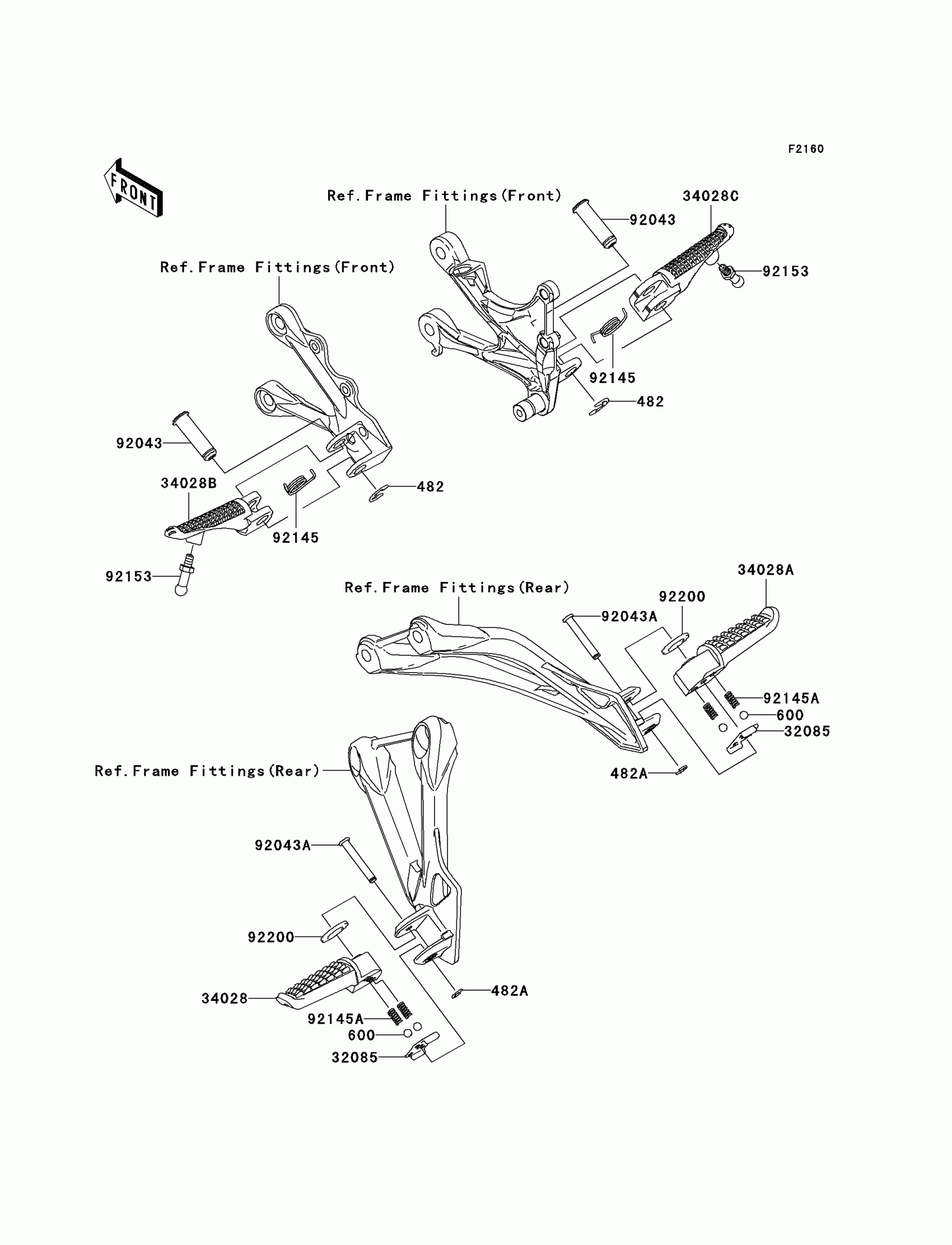

Kawasaki Ninja® ZX™-6RR Footrests Diagram

Description

Price

482

CIRCLIP-TYPE-E,10MM

482L0100

$0.73

482A

CIRCLIP-TYPE-E,5MM

482L5000

$1.34

600

BALL-STEEL,1/4

600A0800

$0.62

32085

STOPPER,REAR STEP

32085-0047

$5.57

34028

STEP,RR,LH

34028-0004

$72.01

34028A

STEP,RR,RH

34028-0005

$72.01

34028B

STEP,FR,LH

34028-0029

$91.06

34028C

STEP,FR,RH

34028-0030

$91.06

92043

PIN,12X36.5

92043-0028

$8.86

92043A

PIN,6X40

92043-1595

$2.34

92145

SPRING,STEP RETURN

92145-0283

$8.16

92145A

SPRING

92145-1319

$1.81

92153

BOLT,BANK SENSOR

92153-0303

$12.76

92200

WASHER,16X26X2.3

92200-0043

$7.65
