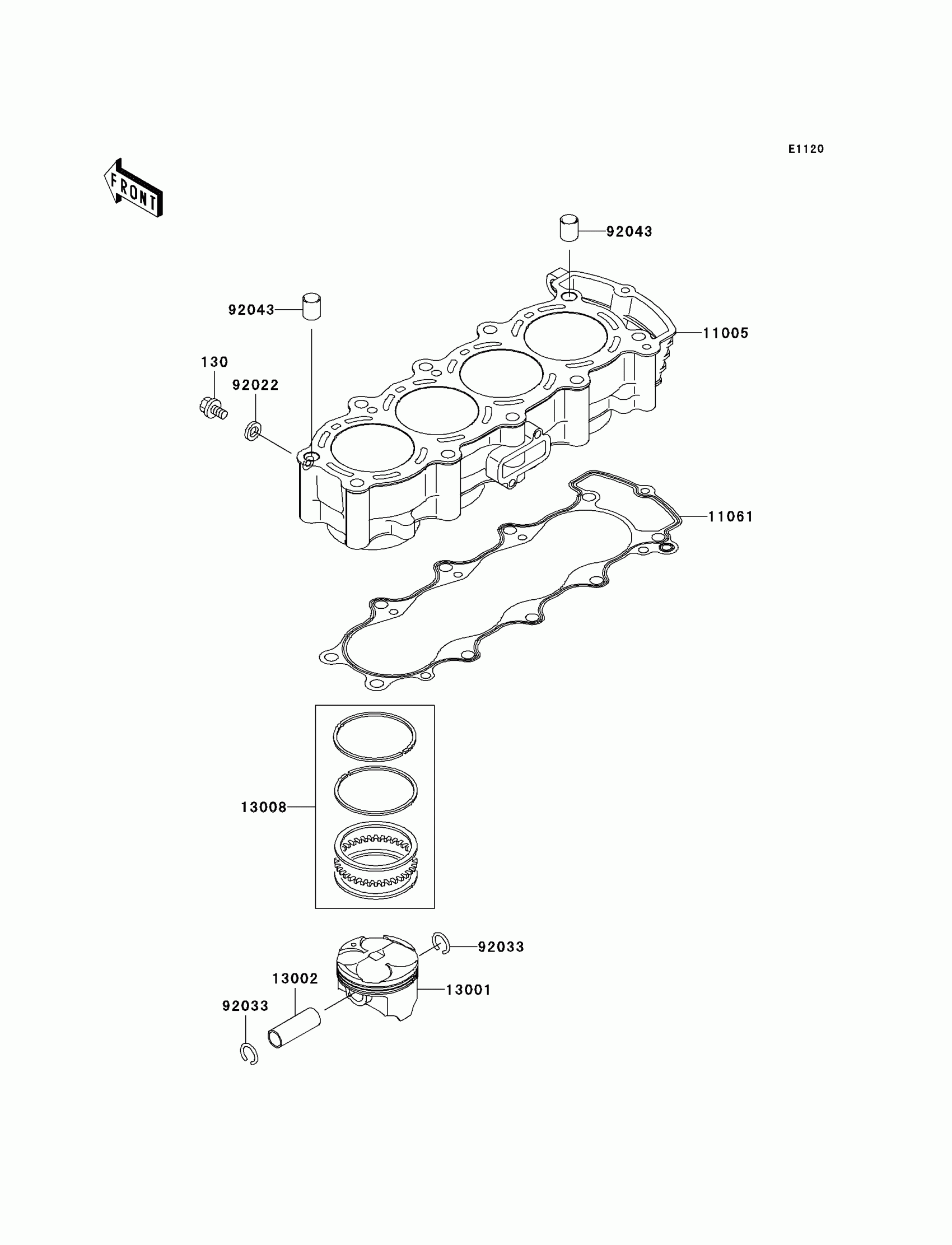

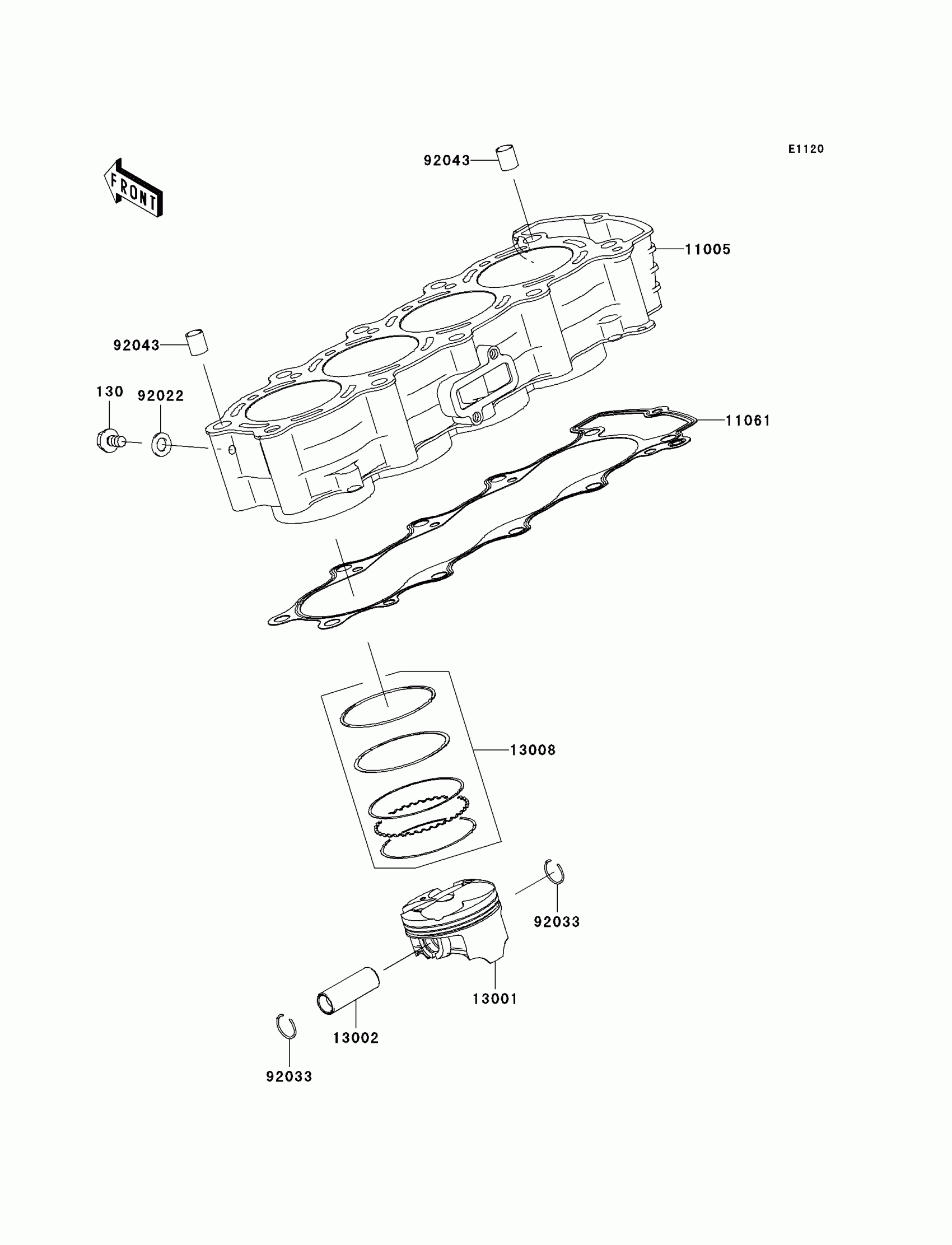

Kawasaki Ninja® ZX™-6RR Cylinder/Piston(s) Diagram

#

Description
Price

130

BOLT-FLANGED

130J0610

$2.33

11005

CYLINDER-ENGINE

11005-0012

$1,343.78

11061

GASKET,CYLINDER BASE

11061-0041

$41.96

13001

PISTON-ENGINE

13001-1657

$103.54

13002

PIN-PISTON

13002-1128

$31.78

13008

RING-SET-PISTON

13008-1216

$50.37

92022

WASHER,6.2X11X1

92022-304

$3.65

92033

RING-SNAP,PISTON PIN

92033-1161

$3.89

92043

PIN,10.1X12X14

92043-4009

$6.22
