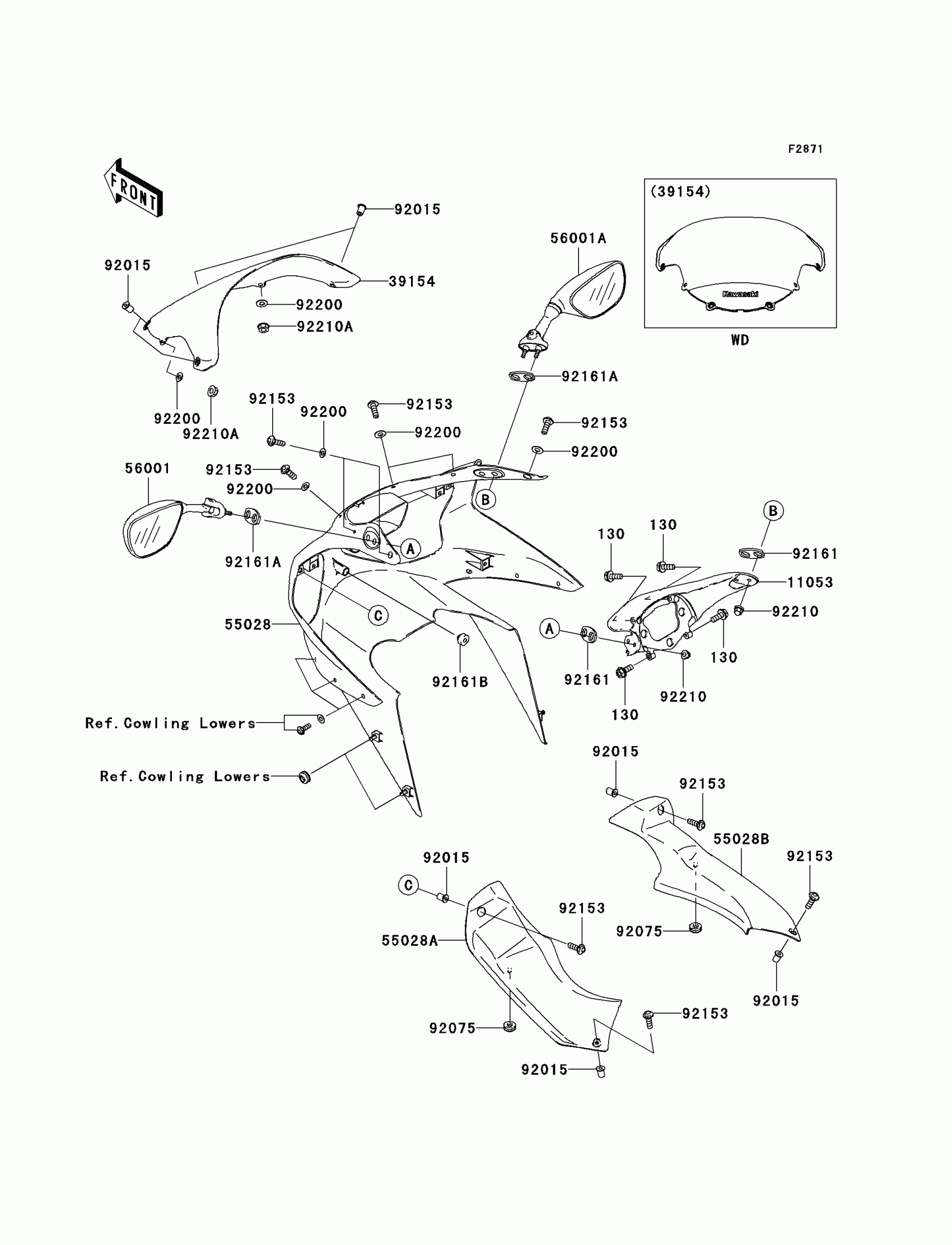

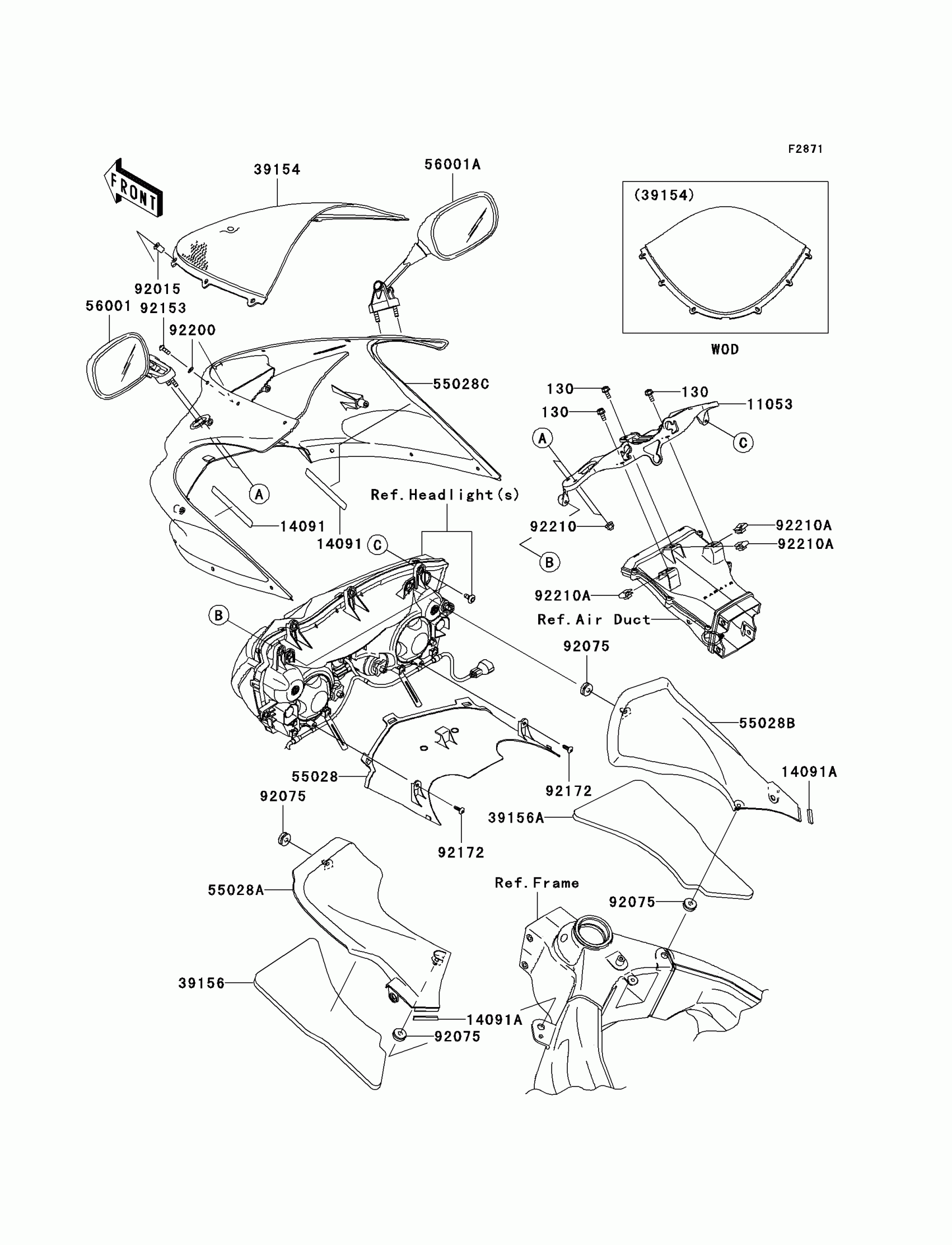

Kawasaki Ninja® ZX™-6RR Cowling Diagram

Description

Price

130

BOLT-FLANGED,6X16

130L0616

$1.92

11053

BRACKET,MIRROR&METER

11053-1289

$129.71

14091

COVER,UPP COWLING

14091-0435

$4.68

14091A

COVER

14091-0456

$3.29

39154

WINDSHIELD

39154-0008

$253.37

39156

PAD,INNER COWLING,LH

39156-0077

$13.24

39156A

PAD,INNER COWLING,RH

39156-0078

$13.24

55028

COWLING,FR,CNT

55028-0032

$48.77

55028A

COWLING,INNER,LH

55028-0035

$84.56

55028B

COWLING,INNER,RH

55028-0036

$84.56

55028C

COWLING,UPP,L.GREEN

55028-0075-777

$845.44

56001

MIRROR-ASSY,LH

56001-0039

$128.57

56001A

MIRROR-ASSY,RH

56001-0040

$128.57

92015

NUT,WELL,5MM

92015-1757

$7.29

92075

DAMPER

92075-1067

$4.69

92153

BOLT,SOCKET,5X16

92153-1244

$2.41

92172

SCREW,TAPPING,5X16

92172-0175

$1.78

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.86

92210

NUT,CAP,6MM

92210-0003

$0.64

92210A

NUT

92210-0130

$5.57
