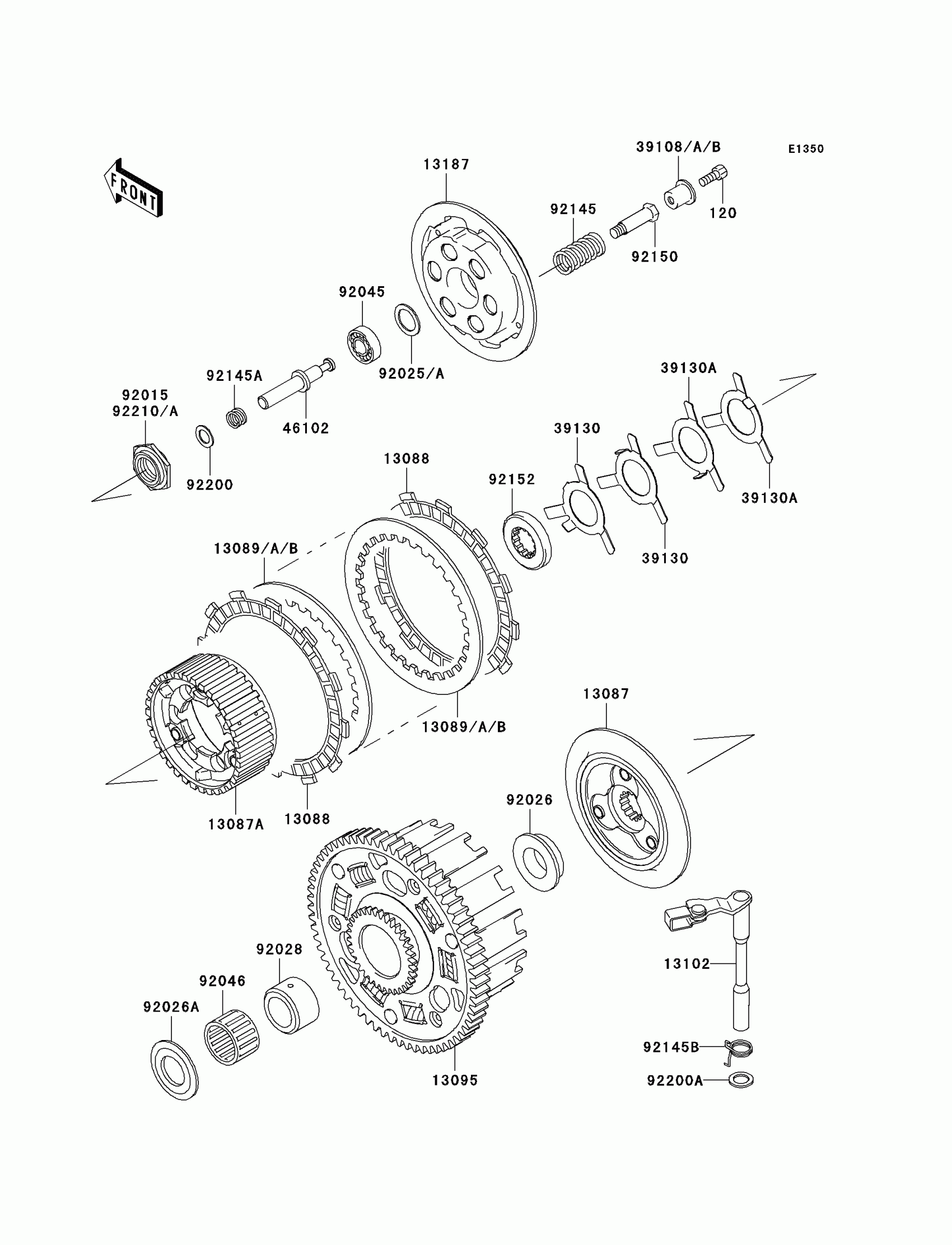

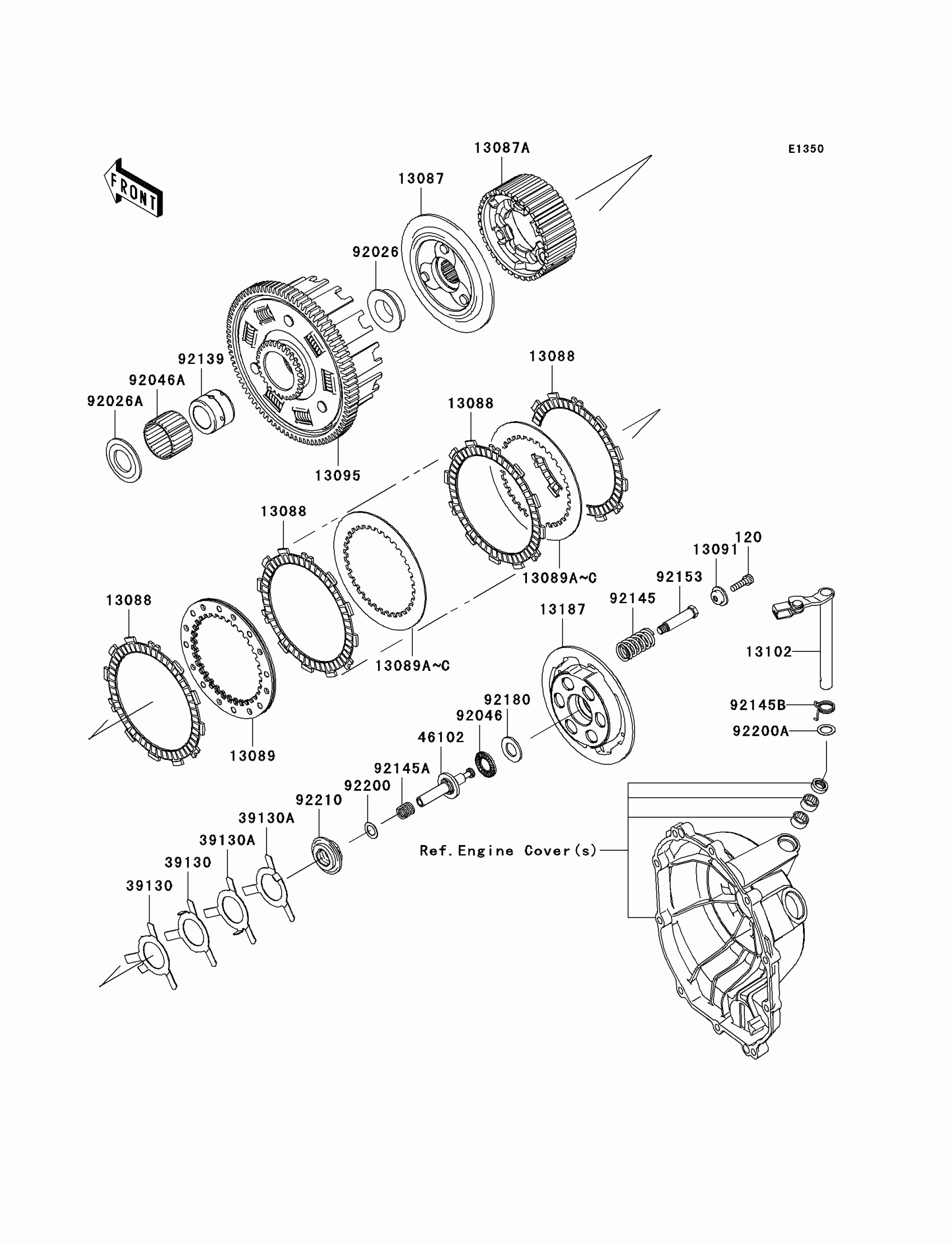

Kawasaki Ninja® ZX™-6RR Clutch Diagram

#

Description
Price

120

BOLT-SOCKET,6X16

120P0616

Unavailable

13087

HUB-CLUTCH

13087-0001

$113.81

13087A

HUB-CLUTCH

13087-0002

$95.01

13088

PLATE-FRICTION

13088-1124

$13.84

13089

PLATE-CLUTCH,T=1.6

13089-013

$9.99

13089A

PLATE-CLUTCH,T=2.0

13089-1073

Unavailable

13089B

PLATE-CLUTCH,T=1.4

13089-1126

Unavailable

13095

HOUSING-COMP-CLUTCH

13095-1410

$556.45

13102

RELEASE-COMP-CLUTCH

13102-1159

$62.75

13187

PLATE-CLUTCH OPERATING

13187-0001

$95.95

39108

RETAINER-SPRING,14MM

39108-0001

$5.77

39108A

RETAINER-SPRING,13MM

39108-0003

$7.44

39108B

RETAINER-SPRING,15MM

39108-1152

$7.44

39130

SPRING-LEAF

39130-1078

$7.52

39130A

SPRING-LEAF

39130-1079

$7.52

46102

ROD

46102-1449

$32.30

92015

NUT

92015-1929

Unavailable

92025

SHIM,T=0.6

92025-1755

$2.00

92025A

SHIM,T=0.4

92025-1756

$1.73

92026

SPACER

92026-0022

$18.08

92026A

SPACER

92026-1356

$12.17

92028

BUSHING

92028-1741

$33.07

92045

BEARING-BALL,6001C3ML01

92045-1235

$12.33

92046

BEARING-NEEDLE,K38X43X28.8X

92046-1263

$25.38

92145

SPRING

92145-0023

$9.84

92145A

SPRING,ROD

92145-0044

$4.29

92145B

SPRING

92145-1339

$3.59

92150

BOLT,CLUTCH

92150-1477

$6.18

92152

COLLAR

92152-1277

$83.26

92200

WASHER,11.2X18X0.5

92200-1423

$2.19

92200A

WASHER,12X18.5X0.5

92200-1487

$1.95

92210

NUT

92210-0053

$30.27

92210A

NUT,3 LEAF-SPRING

92210-0088

$28.89
