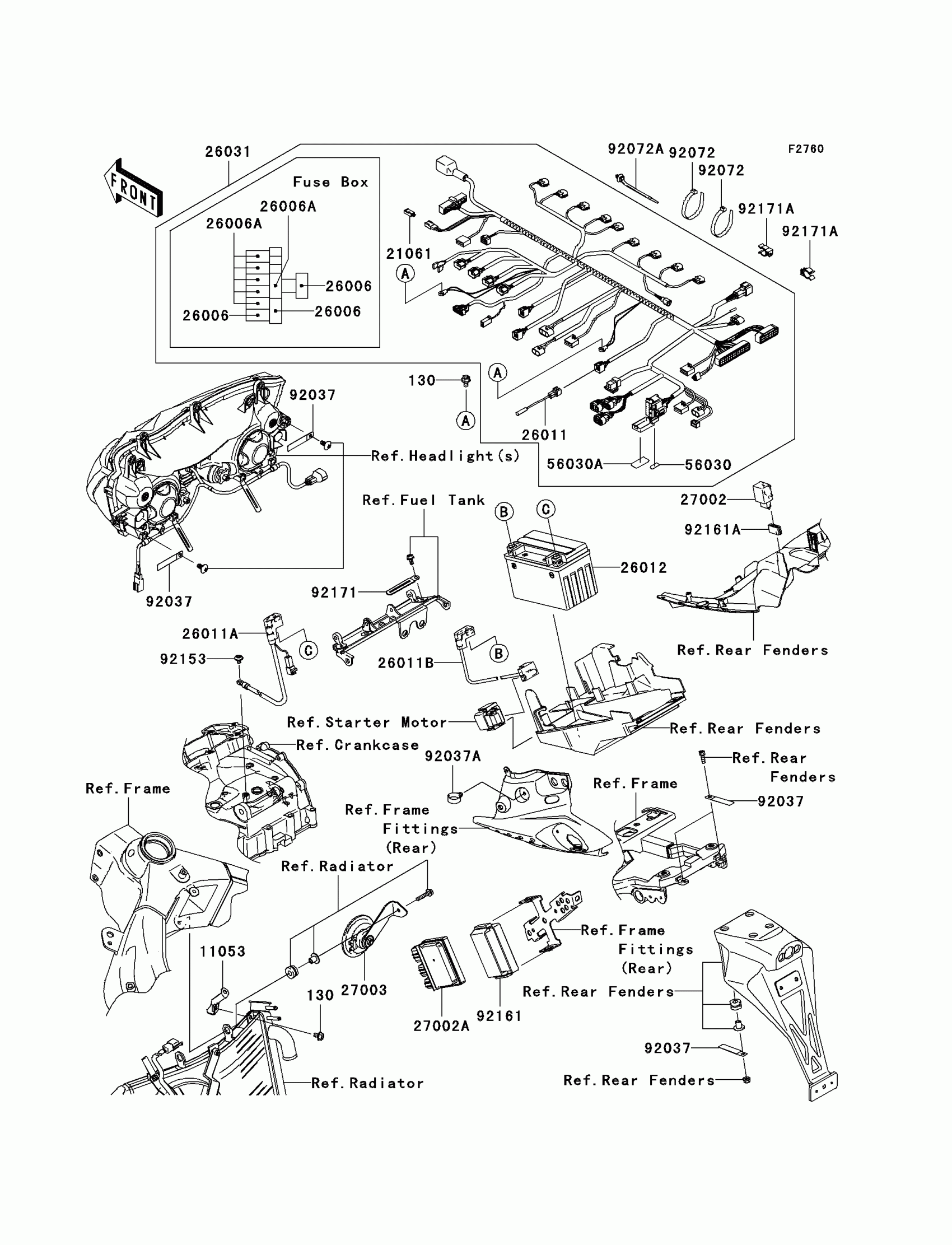

Kawasaki Ninja® ZX™-6RR Chassis Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED,6X10

130V0610

Unavailable

11053

BRACKET,RADIATOR

11053-1228

$8.54

21061

RECTIFIER

21061-0001

$29.24

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

$4.87

26011

WIRE-LEAD

26011-0037

$13.02

26011A

WIRE-LEAD,BATTERY(-)

26011-0056

$41.62

26011B

WIRE-LEAD,BATTERY(+)

26011-0070

$41.62

26012

BATTERY,YTX9-BS,12V 8AH

26012-1326

$142.54

26031

HARNESS,MAIN

26031-0377

$827.49

27002

RELAY-ASSY,SIGNAL LAMP

27002-0006

$54.81

27002A

RELAY-ASSY

27002-0007

Unavailable

27003

HORN

27003-0030

$92.71

56030

LABEL,FUSE BOX

56030-0091

$5.08

56030A

LABEL,FUSE BOX

56030-0092

$1.58

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP,HOSE

92037-1827

$7.45

92072

BAND,L=202

92072-1195

$1.56

92072A

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92153

BOLT,SOCKET,6X10

92153-0410

$2.80

92161

DAMPER,RELAY BOX

92161-0203

$10.37

92161A

DAMPER,SIGNAL RELAY

92161-0283

$2.97

92171

CLAMP

92171-0462

$4.92

92171A

CLAMP,HARNESS

92171-0465

$3.94
