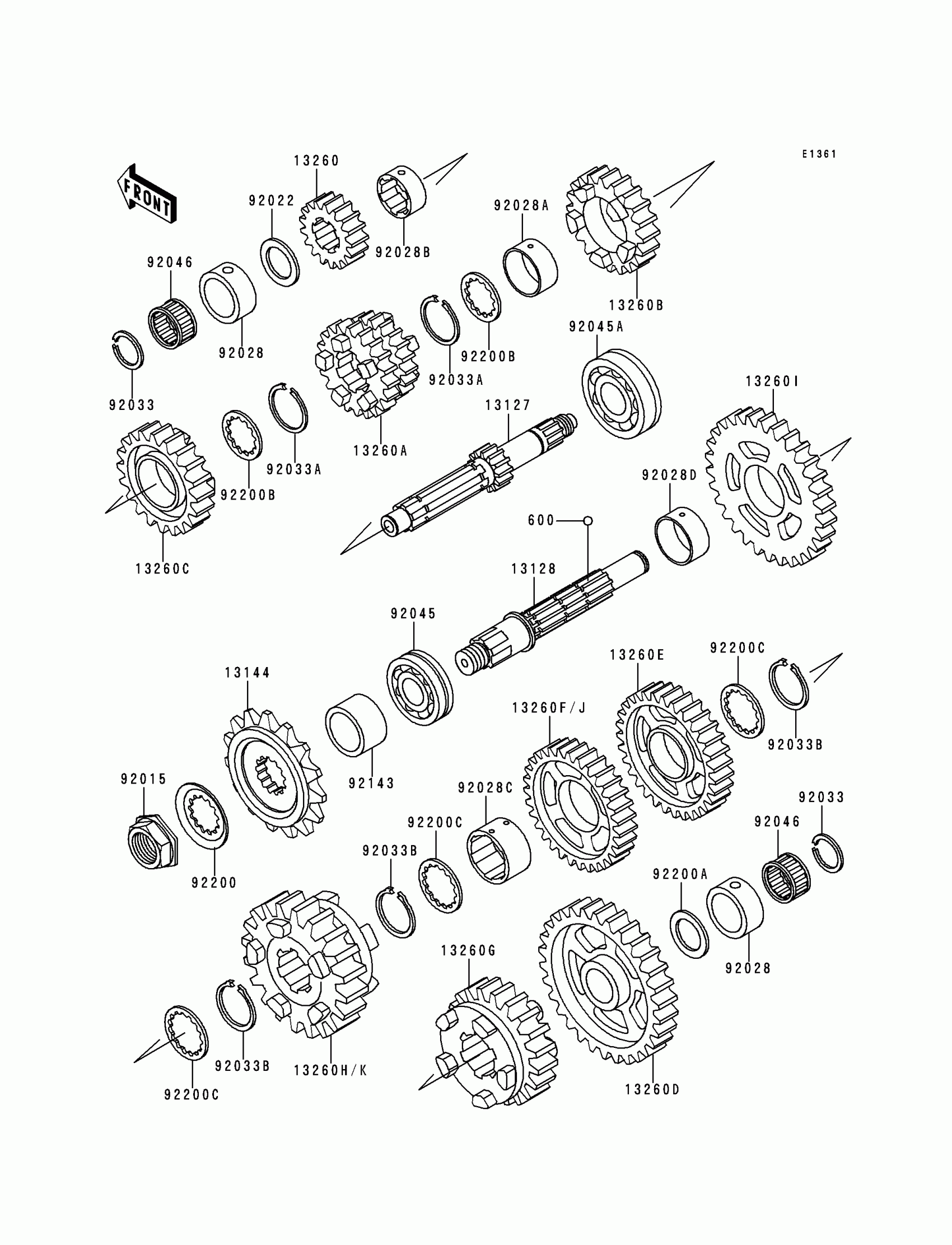

Kawasaki Ninja® ZX™-6R Transmission Diagram

#

Description
Price

600

BALL-STEEL,5/32

600A0500

$0.81

13127

SHAFT-TRANSMISSION INPUT,13T

13127-1246

Unavailable

13128

SHAFT-TRANSMISSION OUTPUT

13128-1207

Unavailable

13144

SPROCKET-OUTPUT,15T

13144-1259

Unavailable

13260

GEAR,INPUT 2ND,16T

13260-1452

$135.39

13260A

GEAR,INPUT 3RD&4TH,19&21T

13260-1453

Unavailable

13260B

GEAR,INPUT 5TH,23T

13260-1454

Unavailable

13260C

GEAR,INPUT TOP,24T

13260-1455

Unavailable

13260D

GEAR,OUTPUT LOW,38T

13260-1456

$151.73

13260E

GEAR,OUTPUT 3RD,31T

13260-1458

Unavailable

13260G

GEAR,OUTPUT 5TH,28T

13260-1460

Unavailable

13260I

GEAR,OUTPUT 2ND,33T

13260-1568

$179.75

13260J

GEAR,OUTPUT 4TH,29T

13260-1569

$174.62

13260K

GEAR,OUTPUT TOP,26T

13260-1570

$191.84

92015

NUT,20MM

92015-1963

$14.90

92022

WASHER,20.5X30X1,STEEL

92022-112

$8.86

92028

BUSHING,27X34X18.6

92028-1151

$36.12

92028A

BUSHING,INPUT 5TH GEAR

92028-1735

$25.59

92028B

BUSHING,INPUT TOP GEAR

92028-1736

$40.34

92028C

BUSHING,OUTPUT,3RD&4TH

92028-1738

$40.34

92028D

BUSHING,OUTPUT,2ND

92028-1739

$25.59

92033

RING-SNAP,20MM

92033-015

$4.26

92033A

RING-SNAP,24MM

92033-026

$8.79

92033B

RING-SNAP,25.9X30.6X1.2

92033-1037

$4.65

92045

BEARING-BALL,83993SH2-CS

92045-035

$73.57

92045A

BEARING-BALL,3TM-6205NX3

92045-1320

$29.66

92046

BEARING-NEEDLE

92046-1246

$21.01

92143

COLLAR,25X32X13

92143-1756

$12.95

92200

WASHER

92200-1065

$6.63

92200A

WASHER,20.3X30X2.3

92200-1238

$5.59

92200B

WASHER,25.2X31.0X1.5

92200-1239

$7.84

92200C

WASHER,28.5X34.0X1.5

92200-1240

$10.28
