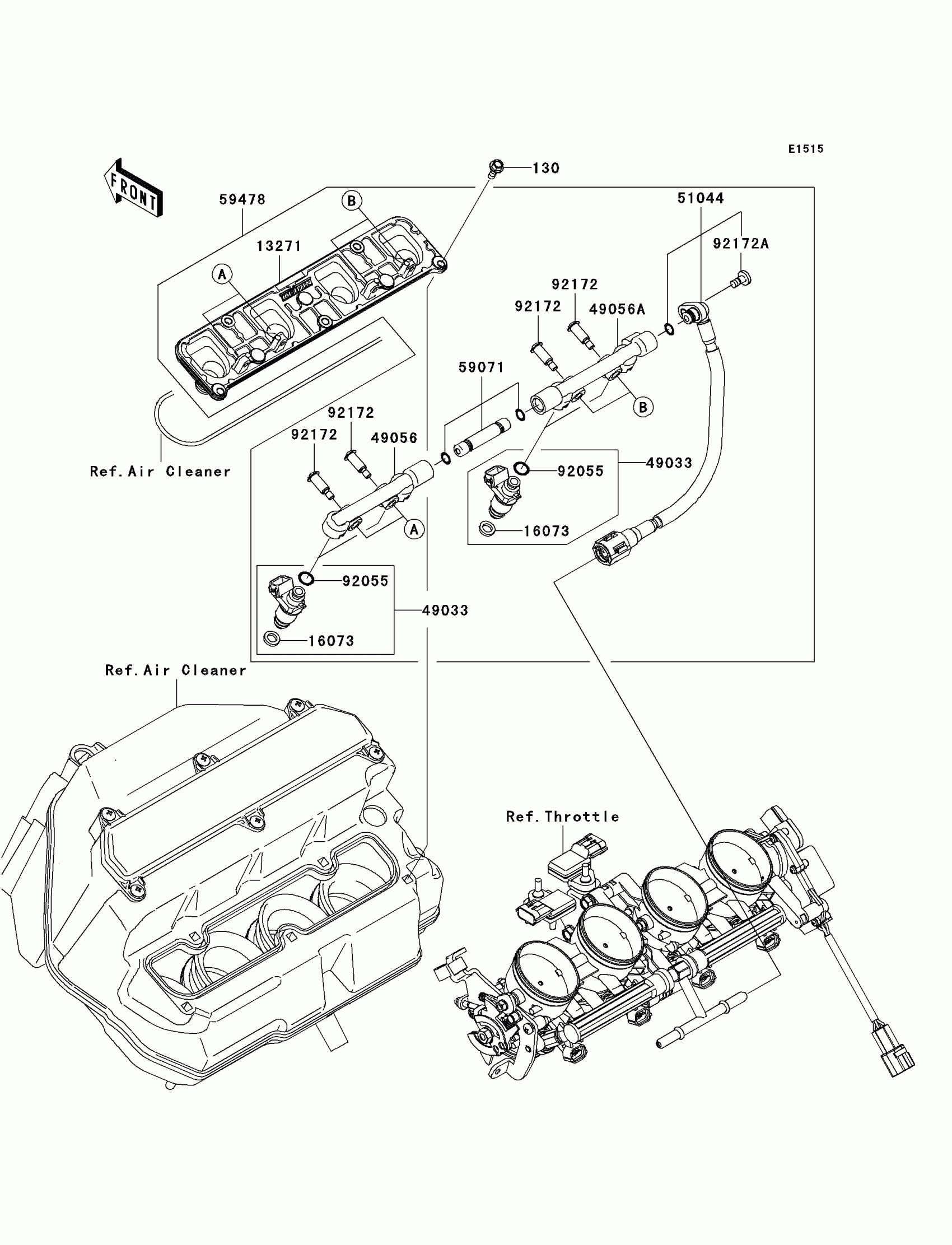

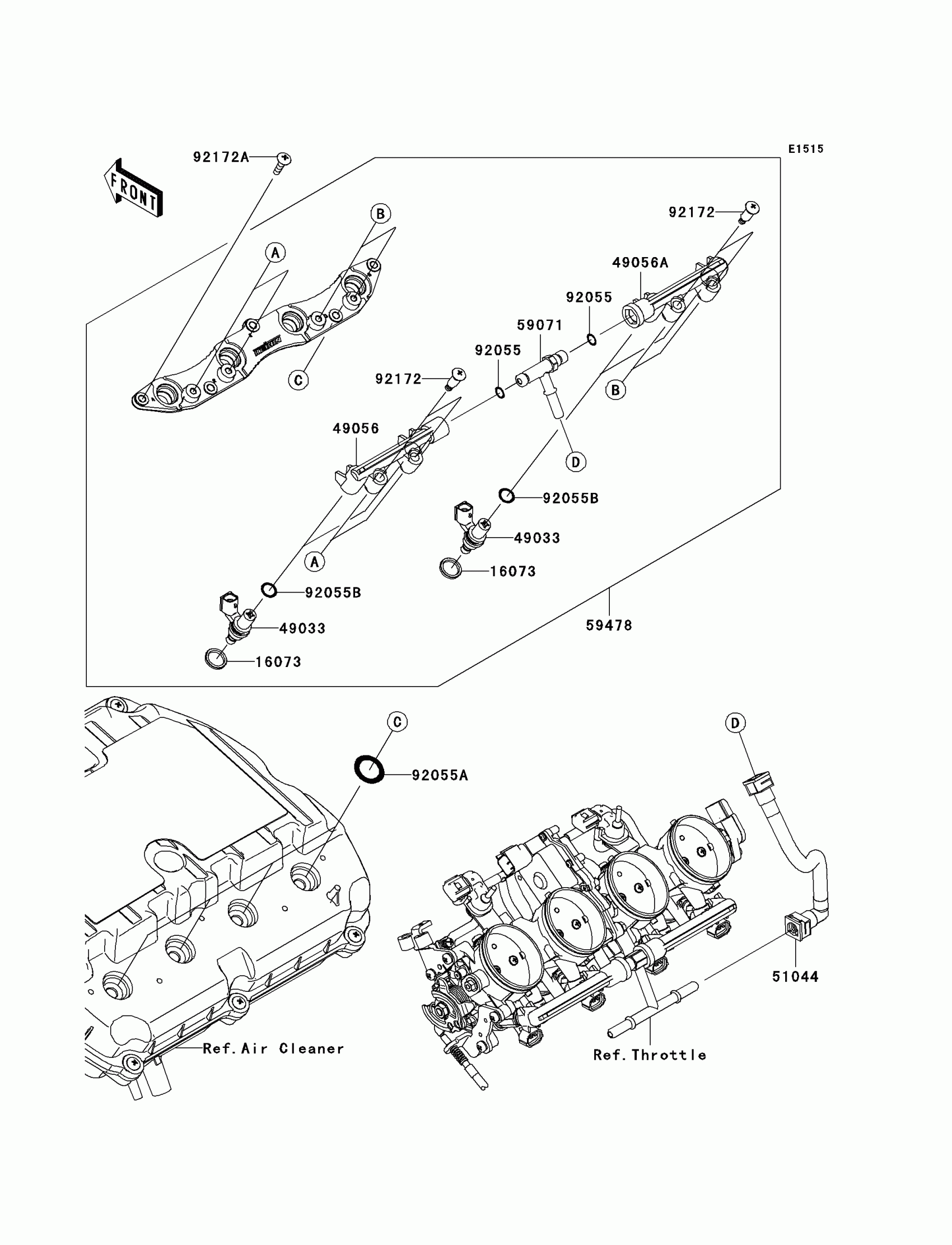

Kawasaki NINJA® ZX™-6R Top Feed Injecter Diagram

Description

Price

16073

INSULATOR

16073-0076

$7.21

49033

NOZZLE-INJECTION

49033-0015

$132.64

49056

PIPE-INJECTION,LH

49056-0015

$103.61

49056A

PIPE-INJECTION,RH

49056-0027

$103.74

51044

TUBE-ASSY,FUEL

51044-0068

$83.45

59071

JOINT

59071-0062

$72.55

59478

NOZZLE-ASSY,TOP INJECTOR

59478-0009

$795.68

92055

RING-O

92055-0064

$7.65

92055A

RING-O,3.95X19.5

92055-0161

$2.12

92055B

RING-O

92055-0170

$2.95

92172

SCREW,PIPE INJECTION

92172-0064

$2.80

92172A

SCREW

92172-1072

$2.41
