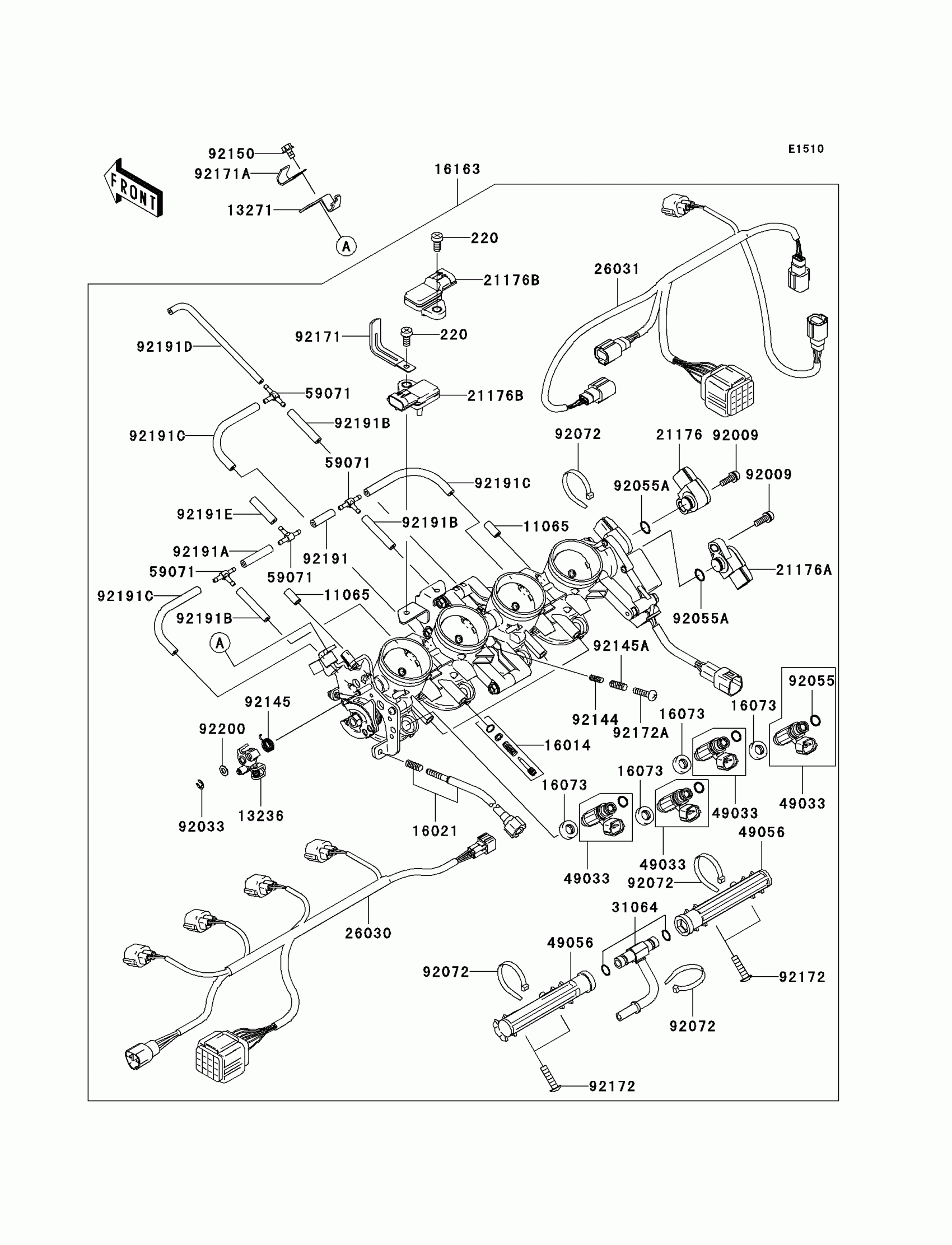

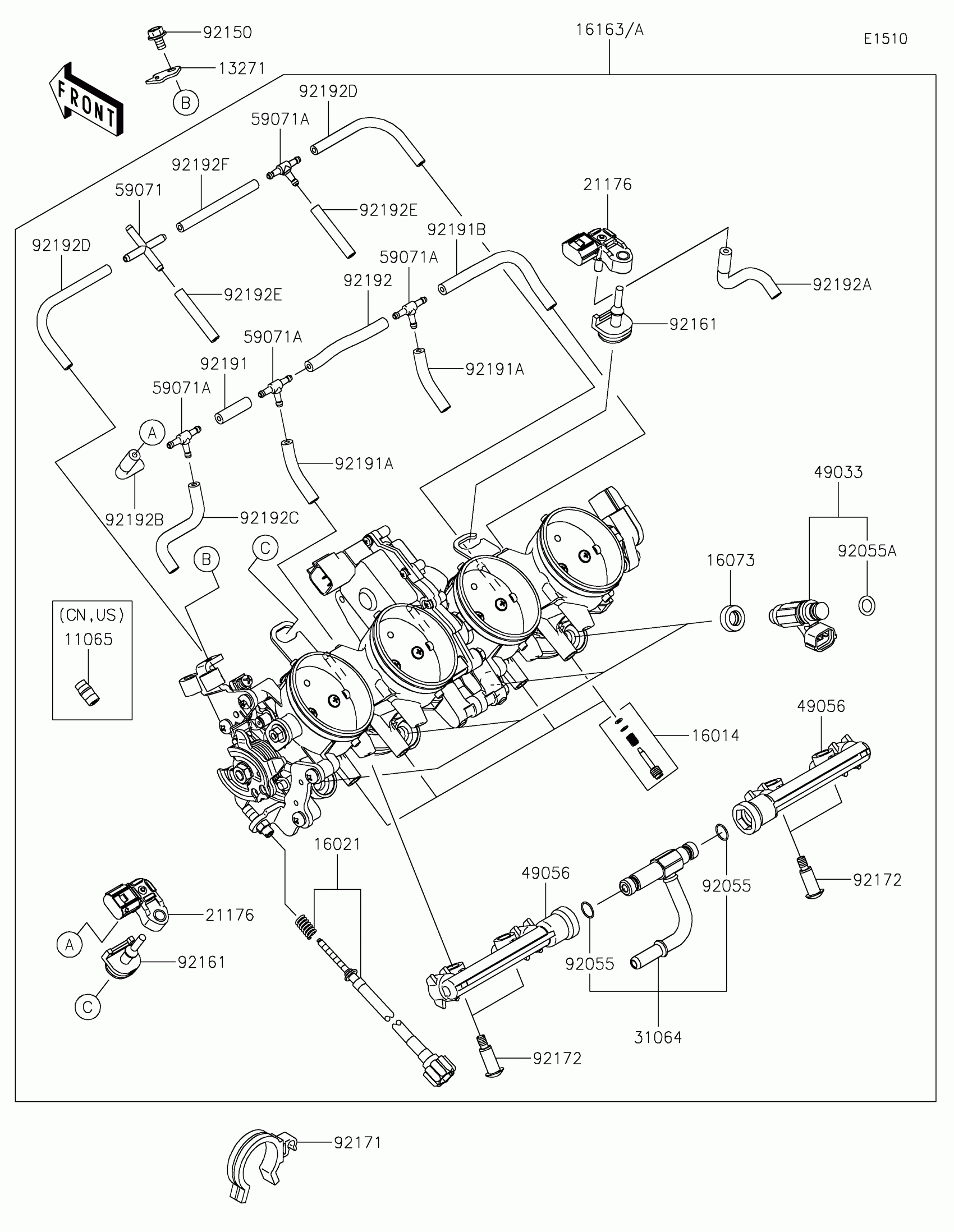

Find the part on the Throttle diagram for your 2004 Kawasaki Ninja® ZX™-6R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki Ninja® ZX™-6R Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

SCREW-PAN-CROS,6X12

220C0612

1
Out of stock

11065

CAP

11065-0018

1

$4.84

In stock

13236

1

$72.60

In stock

13271

PLATE

13271-0098

1
Out of stock

16014

SCREW-PILOT AIR

16014-0002

1

$23.08

In stock

16021

SCREW-THROTTLE STOP

16021-0001

1

$125.52

In stock

16073

INSULATOR

16073-3707

1

$4.90

In stock

16163

THROTTLE-ASSY

16163-1120

1

$1,890.32

In stock

21176

SENSOR,TPS

21176-0001

1

$233.46

In stock

21176A

SENSOR,TPS

21176-0002

1

$222.19

In stock

21176B

SENSOR,PRESSURE

21176-0058

1

$144.21

In stock

26030

HARNESS

26030-1998

1

$128.03

In stock

26031

HARNESS

26031-1081

1

$73.35

In stock

31064

PIPE-COMP,FUEL

31064-0002

1

$32.79

In stock

49033

NOZZLE-INJECTION

49033-1059

1
Out of stock

49056

PIPE-INJECTION

49056-0001

1

$105.87

In stock

59071

JOINT,3WAY,T

59071-3752

1

$8.09

In stock

92009

SCREW,THROTTLE SENSOR

92009-1981

1
Out of stock

92033

RING-SNAP,FAST IDLE

92033-0004

1

$2.27

In stock

92055

1

$1.64

In stock

92055A

RING-O

92055-1671

1

$3.29

In stock

92072

BAND,SUB-HARNESS

92072-0012

1

$3.97

In stock

92144

SPRING

92144-1451

1

$9.29

In stock

92145

SPRING,FAST IDLE

92145-0054

1

$20.15

In stock

92145A

1

$15.36

In stock

92150

BOLT,5X8

92150-1406

1

$3.56

In stock

92171

CLAMP

92171-0112

1

$7.44

In stock

92171A

CLAMP

92171-1539

1

$2.29

In stock

92172

1

$2.29

In stock

92172A

1

$2.56

In stock

92191

TUBE,3X7X25

92191-0020

1

$1.98

In stock

92191A

TUBE,3X7X35

92191-0021

1
Out of stock

92191B

TUBE,3X7X40

92191-0022

1

$2.61

In stock

92191C

TUBE,3X7X100

92191-0023

1

$3.71

In stock

92191D

TUBE,3X7X153

92191-0024

1
Out of stock

92191E

TUBE,3X7X30

92191-0025

1

$2.00

In stock

92200

WASHER,FAST IDLE

92200-0033

1
Out of stock
