1997 Kawasaki Ninja® ZX™-6R Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 1997 Kawasaki Ninja® ZX™-6R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

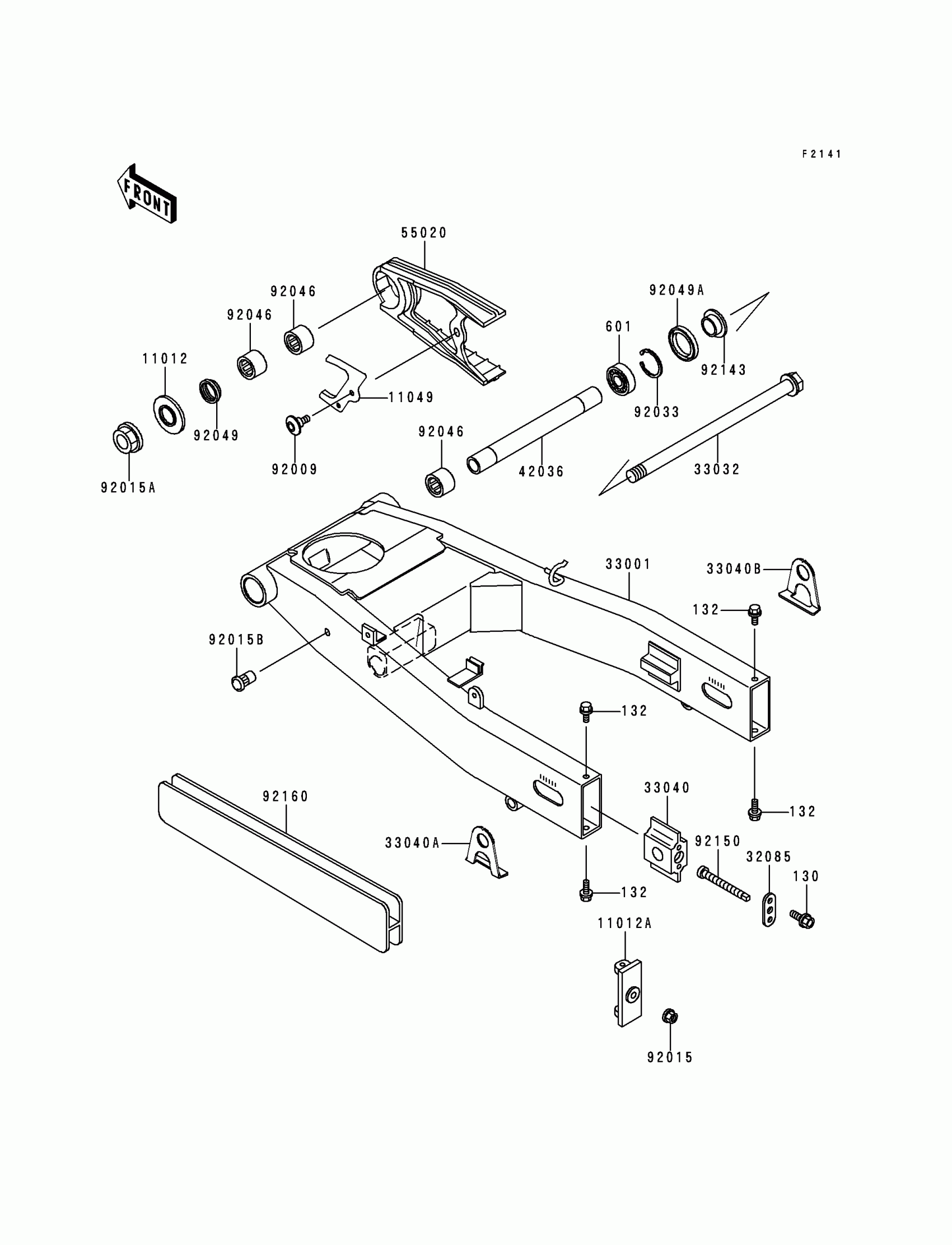

1997 Kawasaki Ninja® ZX™-6R Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14

130H0614

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132E0612

1
Out of stock

601

BEARING-BALL,#6004

601A6004

1
Out of stock

11012

CAP

11012-1658

1
Out of stock

11012A

CAP,CHAIN ADJUSTER

11012-1704

1
Out of stock

11049

BRACKET,CHAIN GUARD

11049-1234

1
Out of stock

32085

STOPPER,CHAIN ADJUSTER

32085-1351

1
Out of stock

33001

ARM-COMP-SWING,G.GRAY

33001-1475-GD

1
Out of stock

33032

SHAFT-SWING ARM

33032-1165

1
Out of stock

33040

ADJUSTER-CHAIN,INSIDE

33040-1133

1
Out of stock

33040A

ADJUSTER-CHAIN,LH

33040-1144

1
Out of stock

33040B

ADJUSTER-CHAIN,RH

33040-1145

1
Out of stock

42036

SLEEVE,SWING ARM,L=213

42036-1283

1
Out of stock

55020

GUARD,CHAIN

55020-1534

1
Out of stock

92009

SCREW

92009-1664

1
Out of stock

92015

NUT,8MM

92015-1143

1
Out of stock

92015A

NUT,FLANGED,20MM

92015-1724

1
Out of stock

92015B

NUT,POP,6MM,L=16.5

92015-1792

1
Out of stock

92033

RING-SNAP,42MM

92033-1041

1
Out of stock

92046

BEARING-NEEDLE,BM2817

92046-1111

1
Out of stock

92049

SEAL-OIL,28X34X5.7

92049-1181

1
Out of stock

92049A

SEAL-OIL,MHSA25X42X6

92049-1314

1
Out of stock

92143

COLLAR,SWING ARM,L=12.5

92143-1227

1
Out of stock

92150

BOLT,CHAIN ADJUSTER

92150-1285

1
Out of stock

92160

DAMPER,SWING ARM

92160-1174

1
Out of stock
