1997 Kawasaki Ninja® ZX™-6R Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1997 Kawasaki Ninja® ZX™-6R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

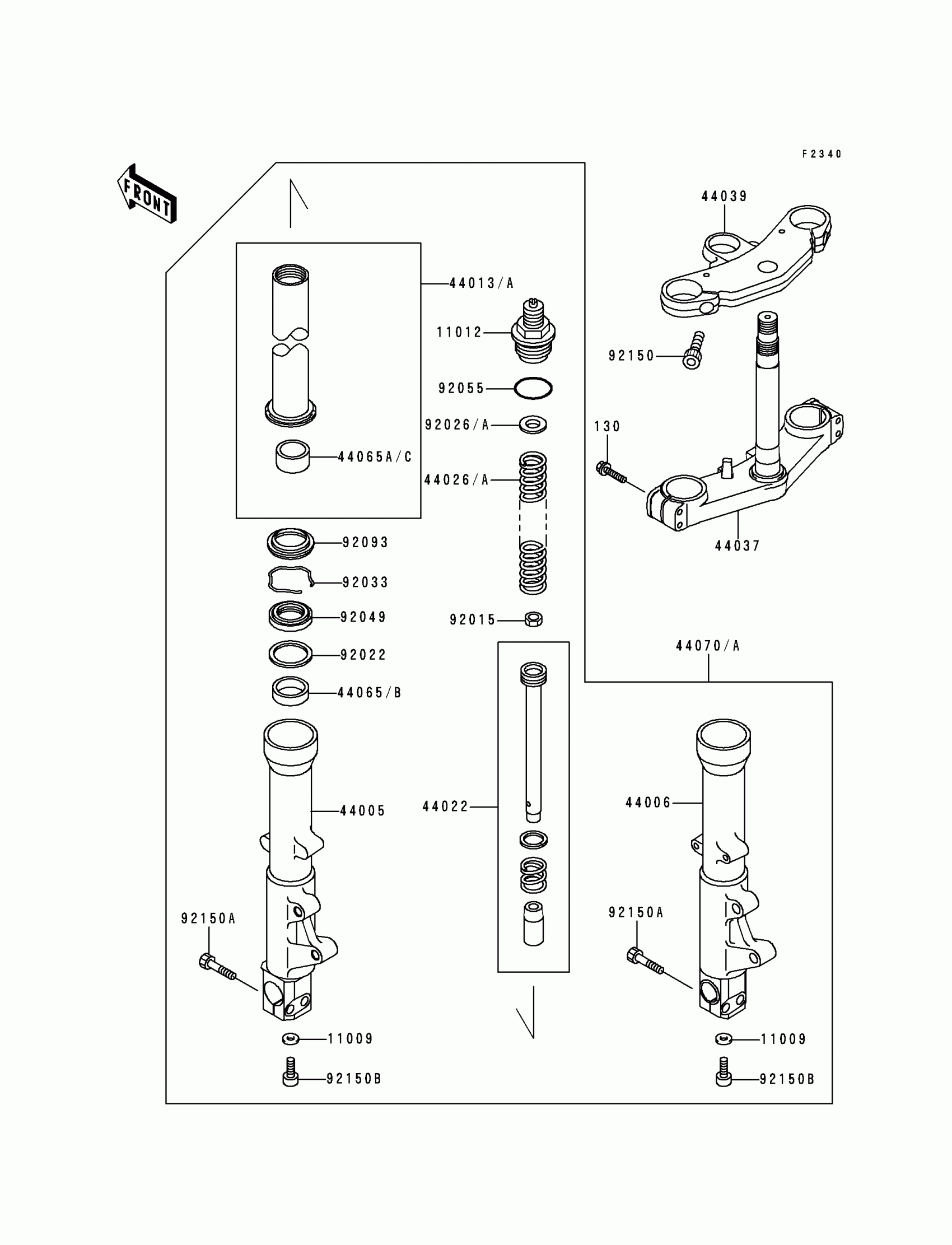

1997 Kawasaki Ninja® ZX™-6R Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130V0845

1
Out of stock

11009

1

$4.12

In stock

11012

CAP,FORK

11012-1937

1
Out of stock

44005

PIPE-LEFT FORK OUTER,G.GRAY

44005-1353-GD

1
Out of stock

44006

PIPE-RIGHT FORK OUTER,G.GRAY

44006-1351-GD

1
Out of stock

44013A

PIPE-FORK INNER

44013-1419

1
Out of stock

44022

CYLINDER-FORK

44022-1307

1
Out of stock

44026A

SPRING-FRONT FORK

44026-1604

1
Out of stock

44037

HOLDER-FORK UNDER

44037-1330

1
Out of stock

44039

HOLDER-FORK UPPER

44039-1257

1
Out of stock

44065B

1

$26.35

In stock

44065C

1

$19.99

In stock

44070A

DAMPER-ASSY,FORK,G.GRAY

44070-1474-GD

1
Out of stock

92015

NUT

92015-1795

1

$4.85

In stock

92022

1

$6.82

In stock

92026A

SPACER,FORK

92026-1475

1
Out of stock

92033

RING-SNAP

92033-1036

1

$5.15

In stock

92049

SEAL-OIL,FORK OUTER TUBE

92049-1356

1
Out of stock

92055

RING-O

92055-1321

1

$1.19

In stock

92093

1

$20.09

In stock

92150

BOLT,SOCKET,8X25

92150-1172

1

$1.55

In stock

92150A

BOLT,SOCKET,8X40

92150-1194

1

$2.29

In stock

92150B

BOLT,12X22

92150-1398

1

$8.95

In stock
