Description

Price

120

BOLT-SOCKET,8X14

120P0814

$4.35

120A

BOLT-SOCKET,5X10

120S0510

$1.60

132

BOLT-FLANGED-SMALL,6X25

132J0625

$2.62

461

WASHER-SPRING,5MM,BLACK

461K0500

$1.49

13091

HOLDER,MAGNETIC SWITCH

13091-1884

$12.45

13107

SHAFT,7.8X12X26.5

13107-1176

$10.56

13193

CLUTCH-ASSY-ONEWAY

13193-1002

$116.39

14079

HOLDER-ASSY,CARBON BRUSH

14079-1082

$45.19

16085

GEAR,ONEWAY CLUTCH,65T

16085-1166

Unavailable

21040

SPRING-BRUSH

21040-1051

$8.13

21163

STARTER-ELECTRIC

21163-1258

Unavailable

21169

TERMINAL,STARTER

21169-1058

$59.07

26011

WIRE-LEAD,STARTER

26011-1603

$50.75

27010

SWITCH,MAGNETIC

27010-1327

Unavailable

59051

GEAR-SPUR,IDLE,48T&14T

59051-1200

$77.34

92015

NUT

92015-1623

$5.00

92022

WASHER,25.5X38X1

92022-145

$7.31

92022A

WASHER

92022-2200

$1.45

92043

PIN

92043-132

$6.22

92055

RING-O,62MM

92055-1260

$10.35

92055A

RING-O,4.5MM

92055-1261

$2.87

92055B

RING-O,24.4X3.1

92055-1262

$12.46

92071

GROMMET,STARTER TERMINAL

92071-1120

$13.08

92081

SPRING,COIL

92081-159

$3.89

92122

ROLLER

92122-006

$6.22

92150

BOLT

92150-1237

$8.06

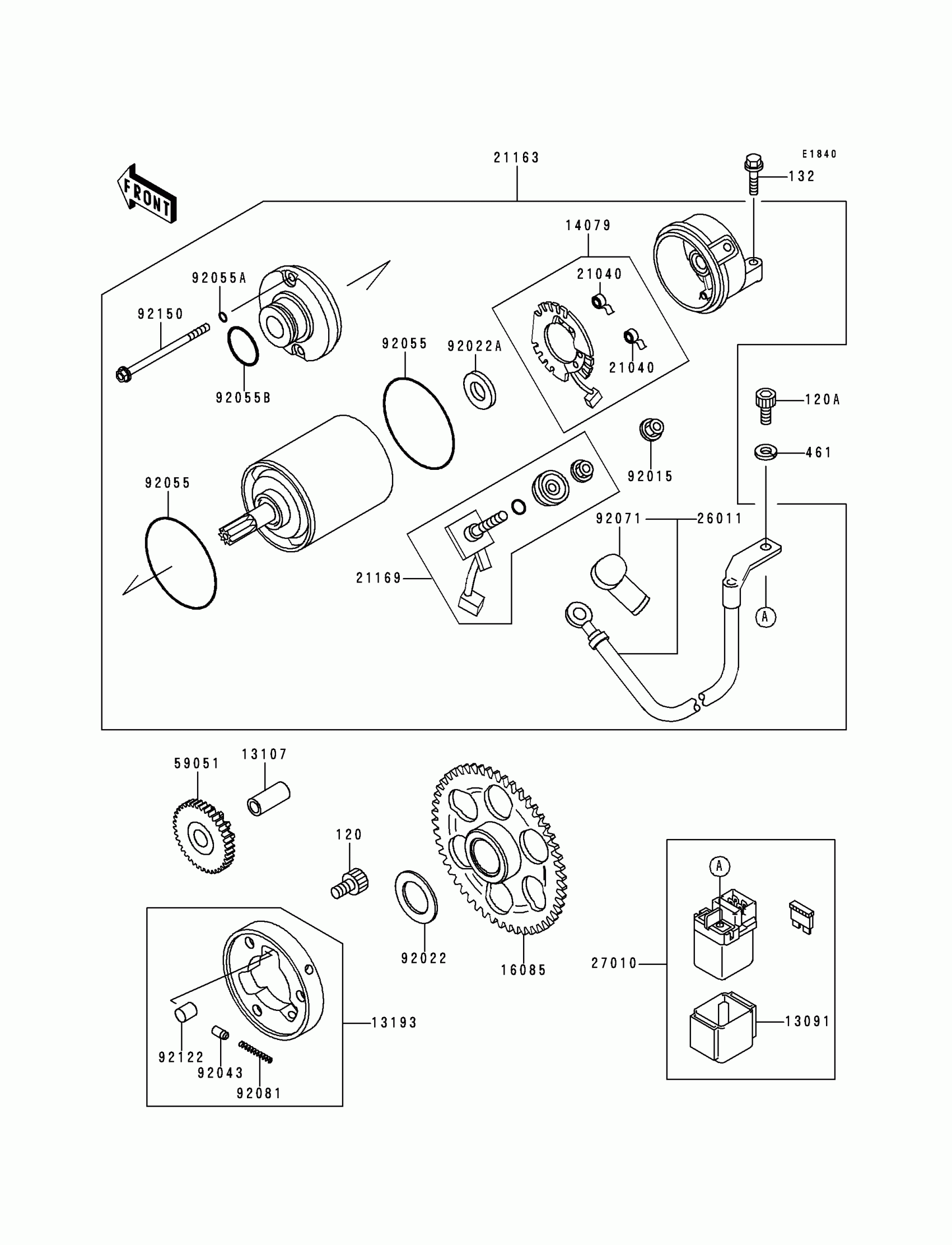

Kawasaki Ninja® ZX™-6R Starter Motor Diagram

BOLT-SOCKET,8X14

BOLT-SOCKET,5X10

BOLT-FLANGED-SMALL,6X25

WASHER-SPRING,5MM,BLACK

HOLDER,MAGNETIC SWITCH

SHAFT,7.8X12X26.5

CLUTCH-ASSY-ONEWAY

HOLDER-ASSY,CARBON BRUSH

GEAR,ONEWAY CLUTCH,65T

SPRING-BRUSH

STARTER-ELECTRIC

TERMINAL,STARTER

WIRE-LEAD,STARTER

SWITCH,MAGNETIC

GEAR-SPUR,IDLE,48T&14T

NUT

WASHER,25.5X38X1

WASHER

PIN

RING-O,62MM

RING-O,4.5MM

RING-O,24.4X3.1

GROMMET,STARTER TERMINAL

SPRING,COIL

ROLLER

BOLT
