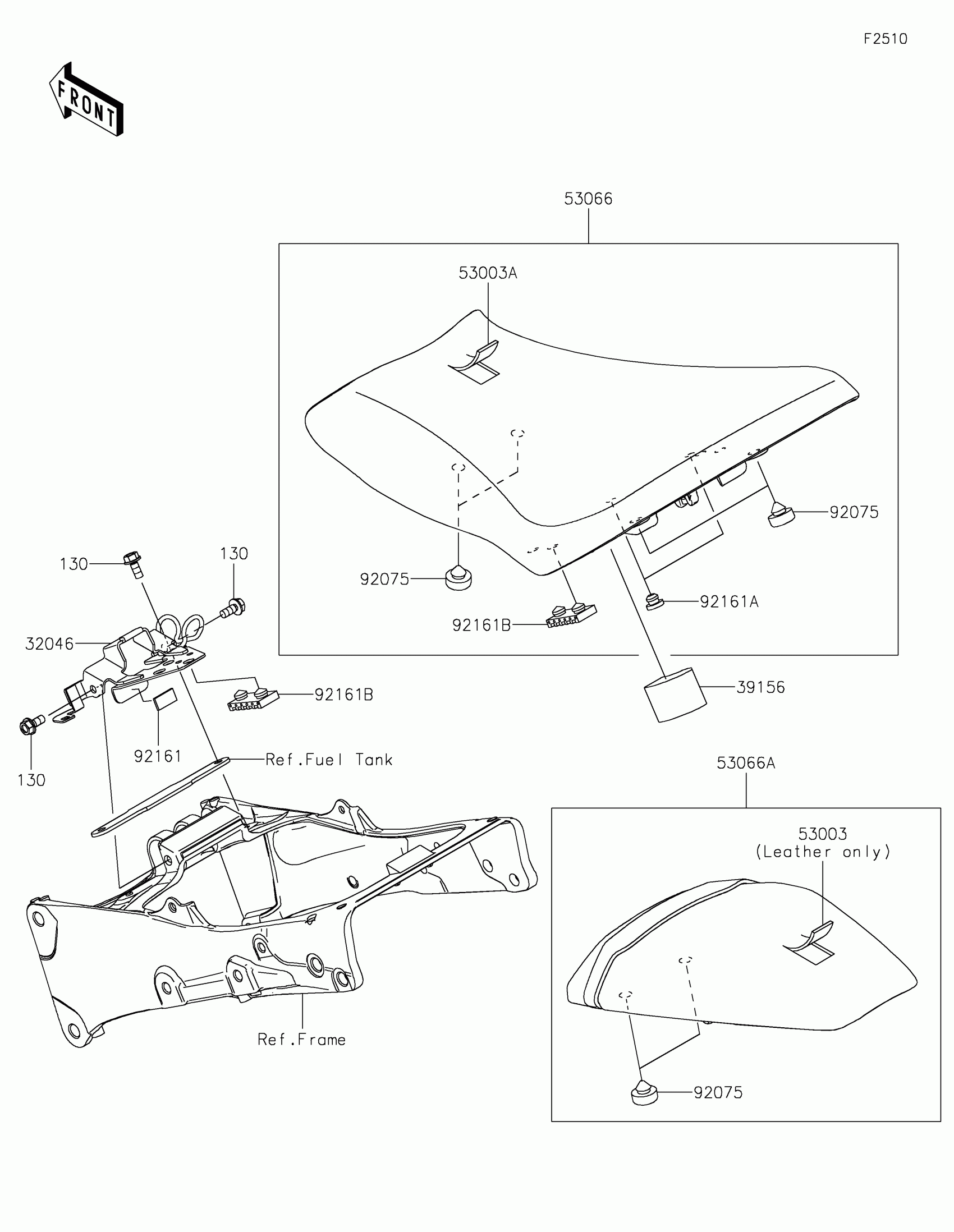

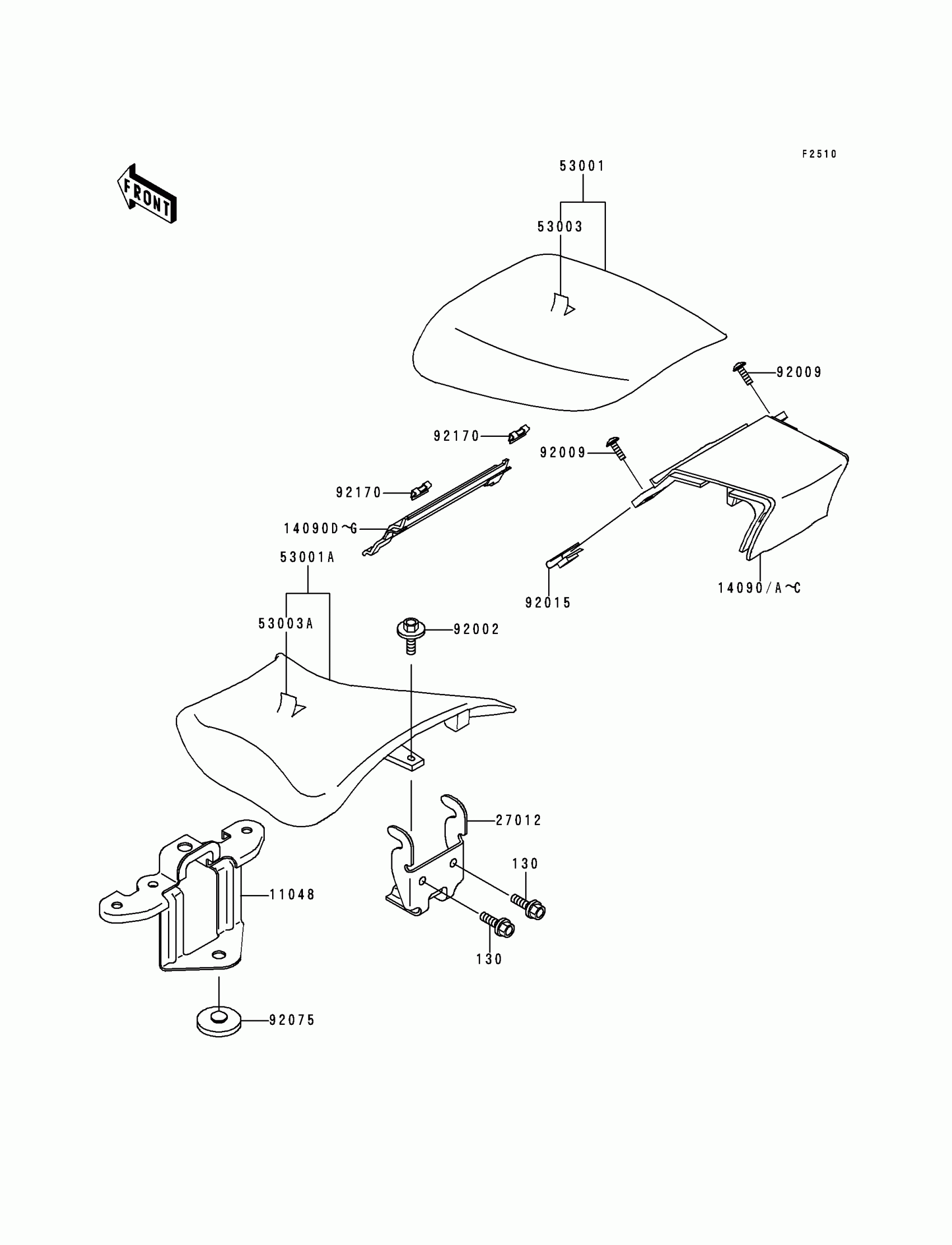

Kawasaki Ninja® ZX™-6R Seat Diagram

Description

Price

130

BOLT-FLANGED

130J0610

$2.33

11048

BRACKET,FRONT SEAT

11048-1865

Unavailable

14090

COVER,TAIL,CNT,C.P.RED

14090-1523-A5

$102.11

14090C

COVER,TAIL,CNT,L.GREEN

14090-1523-7F

Unavailable

14090D

COVER,TAIL,FR,CNT,C.P.RED

14090-1610-A5

Unavailable

14090G

COVER,TAIL,FR,CNT,L.GREEN

14090-1610-7F

Unavailable

27012

HOOK,REAR SEAT

27012-1486

Unavailable

53001

SEAT-ASSY,RR,BLACK

53001-1643-MA

$291.14

53001A

SEAT-ASSY,FR,BLACK

53001-1770-MA

$304.50

53003

LEATHER,REAR SEAT,BLACK

53003-1252-MA

Unavailable

53003A

LEATHER,FRONT SEAT,BLACK

53003-1323-MA

Unavailable

92002

BOLT,6X14

92002-1351

$4.31

92009

SCREW,5X16,BLACK

92009-1654

$3.13

92015

NUT,5MM

92015-1798

$6.57

92075

DAMPER,RUBBER

92075-078

$4.39

92170

CLAMP

92170-1440

$5.96
