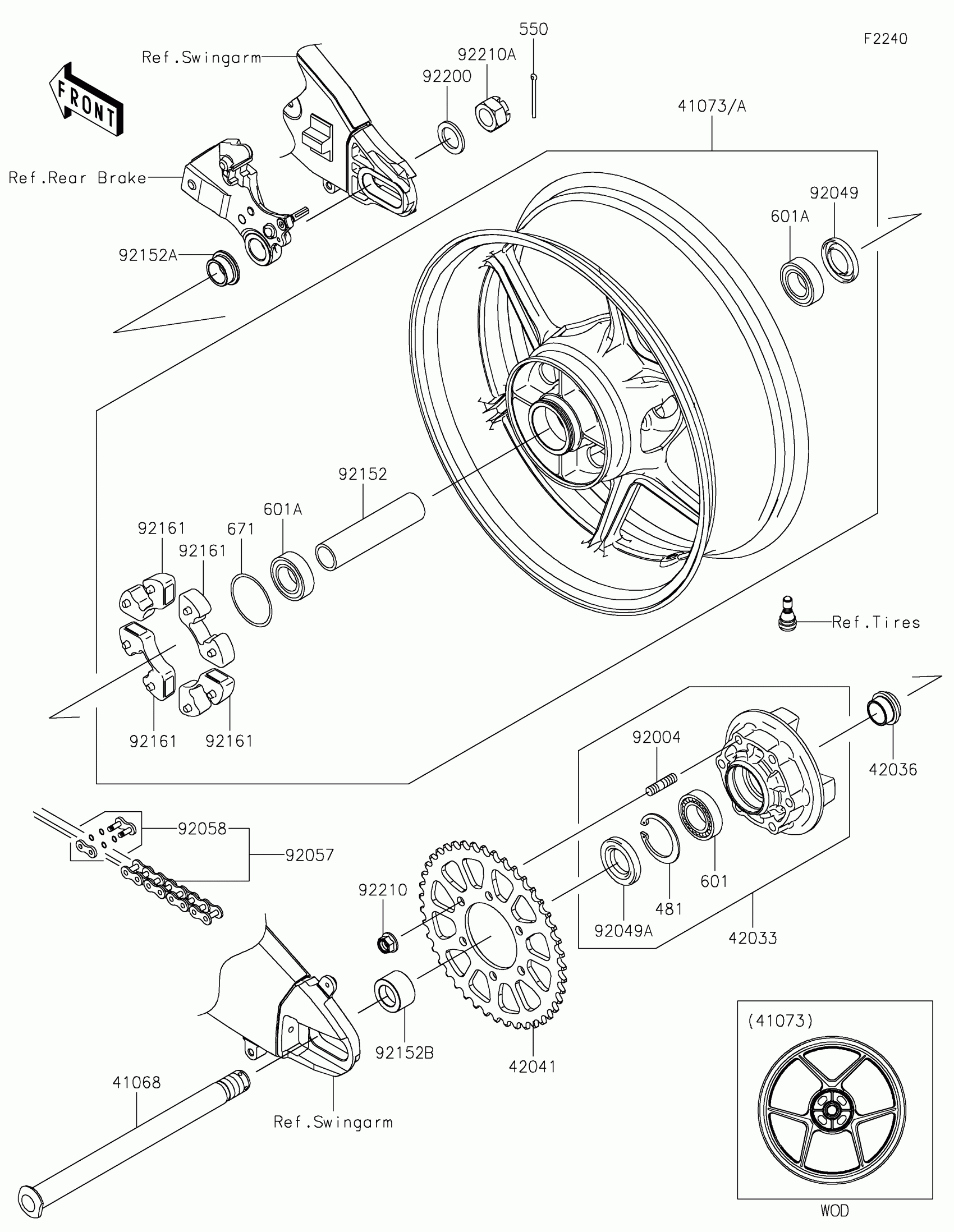

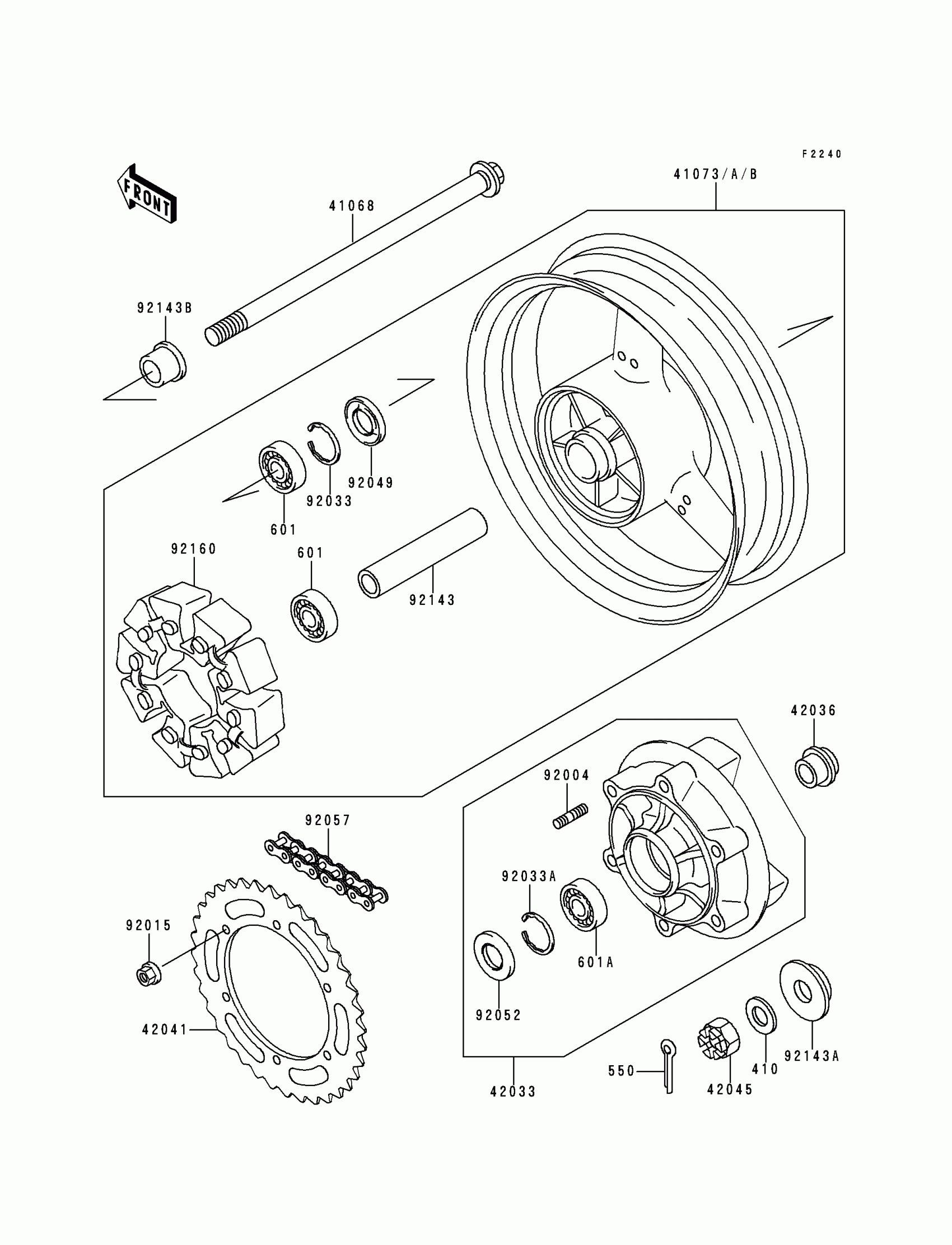

Kawasaki Ninja® ZX™-6R Rear Wheel/Chain Diagram

Description

Price

410

W-PLAN-S,18MM

410D1800

$1.35

550

PIN-COTTER,4.0X35

550D4035

$1.57

601

BEARING-BALL,6204UUC3

601B6204UU

$26.51

601A

BEARING-BALL,#6205G

601B6205G

Unavailable

41068

AXLE,RR

41068-1350

$167.37

41073A

WHEEL-ASSY,RR,C.GRAY

41073-1589-DH

Unavailable

41073B

WHEEL-ASSY,RR,BLUE VIOLET

41073-1589-5G

Unavailable

42033

COUPLING-ASSY,RR HUB

42033-1171

Unavailable

42036

SLEEVE,RR HUB,L=23

42036-1251

$21.23

42041

SPROCKET-HUB,40T

42041-1435

$82.52

42045

NUT,CASTLE,18MM

42045-018

$7.01

92004

STUD,10X19

92004-1151

$6.80

92015

NUT,10MM

92015-1720

$3.98

92033

RING-SNAP,47MM

92033-1042

$3.22

92033A

RING-SNAP,52MM

92033-1043

$6.15

92049

SEAL-OIL,BJN28475

92049-1056

$9.95

92052

SEAL-OIL,TWC35527

92052-006

Unavailable

92057

CHAIN,DRIVE,EK525MV-XX108L

92057-1398

$395.63

92143

COLLAR,RR HUB,L=133

92143-1303

$38.93

92143A

COLLAR,RR AXLE,LH,L=15.5

92143-1808

Unavailable

92143B

COLLAR,RR AXLE,RH,L=22.5

92143-1809

Unavailable

92160

DAMPER,SHOCK,RR HUB

92160-1524

$71.26
