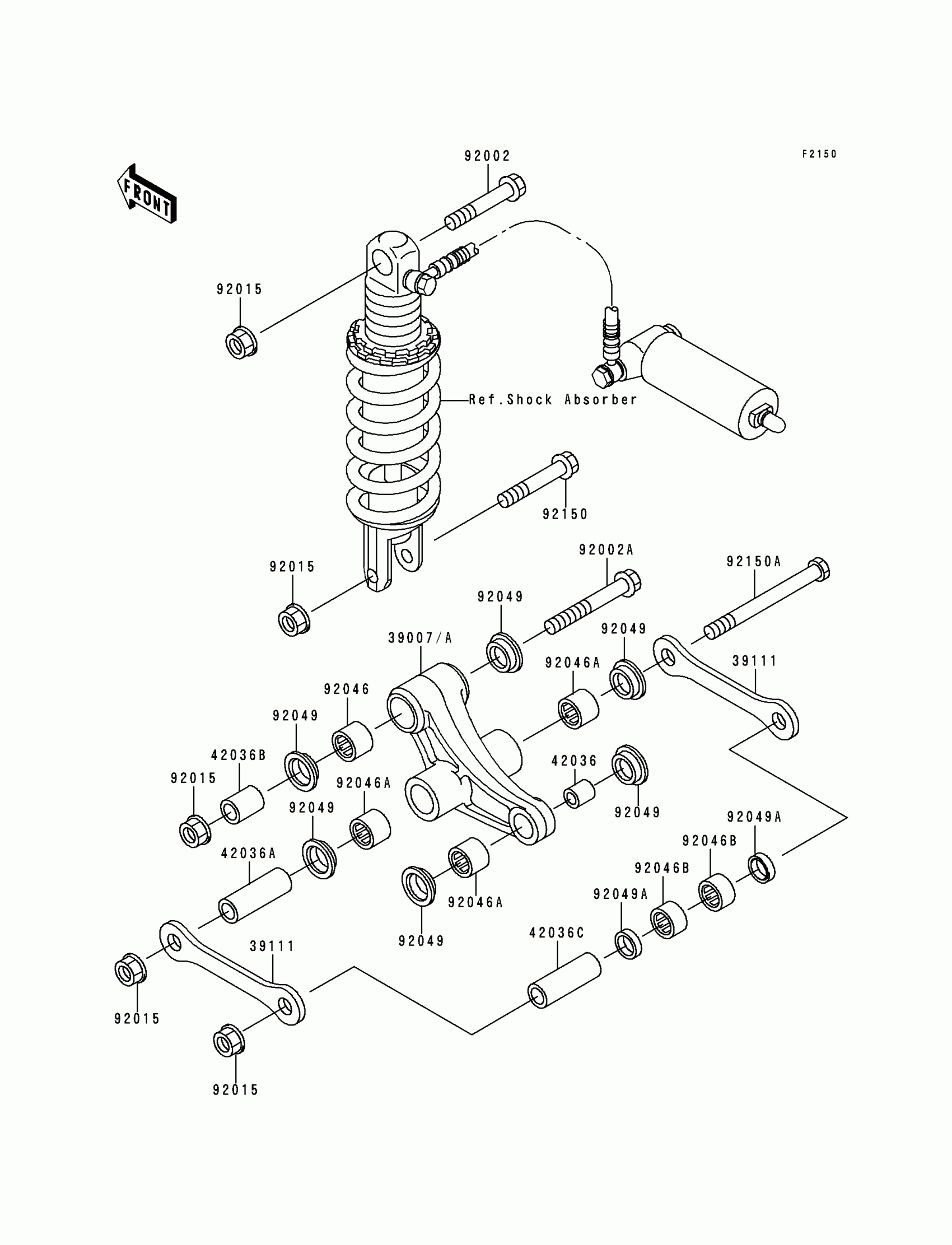

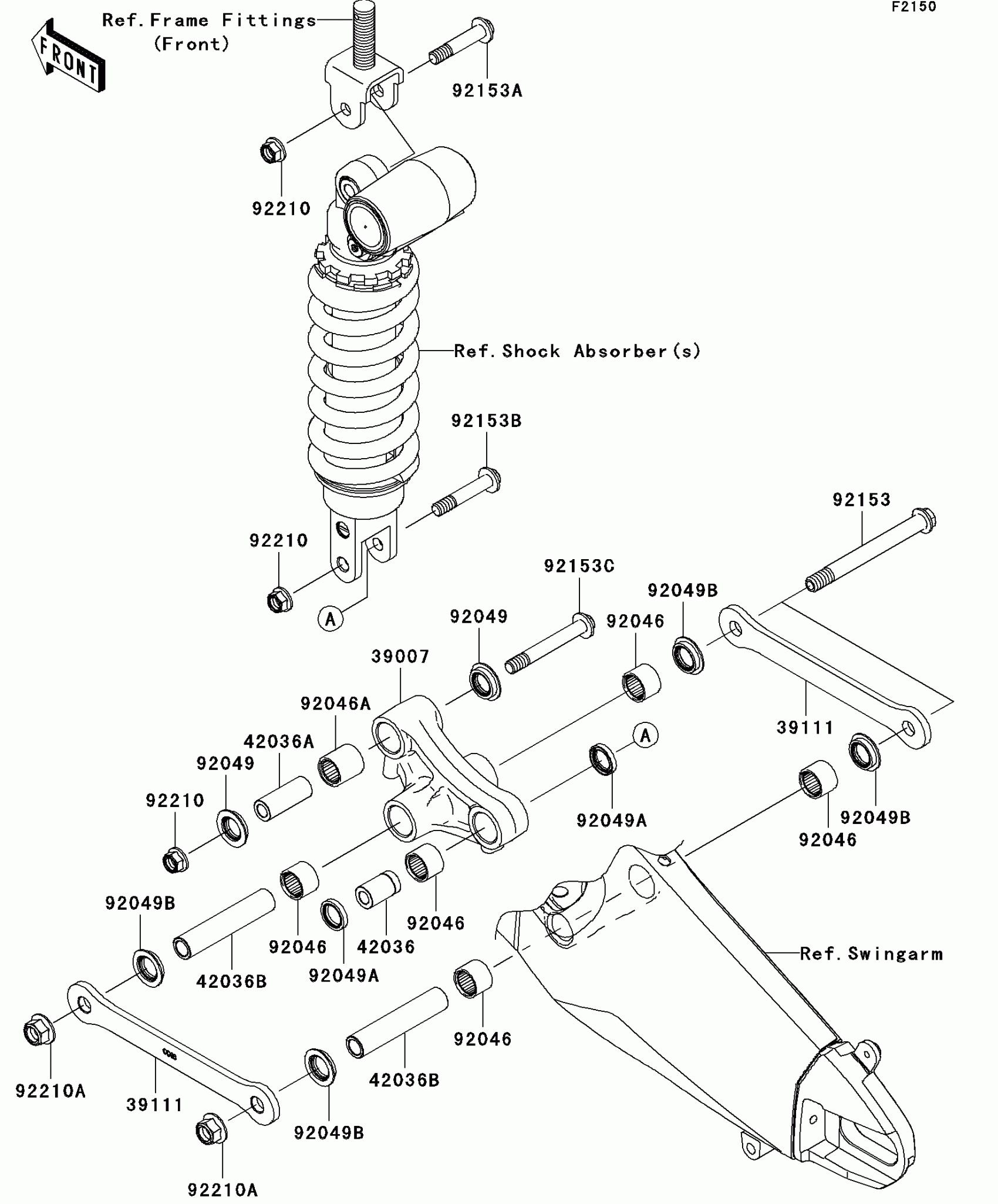

Kawasaki Ninja® ZX™-6R Rear Suspension Diagram

Description

Price

39111

ROD-TIE,SUSPENSION

39111-1139

Unavailable

42036

SLEEVE,12.1X20X32

42036-1077

$16.69

42036A

SLEEVE,12.1X20X88

42036-1250

$32.76

42036B

SLEEVE,12.1X20X44.5

42036-1288

$23.82

42036C

SLEEVE,12.1X18X88

42036-1321

$29.87

92002

BOLT,12X55

92002-1130

$10.65

92002A

BOLT,FLANGED,12X78

92002-1739

$13.38

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92046

BEARING-NEEDLE,BM202726

92046-1110

$23.45

92046A

BEARING-NEEDLE,BM202715

92046-1112

$20.89

92046B

BEARING-NEEDLE,18BM2416

92046-1144

$29.26

92049

SEAL-OIL,ARM

92049-1109

$9.28

92049A

SEAL-OIL,MHA18244

92049-1225

$9.28

92150

BOLT,FLANGED,12X63

92150-1258

$12.71

92150A

BOLT,12X114

92150-1878

Unavailable

39007B

ARM-SUSP,UNI TRAK

39007-1244

$270.75
