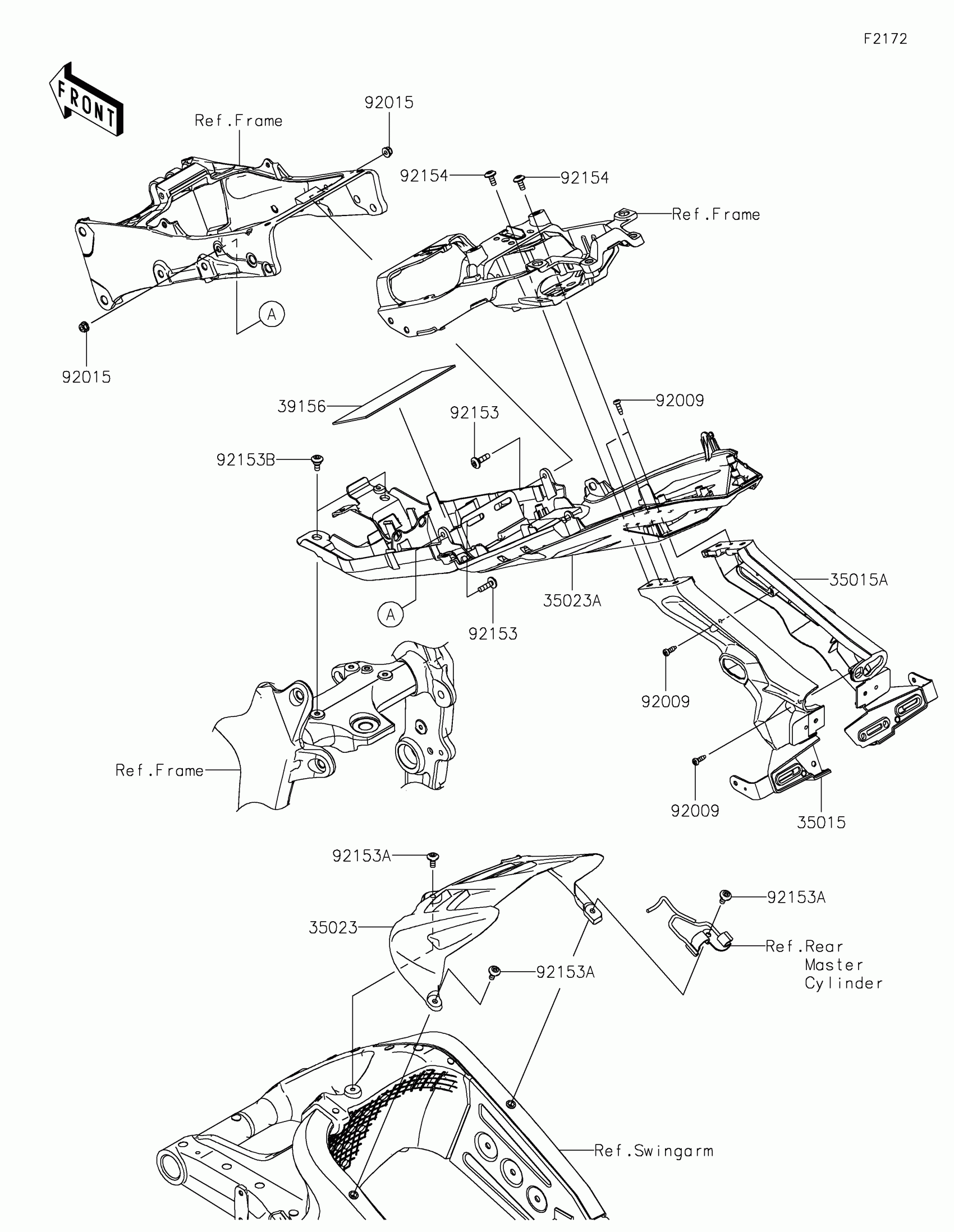

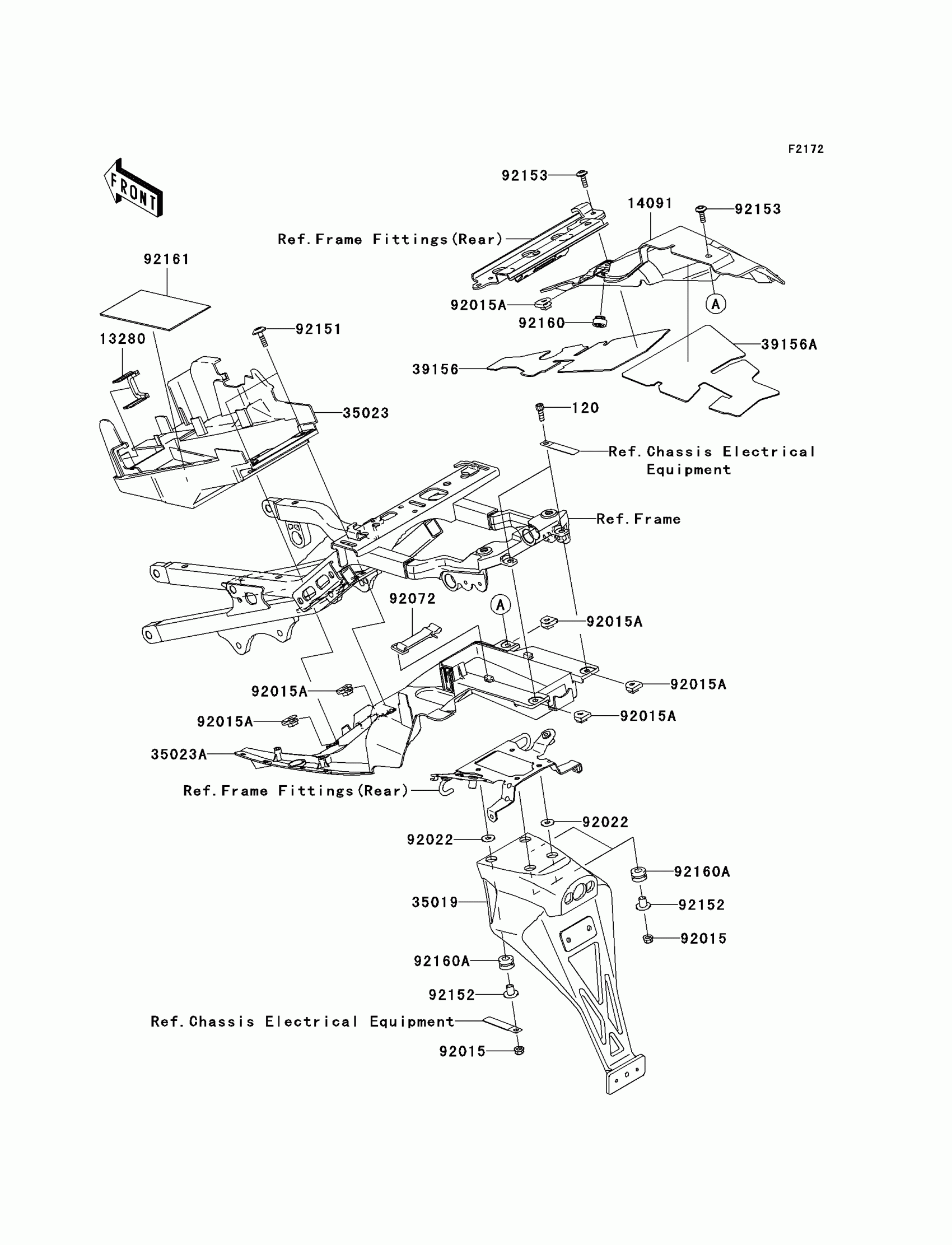

Kawasaki Ninja® ZX™-6R Rear Fender(s) Diagram

Description

Price

120

BOLT-SOCKET,6X18

120S0618

$1.66

13280

HOLDER,MAGNETIC SWITCH

13280-0122

$4.24

14091

COVER,HEAT GUARD

14091-0336

$59.88

35019

FLAP

35019-0020

$74.76

35023

FENDER-REAR,FR

35023-0038

$83.02

35023A

FENDER-REAR,RR

35023-0043

Unavailable

39156

PAD,JOINT PIPE COVER,FR

39156-0089

$51.13

39156A

PAD,JOINT PIPE COVER,RR

39156-0090

$38.51

92015

NUT,LOCK,FLANGED,6MM

92015-1603

$4.69

92015A

NUT,CLIP,6MM

92015-1904

$6.57

92022

WASHER,7X18X1.2

92022-1545

Unavailable

92072

BAND

92072-1085

$18.15

92151

BOLT,6X22

92151-1265

$7.71

92152

COLLAR

92152-1074

$6.22

92153

BOLT,6X18

92153-0816

$2.15

92160

DAMPER

92160-1041

$8.98

92160A

DAMPER,10X20X12

92160-1167

$4.69

92161

DAMPER,BATTERY

92161-0243

$4.60
