Description

Price

13070

GUIDE

13070-0126

$7.52

14079

HOLDER-ASSY

14079-0634

$83.54

21007

ROTOR,RR WHEEL

21007-0670

$30.18

21176

SENSOR,SPEED,RR

21176-1208

$117.67

41080

DISC,RR

41080-0752

$298.60

43048

PISTON-CALIPER

43048-0018

$41.04

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0242-DJ

$385.27

43082

PAD-ASSY-BRAKE

43082-0133

$52.05

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92043

PIN,PAD

92043-0106

$7.75

92043A

PIN

92043-1508

$13.75

92049

SEAL-OIL,PISTON

92049-1331

$9.28

92093

SEAL,PISTON

92093-1272

$19.45

92145

SPRING

92145-0810

$12.46

92150

BOLT,PLUG

92150-1692

$7.84

92154

BOLT,SOCKET,8X30

92154-1865

$4.69

92173

CLAMP,HOSE&SENSOR LINE

92173-1613

$1.42

92173A

CLAMP

92173-1798

$3.57

132

BOLT-FLANGED-SMALL,6X12

132BB0612

$2.06

132A

BOLT-FLANGED-SMALL,6X16

132BB0616

$2.49

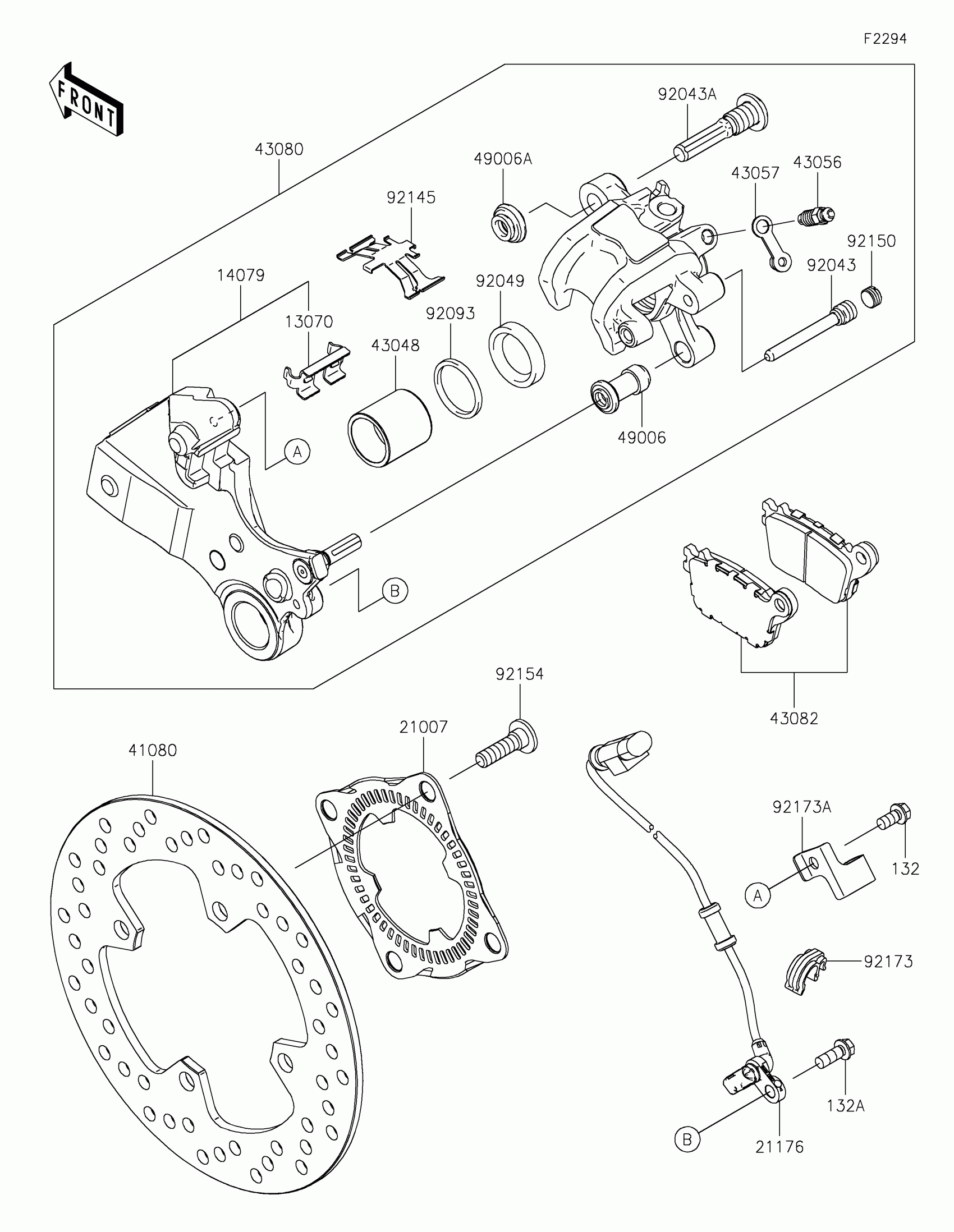

Kawasaki NINJA® ZX™-6R Rear Brake Diagram

GUIDE

HOLDER-ASSY

ROTOR,RR WHEEL

SENSOR,SPEED,RR

DISC,RR

PISTON-CALIPER

BREATHER

CAP-BREATHER

CALIPER-SUB-ASSY,RR,BLACK

PAD-ASSY-BRAKE

BOOT,CALIPER

BOOT,CALIPER

PIN,PAD

PIN

SEAL-OIL,PISTON

SEAL,PISTON

SPRING

BOLT,PLUG

BOLT,SOCKET,8X30

CLAMP,HOSE&SENSOR LINE

CLAMP

BOLT-FLANGED-SMALL,6X12

BOLT-FLANGED-SMALL,6X16
