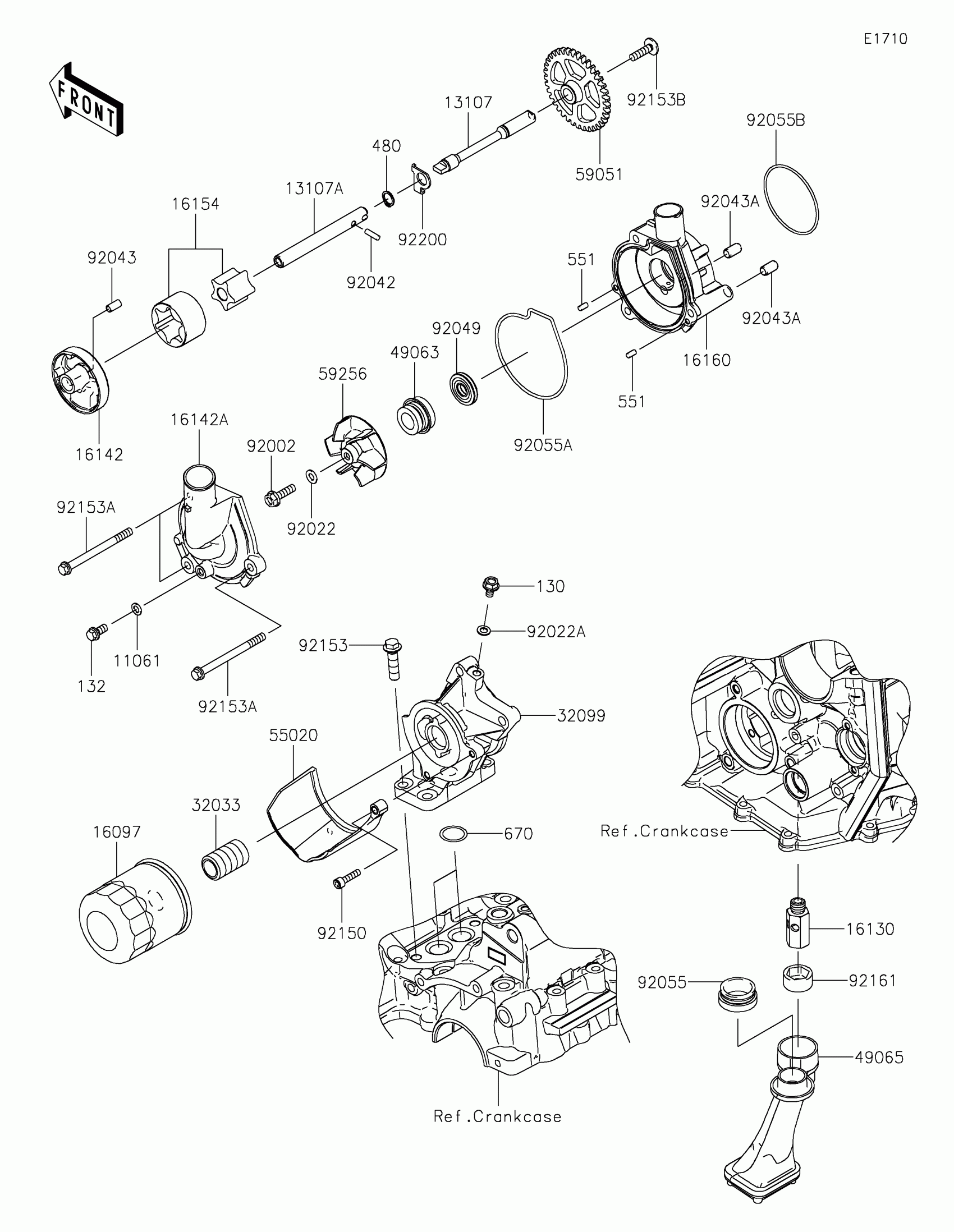

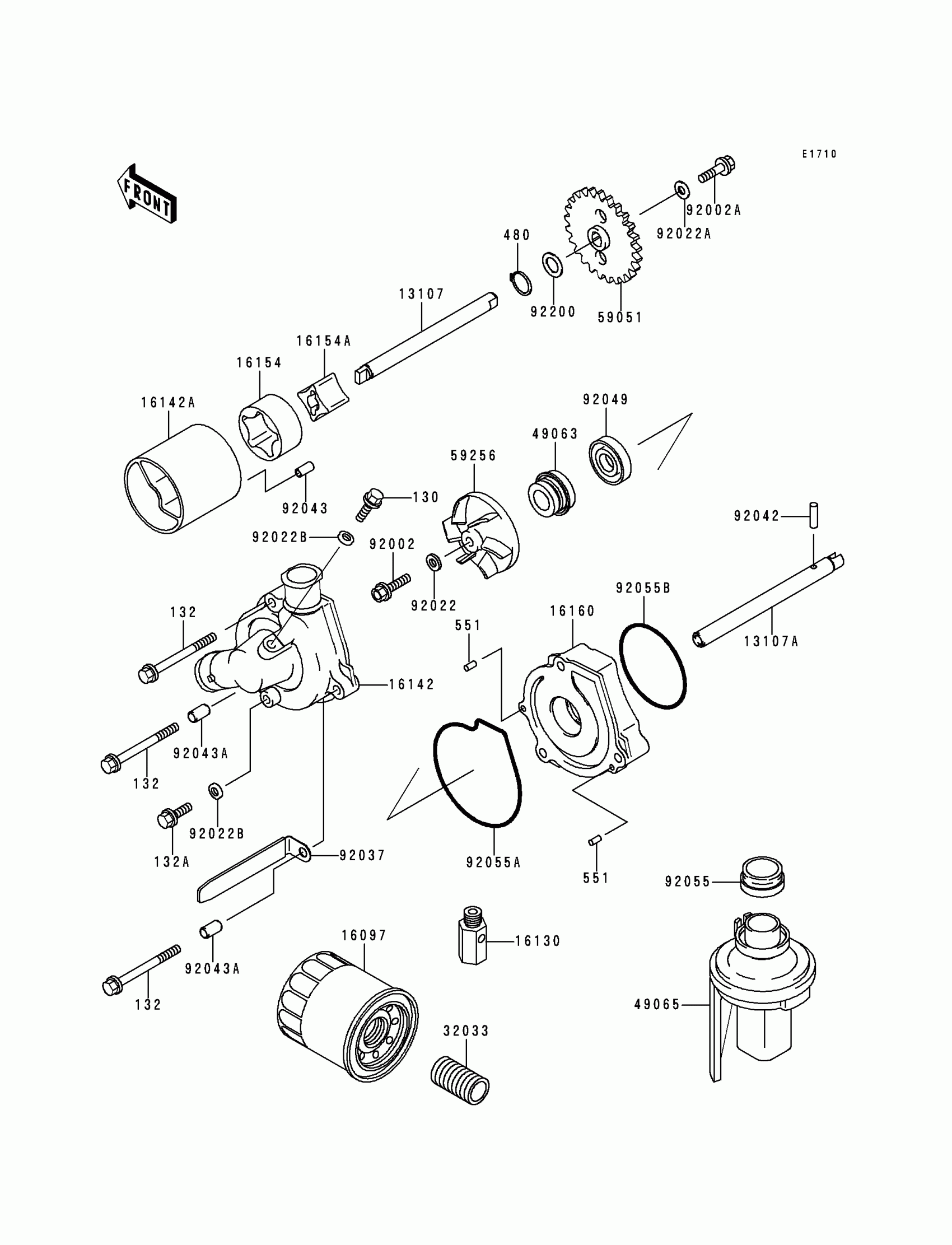

Kawasaki Ninja® ZX™-6R Oil Pump/Oil Filter Diagram

#

Description
Price

130

BOLT-FLANGED

130J0610

$2.33

132

BOLT-FLANGED-SMALL,6X60

132J0660

$4.89

132A

BOLT-FLANGED-SMALL,6X12

132Y0612

$1.92

480

CIRCLIP-TYPE-C,11MM

480J1100

$1.24

551

PIN-DOWEL,4X8

551A0408

$0.78

13107

SHAFT,PUMP,RH

13107-1333

Unavailable

13107A

SHAFT,PUMP,LH

13107-1334

Unavailable

16097

FILTER-ASSY-OIL

16097-1063

$14.50

16130

VALVE-ASSY-RELIEF

16130-1058

$41.98

16142

COVER-PUMP,WATER

16142-1132

Unavailable

16142A

COVER-PUMP,OIL

16142-1133

Unavailable

16154

ROTOR-PUMP,OUTER

16154-1075

$20.61

16154A

ROTOR-PUMP,INNER

16154-1076

$20.61

16160

BODY,OIL PUMP

16160-1238

Unavailable

32033

PIPE,OIL FILTER

32033-1535

$12.96

49063

SEAL-MECHANICAL,WATER PUMP

49063-1002

$20.06

49065

FILTER-OIL

49065-1073

$32.59

59051

GEAR-SPUR,33T

59051-1307

Unavailable

59256

IMPELLER

59256-1073

$36.12

92002

BOLT,6X22

92002-1154

$4.69

92002A

BOLT,6X20

92002-1237

$4.31

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92022A

WASHER,6X12.8X1.2

92022-1827

$4.69

92022B

WASHER,6.2X11X1

92022-304

$3.65

92037

CLAMP

92037-1679

$5.52

92042

PIN,DOWEL,4X15.8

92042-014

$0.43

92043

PIN,4.2X6X12

92043-1262

$4.31

92043A

PIN,6.2X8X14

92043-1263

$0.43

92049

SEAL-OIL,SC 11 28.55 5

92049-1336

Unavailable

92055

RING-O,OIL FILTER

92055-1503

$9.51

92055A

RING-O,WATER PUMP COVER

92055-1532

$15.60

92055B

RING-O,59.6X2.4

92055-3018

$6.22

92200

WASHER

92200-1009

$5.07
