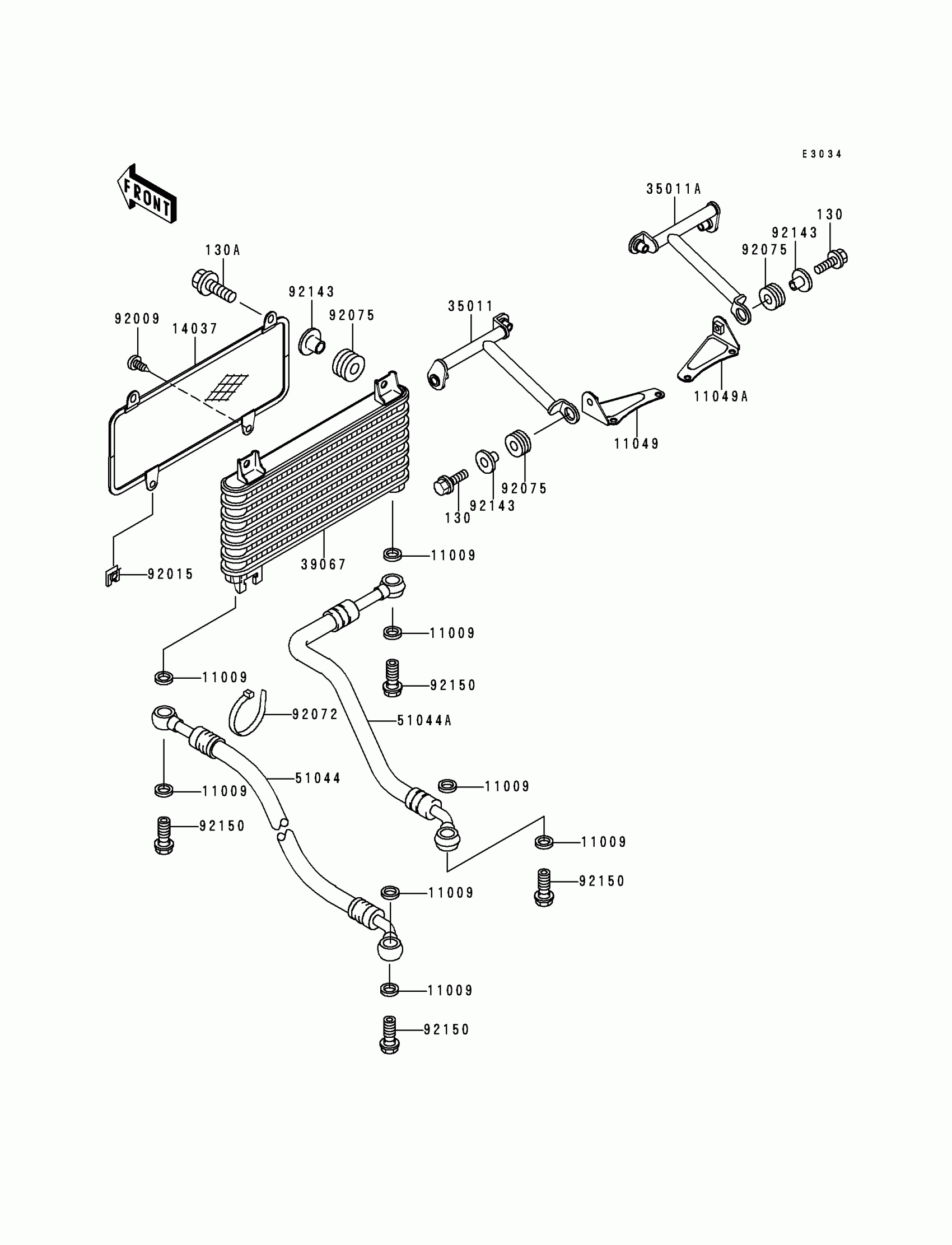

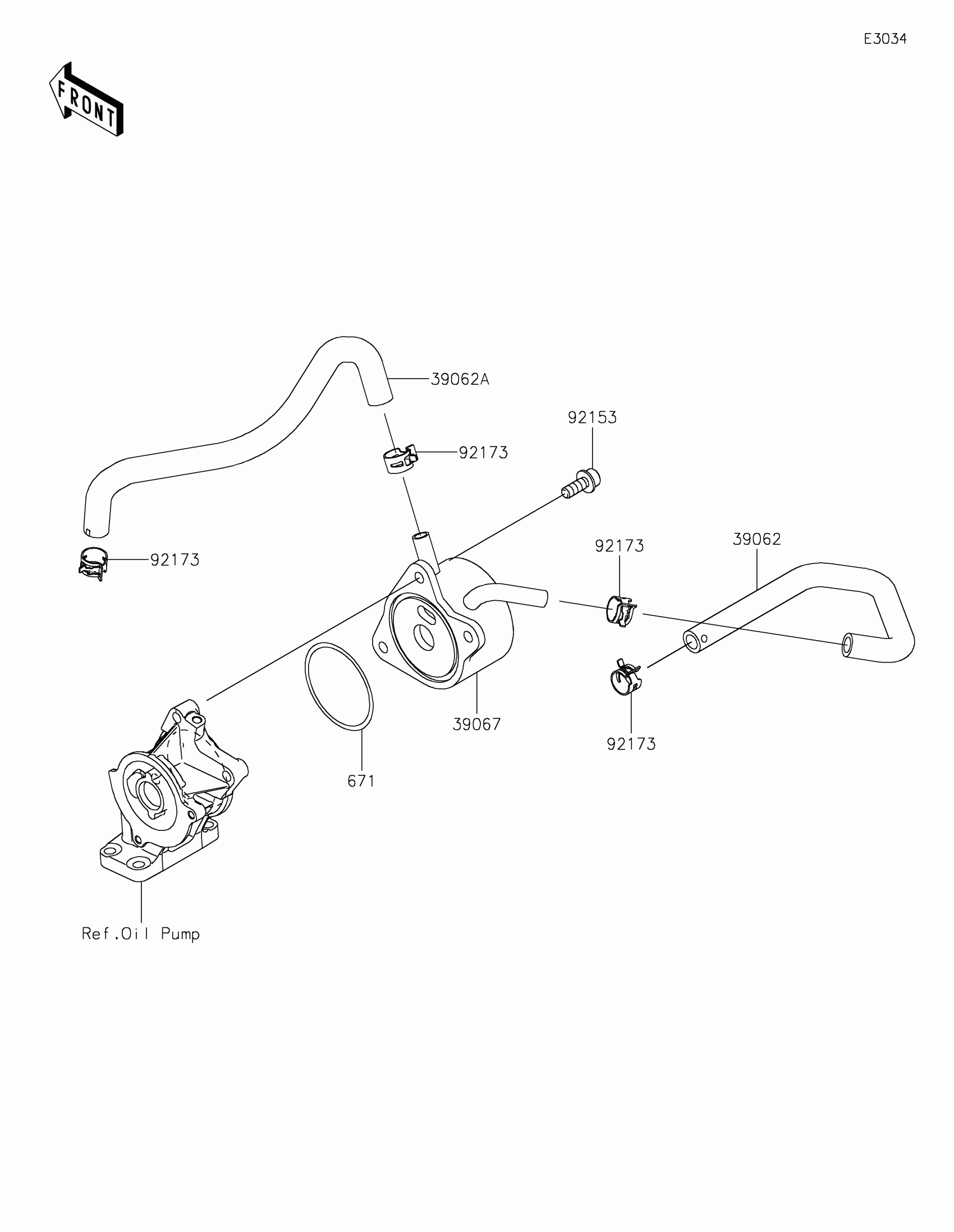

Kawasaki Ninja® ZX™-6R Oil Cooler Diagram

Description

Price

130

BOLT-FLANGED

130J0620

Unavailable

130A

BOLT-FLANGED,6X35

130J0635

Unavailable

11009

GASKET,14X19.5X1.4

11009-1461

$4.04

11049

BRACKET,LH

11049-1437

Unavailable

11049A

BRACKET,RH

11049-1438

Unavailable

14037

SCREEN,OIL COOLER

14037-1211

Unavailable

35011

STAY,LH

35011-1716

Unavailable

35011A

STAY,RH

35011-1717

Unavailable

39067

COOLER-OIL

39067-1062

$555.33

51044

TUBE-ASSY

51044-1175

Unavailable

51044A

TUBE-ASSY

51044-1176

$126.41

92009

SCREW,TAPPING,6X16

92009-1436

$2.56

92015

NUT,6MM

92015-1758

$5.15

92072

BAND,L=202

92072-1195

$1.16

92075

DAMPER,RUBBER

92075-1123

$3.81

92143

COLLAR

92143-1353

$6.54

92150

BOLT

92150-1945

$16.93
