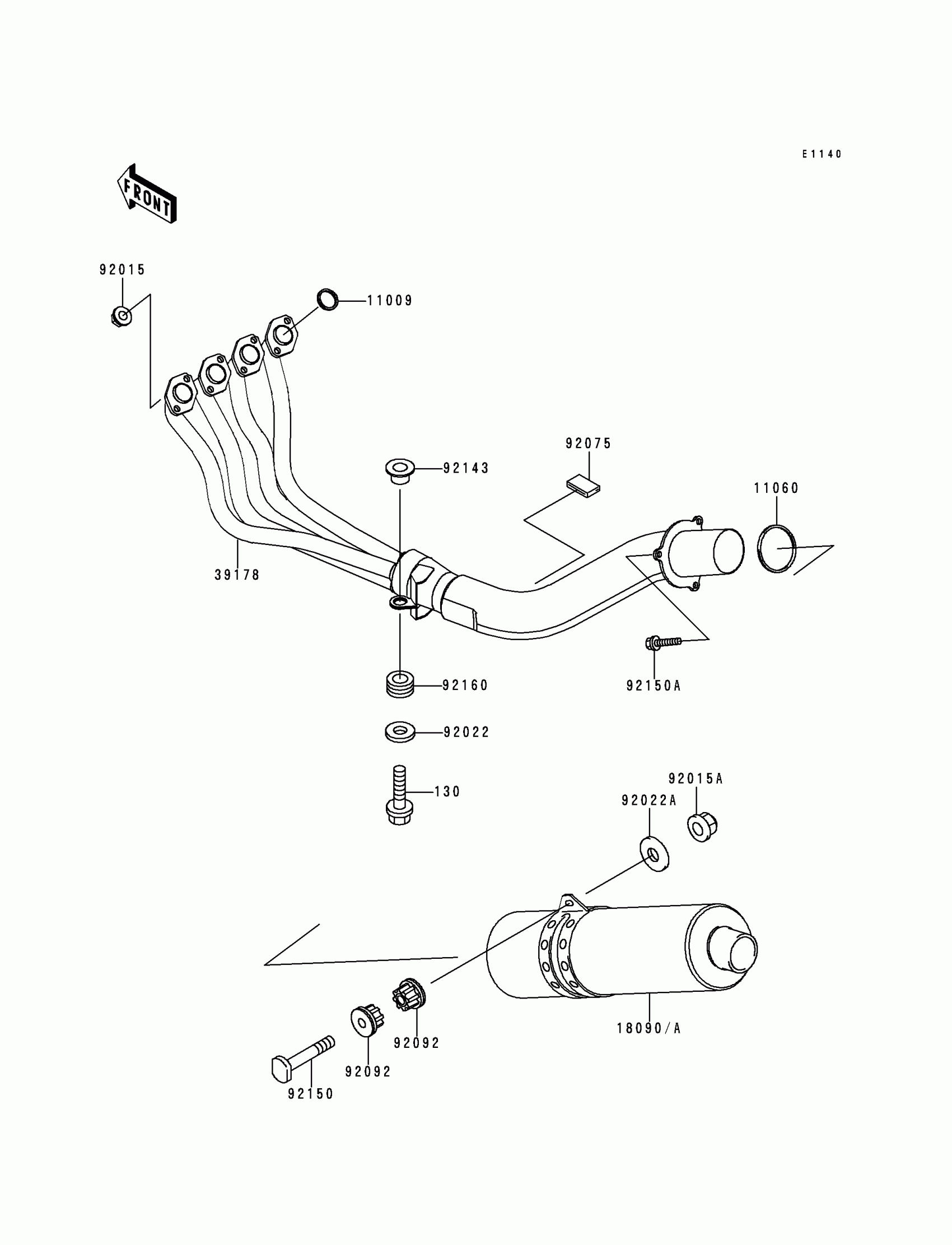

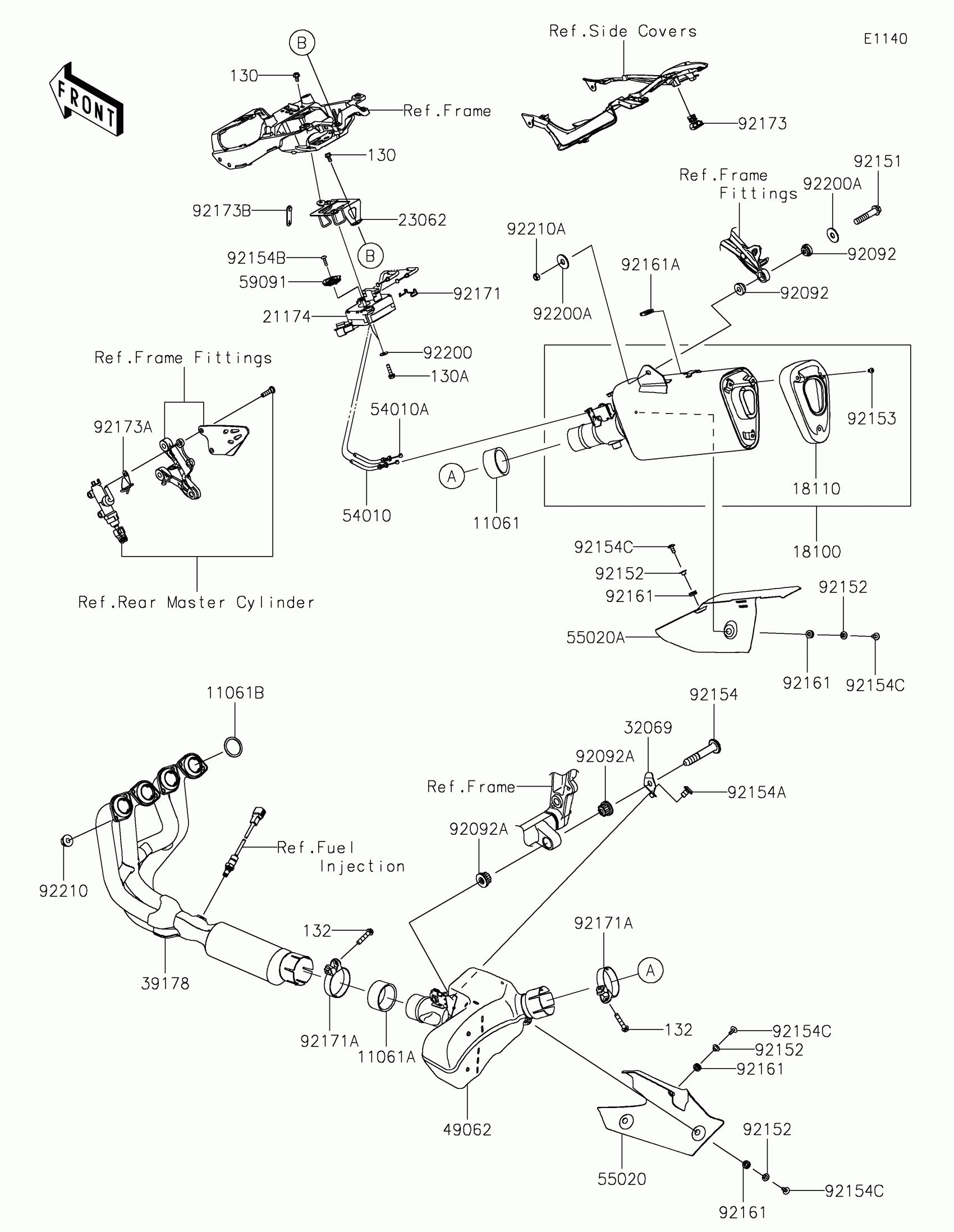

Kawasaki Ninja® ZX™-6R Muffler(s) Diagram

Description

Price

130

BOLT-FLANGED

130S0835

$4.15

11009

GASKET,EXHAUST PIPE HOLDER

11009-1856

$5.66

11060

GASKET,MUFFLER CONNECTING

11060-1213

$23.26

18090A

BODY-COMP-MUFFLER

18090-1488

Unavailable

39178

MANIFOLD-COMP-EXHAUST

39178-1253

Unavailable

92015

NUT,CAP,8MM,BLACK

92015-1174

$5.00

92015A

NUT,10MM

92015-1649

$5.52

92022

WASHER,9X24X3.2

92022-1295

$8.12

92022A

WASHER,10.5X26X2.3

92022-246

$3.39

92075

DAMPER

92075-1446

$4.69

92092

BUSHING-RUBBER,MUFFLER

92092-1013

$17.44

92143

COLLAR

92143-1709

$7.22

92150

BOLT,10X55

92150-1792

$8.66

92150A

BOLT,8X25

92150-1914

$7.49

92160

DAMPER,MUFFLER

92160-1543

$3.98
