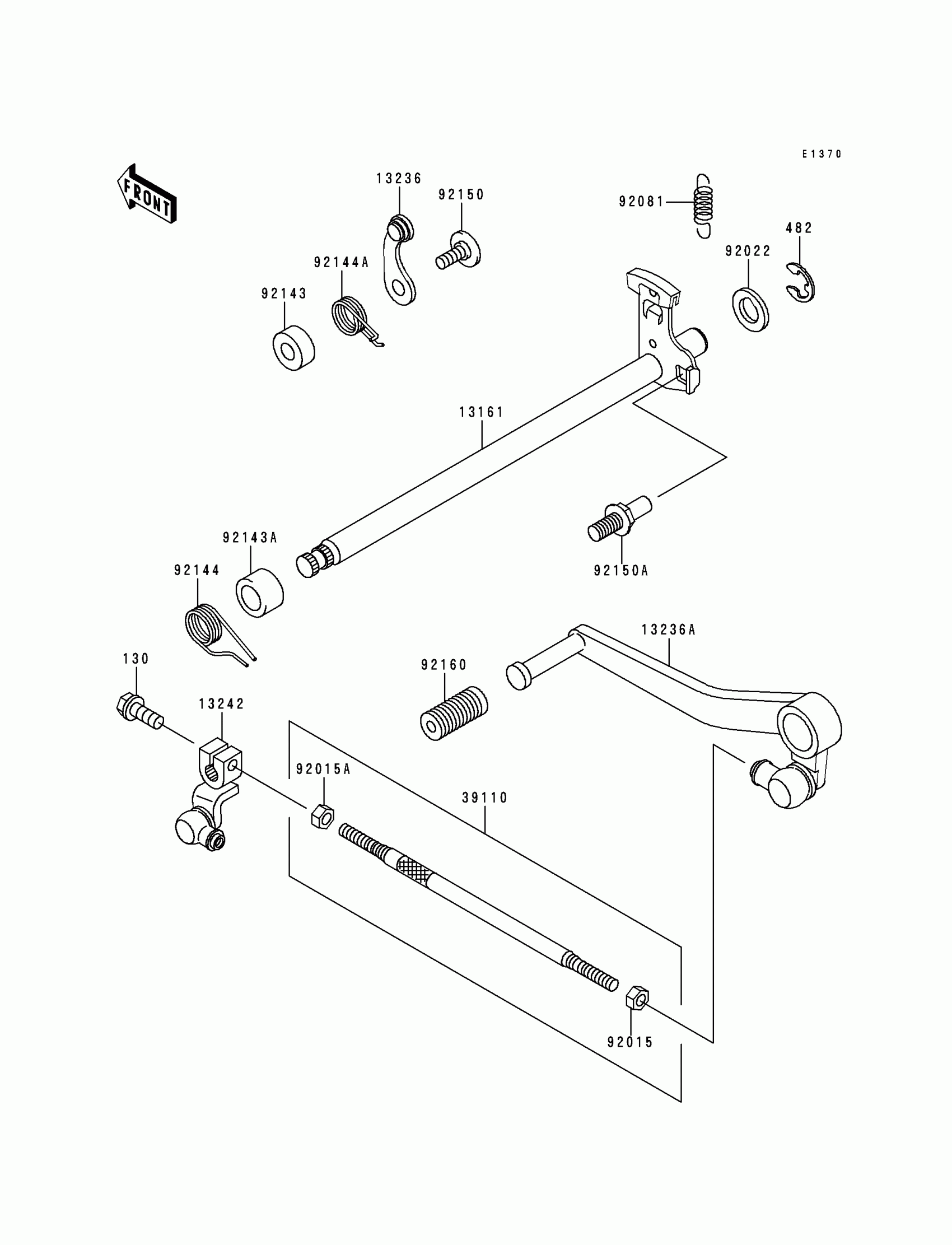

Kawasaki Ninja® ZX™-6R Gear Change Mechanism Diagram

Description

Price

130

BOLT-FLANGED,6X20

130S0620

Unavailable

482

CIRCLIP-TYPE-E,12MM

482J0200

$3.53

13161

LEVER-COMP-CHANGE SHAFT

13161-1216

Unavailable

13236

LEVER-COMP

13236-1243

$15.84

13236A

LEVER-COMP,CHANGE PEDAL

13236-1254

$122.88

13242

LEVER-ASSY-CHANGE

13242-1195

Unavailable

39110

ROD-ASSY-TIE

39110-1105

$33.36

92015

NUT,6MM

92015-1443

$2.99

92015A

NUT,LEFT HANDED,6MM

92015-1444

$3.57

92022

WASHER,CHANGE SHAFT

92022-1628

$5.71

92081

SPRING,PAWL RETURN

92081-1708

$5.66

92143

COLLAR

92143-1595

$9.22

92143A

COLLAR,13.2X19.9X12

92143-1733

$5.07

92144

SPRING,CHANGE PEDAL RETURN

92144-1074

$7.18

92144A

SPRING,GEAR POSITION

92144-1857

$8.56

92150

BOLT,SOCKET,6X16

92150-1737

$8.19

92150A

BOLT,RETURN SPRING

92150-1869

$8.37

92160

DAMPER,CHANGE PEDAL

92160-1036

$3.85
