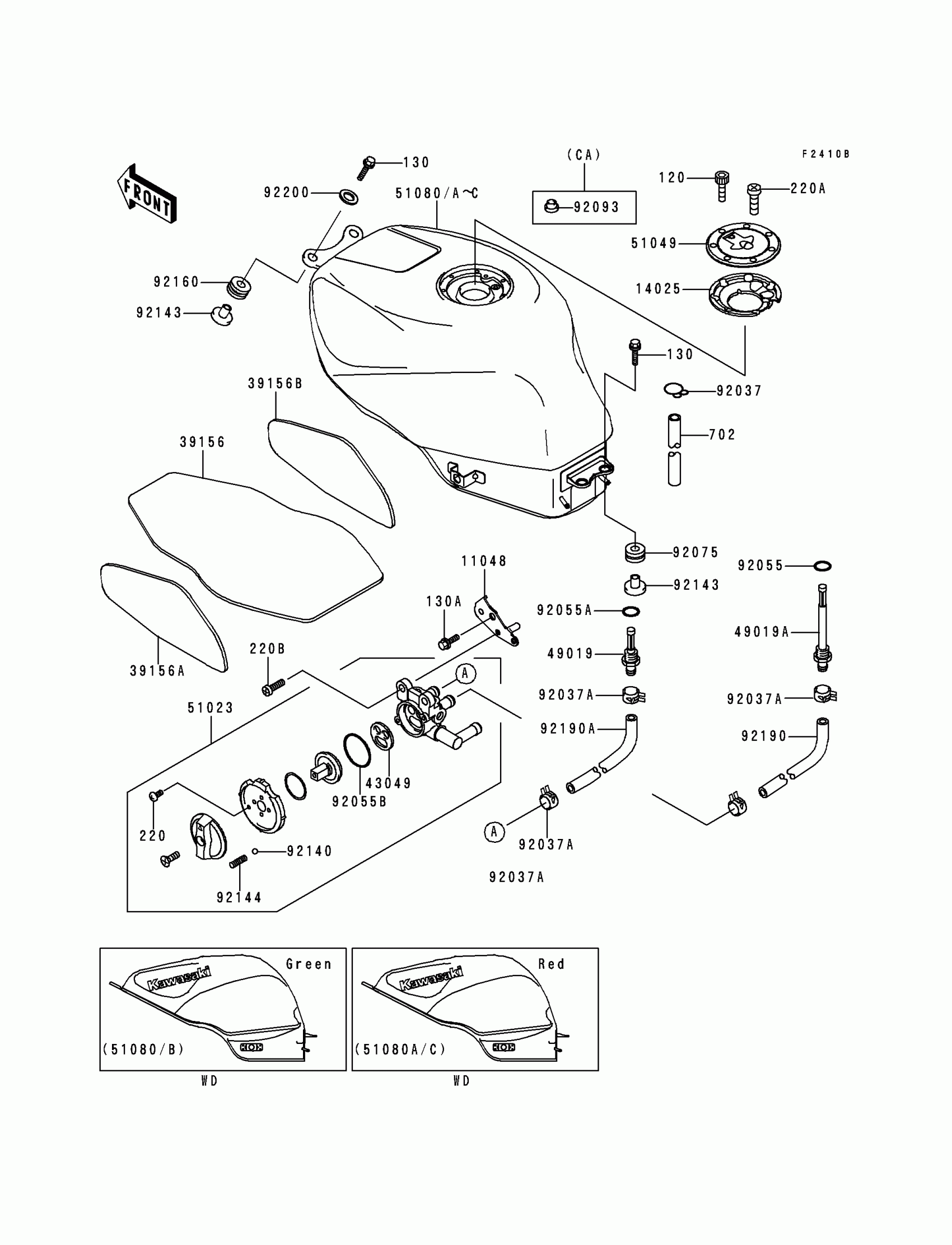

Kawasaki Ninja® ZX™-6R Fuel Tank(ZX600-F3) Diagram

#

Description
Price

11048

BRACKET,FUEL TAP

11048-1940

Unavailable

14025

COVER,TANK CAP

14025-1913

$21.55

39156

PAD,FUEL TANK,CNT

39156-1448

Unavailable

39156A

PAD,FUEL TANK,LH

39156-1479

Unavailable

39156B

PAD,FUEL TANK,RH

39156-1480

Unavailable

43049

PACKING,TAP VALVE

43049-1066

$7.26

49019

FILTER-FUEL

49019-1070

$18.46

49019A

FILTER-FUEL,"ON"

49019-1079

Unavailable

51023

TAP-ASSY,FUEL

51023-1217

Unavailable

51049

CAP-TANK,FUEL

51049-1091

$115.45

92037

CLAMP,TUBE

92037-010

$3.92

92037A

CLAMP,HOSE CLIP

92037-1181

$3.36

120

BOLT-SOCKET,5X12

120S0512

$1.71

130

BOLT-FLANGED,6X30,BLACK

130J0630

$4.04

130A

BOLT-FLANGED,8X12

130J0812

$0.67

220

SCREW-PAN-CROS,3X8

220B0308

$0.59

220A

SCREW-PAN-CROSS

220C0508

$0.55

220B

SCREW-PAN-CROS,6X8

220C0608

$1.81

702

TUBE-RUBBER,6X520

702A06520

$21.97

92055

RING-O,ID=9.5

92055-1386

$3.92

92055A

RING-O,11.5X1.5

92055-1387

$3.92

92055B

RING-O,TAP LEVER

92055-1419

$5.00

92075

DAMPER RUBBER,RR FENR

92075-209

$4.69

92140

BALL,STAINLESS,5/32"

92140-1051

$4.74

92143

COLLAR

92143-1515

$20.04

92144

SPRING,FUEL TAP KNOB

92144-1212

$4.35

92160

DAMPER

92160-1162

$5.00

92190

TUBE,FUEL,"ON"

92190-1586

$19.96

92190A

TUBE,FUEL,"RES"

92190-1587

$13.53

92200

WASHER,6.5X22X1.6

92200-1087

$3.94

51080

TANK-COMP-FUEL,L.GREEN

51080-5373-7F

Unavailable

51080A

TANK-COMP-FUEL,C.P.RED

51080-5374-A5

$946.30

51080B

TANK-COMP-FUEL,L.GREEN

51080-5379-7F

Unavailable

51080C

TANK-COMP-FUEL,C.P.RED

51080-5380-A5

Unavailable

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77
