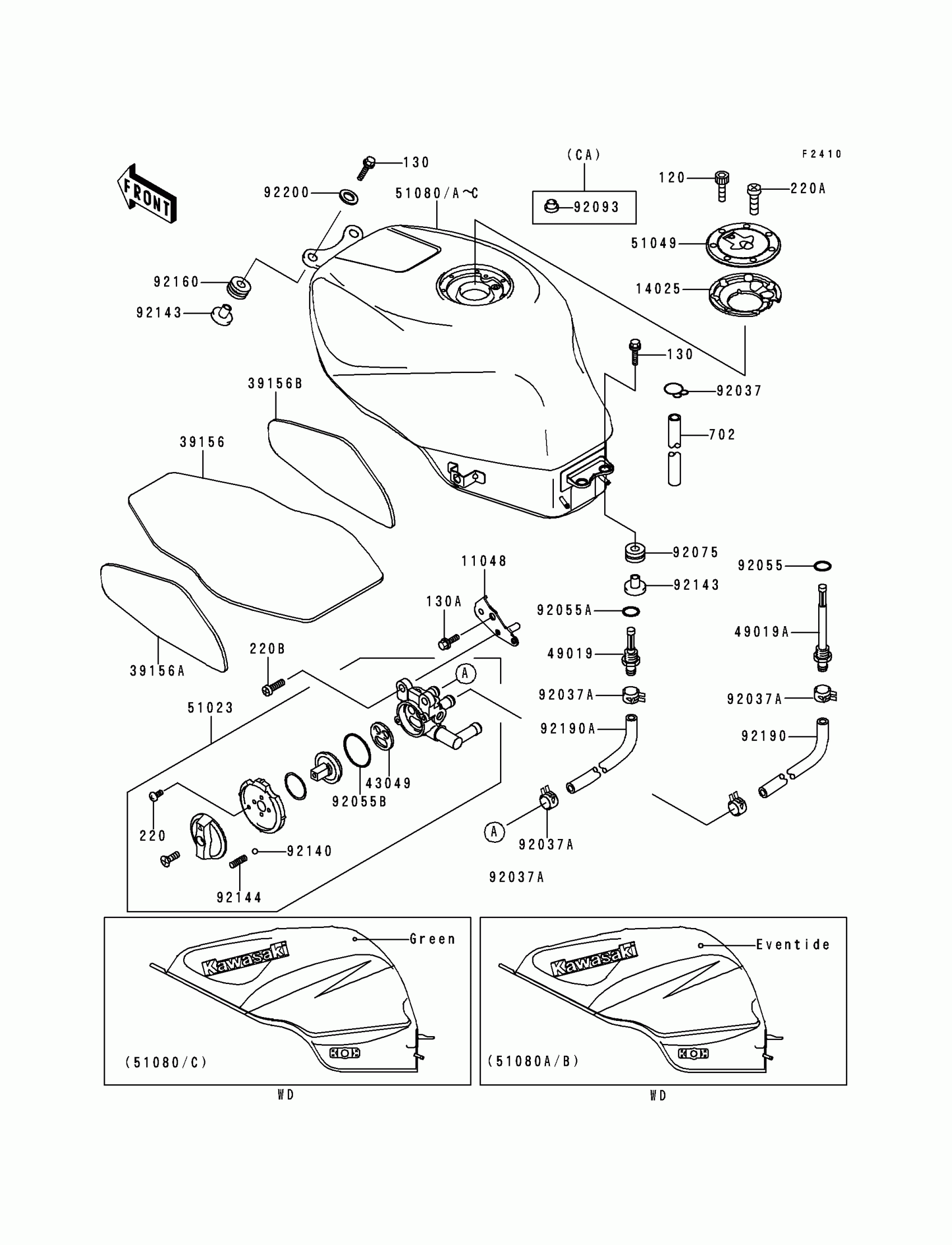

Kawasaki Ninja® ZX™-6R Fuel Tank(ZX600-F1) Diagram

#

Description
Price

11048

BRACKET,FUEL TAP

11048-1940

Unavailable

14025

COVER,TANK CAP

14025-1913

$17.42

39156

PAD,FUEL TANK,CNT

39156-1448

Unavailable

39156A

PAD,FUEL TANK,LH

39156-1479

Unavailable

39156B

PAD,FUEL TANK,RH

39156-1480

Unavailable

43049

PACKING,TAP VALVE

43049-1066

$5.54

49019

FILTER-FUEL

49019-1070

$13.93

49019A

FILTER-FUEL,"ON"

49019-1079

Unavailable

51023

TAP-ASSY,FUEL

51023-1217

Unavailable

51049

CAP-TANK,FUEL

51049-1091

$117.85

92037

CLAMP,TUBE

92037-010

$2.99

92037A

CLAMP,HOSE CLIP

92037-1181

$2.31

120

BOLT-SOCKET,5X12

120S0512

Unavailable

130

BOLT-FLANGED,6X30,BLACK

130J0630

Unavailable

130A

BOLT-FLANGED,8X12

130J0812

Unavailable

220

SCREW-PAN-CROS,3X8

220B0308

$0.54

220A

SCREW-PAN-CROSS

220C0508

Unavailable

220B

SCREW-PAN-CROS,6X8

220C0608

$1.33

702

TUBE-RUBBER,6X520

702A06520

$20.58

92055

RING-O,ID=9.5

92055-1386

$2.99

92055A

RING-O,11.5X1.5

92055-1387

$2.99

92055B

RING-O,TAP LEVER

92055-1419

$3.81

92075

DAMPER RUBBER,RR FENR

92075-209

$3.57

92140

BALL,STAINLESS,5/32"

92140-1051

$4.32

92143

COLLAR

92143-1515

$16.82

92144

SPRING,FUEL TAP KNOB

92144-1212

$3.98

92160

DAMPER

92160-1162

$3.81

92190

TUBE,FUEL,"ON"

92190-1586

$18.64

92190A

TUBE,FUEL,"RES"

92190-1587

$12.88

92200

WASHER,6.5X22X1.6

92200-1087

$3.01

51080

TANK-COMP-FUEL,GREEN/WHITE

51080-5168-CK

Unavailable

51080A

TANK-COMP-FUEL,EVENTIDE/RED

51080-5169-5Z

Unavailable

51080B

TANK-COMP-FUEL,EVENTIDE/RED

51080-5170-5Z

$998.16

51080C

TANK-COMP-FUEL,GREEN/WHITE

51080-5175-CK

Unavailable

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93
