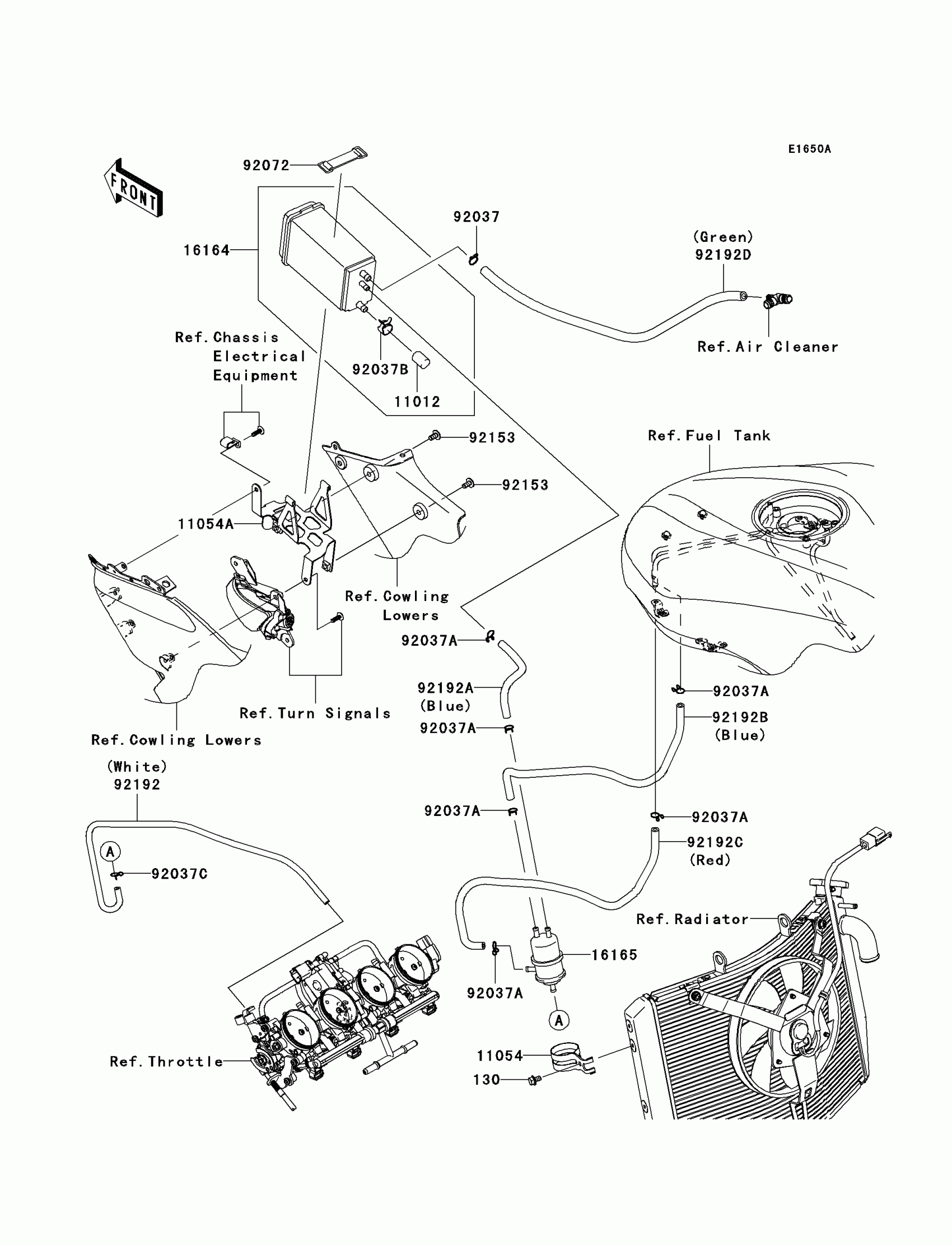

Kawasaki Ninja® ZX™-6R Fuel Evaporative System(P8F/P8FA)(CA) Diagram

Description

Price

130

BOLT-FLANGED,6X10

130BA0610

$1.20

11012

CAP,CANISTER

11012-1388

$8.51

11054

BRACKET,SEPARATOR

11054-0012

$11.00

11054A

BRACKET,CANISTER

11054-0682

$52.33

16164

CANISTER

16164-1054

$130.07

16165

SEPARATOR

16165-1001

$90.01

92037

CLAMP-HOSE

92037-1104

$1.45

92037A

CLAMP,TUBE

92037-147

$7.34

92037B

CLAMP,CANISTER

92037-1512

$6.57

92037C

CLAMP

92037-1712

$5.00

92072

BAND,L=50

92072-1419

$16.08

92153

BOLT,SOCKET,6X12

92153-1275

$2.68

92192

TUBE,SEP.-THROBO,WHITE

92192-0278

$13.73

92192A

TUBE,SEP.-CANISTER,BLUE

92192-0626

$35.23

92192B

TUBE,TANK-SEP.,BLUE

92192-0627

$51.85

92192C

TUBE,SEP.-TANK,RED

92192-0628

$63.83

92192D

TUBE,CANISTER-ASV.GREEN

92192-0629

$51.85
