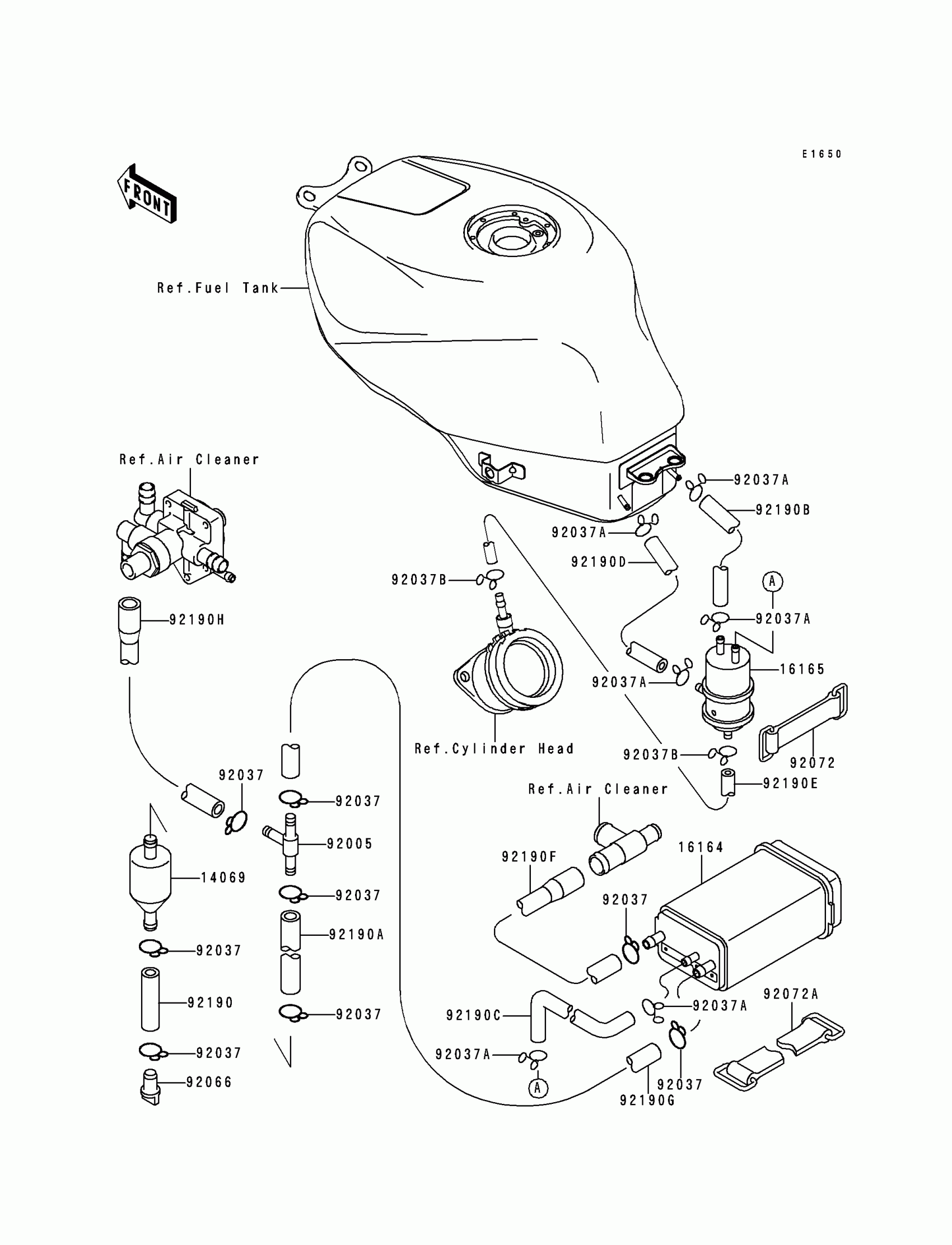

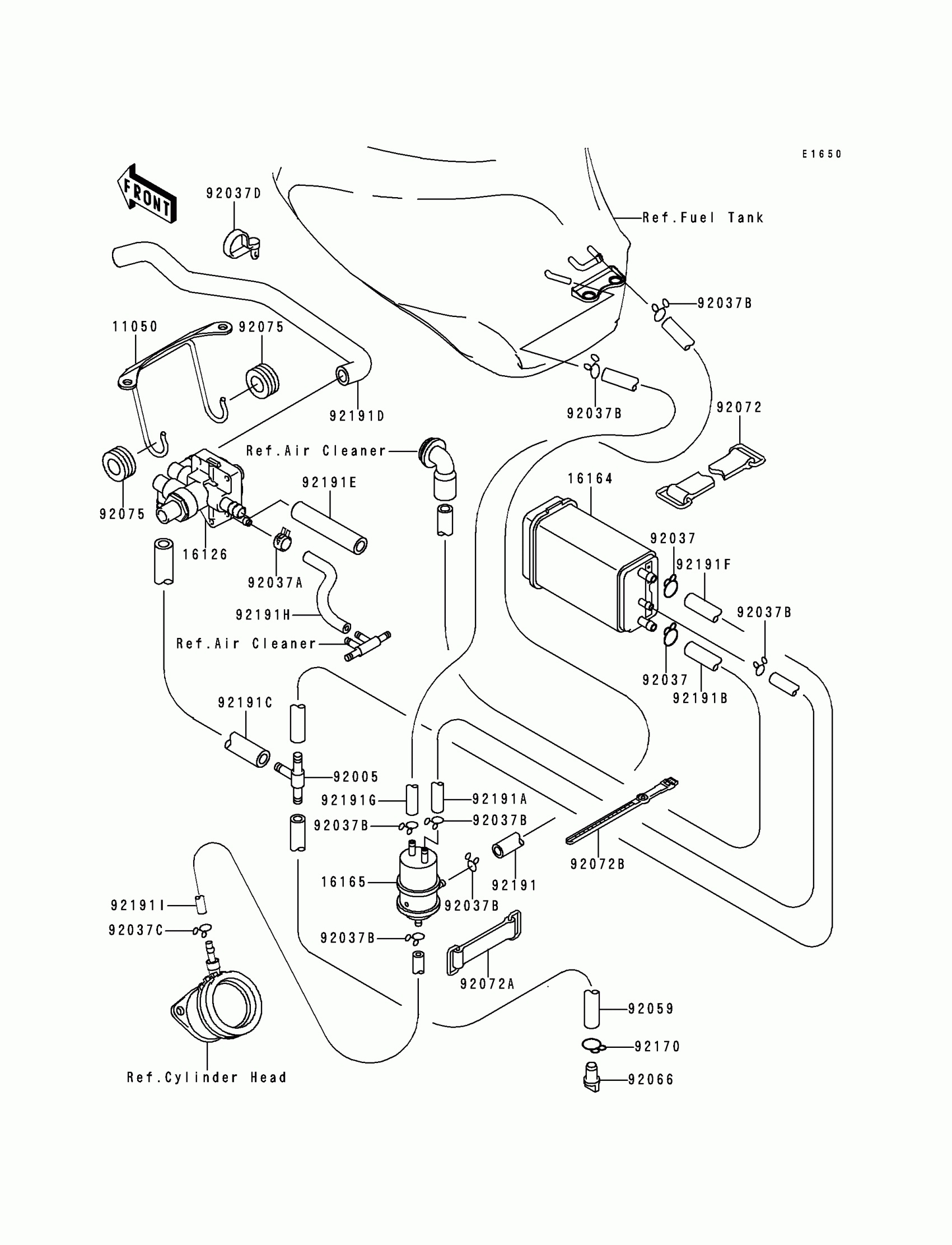

Kawasaki Ninja® ZX™-6R Fuel Evaporative System Diagram

Description

Price

11050

BRACKET

11050-1729

$23.77

16126

VALVE

16126-1354

$144.07

16164

CANISTER

16164-1052

$131.28

16165

SEPARATOR

16165-1001

$90.01

92005

FITTING

92005-1304

$9.50

92037

CLAMP-HOSE

92037-1104

$1.45

92037A

CLAMP,TUBE

92037-1461

$3.88

92037B

CLAMP,TUBE

92037-147

$7.34

92037C

CLAMP

92037-1712

$5.00

92037D

CLAMP,SPEED,L=80.5

92037-1903

$7.84

92059

TUBE,7X12X440,YELLOW

92059-1440

$41.13

92066

PLUG,DRAIN

92066-1211

$8.51

92072

BAND,L=90

92072-045

$14.90

92072A

BAND,L=50

92072-066

$16.08

92072B

BAND,L=202

92072-1195

$1.56

92075

DAMPER,MUFFLER

92075-1621

$8.21

92170

CLAMP

92170-1529

$4.78

92191

TUBE,SEPARATOR-TANK,RED

92191-1234

$10.67

92191A

TUBE,SEPARATOR-CANIST,BLUE

92191-1236

$23.35

92191B

TUBE,CANISTER-FILTER,GREEN

92191-1237

$29.60

92191C

TUBE,VALVE-FITTING,YELLOW

92191-1238

$16.70

92191D

TUBE,AIR FILTER-VALVE

92191-1239

Unavailable

92191E

TUBE,CARB-VALVE

92191-1240

$3.41

92191F

TUBE,FITTING-CANIST,YELLOW

92191-1250

$26.43

92191G

TUBE,SEPARATOR-TANK,BLUE

92191-1268

$10.67

92191H

TUBE,FITTING-VALVE

92191-1275

$4.52

92191I

TUBE,SEPARATOR-CARB,WHITE

92191-1276

$7.64
