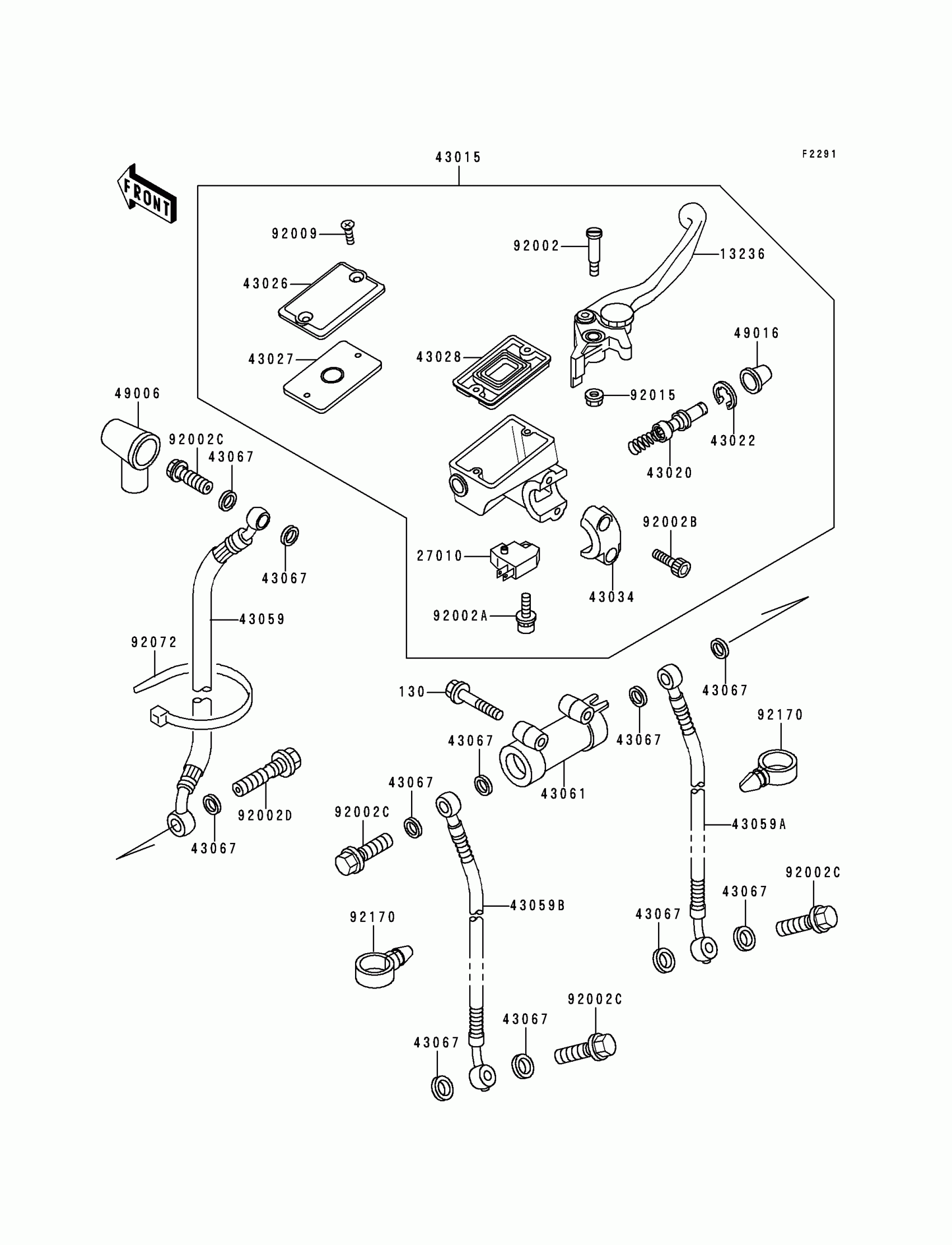

Kawasaki Ninja® ZX™-6R Front Master Cylinder Diagram

Description

Price

130

BOLT-FLANGED,6X35

130J0635

Unavailable

13236

LEVER-COMP,FRONT BRAKE

13236-1185

$63.66

27010

SWITCH,BRAKE

27010-1170

$35.04

43015

CYLINDER-ASSY-MASTER,FR

43015-1500

$476.24

43020

PISTON-COMP-BRAKE,FR

43020-1054

$65.22

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-1076

$42.62

43027

PLATE-DIAPHRAGM

43027-1055

$7.81

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

$22.90

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1053

$35.87

43059

HOSE-BRAKE,FR,UPP

43059-1873

Unavailable

43059A

HOSE-BRAKE,FR,LWR,RH

43059-1908

Unavailable

43059B

HOSE-BRAKE,FR,LWR,LH

43059-1910

Unavailable

43061

JOINT-BRAKE

43061-1002

$72.14

43067

WASHER,10.5X15X1.5

43067-001

$2.15

49006

BOOT,DUST

49006-1040

$11.49

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

92002

BOLT,LEVER SET,BLACK

92002-1322

$11.71

92002A

BOLT,SCREW,4X12

92002-1323

$3.92

92002B

BOLT,SOCKET,6X20,BLACK

92002-1324

$7.65

92002C

BOLT,OIL,L=23

92002-1888

$5.48

92002D

BOLT,OIL,L=37

92002-1909

$11.83

92009

SCREW,4MM

92009-1458

$3.21

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92072

BAND,L=250

92072-1237

$2.14

92170

CLAMP

92170-1067

$7.45
