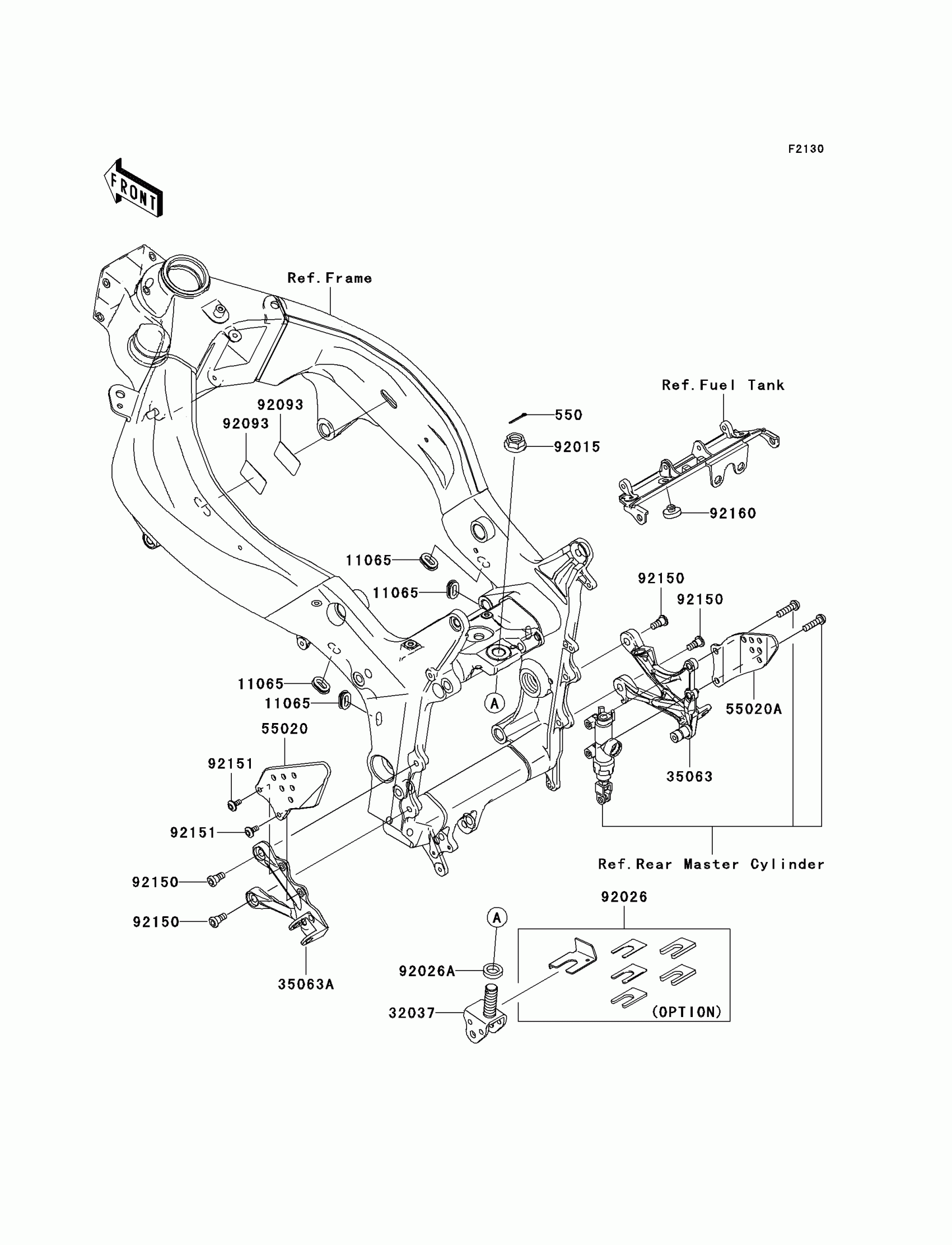

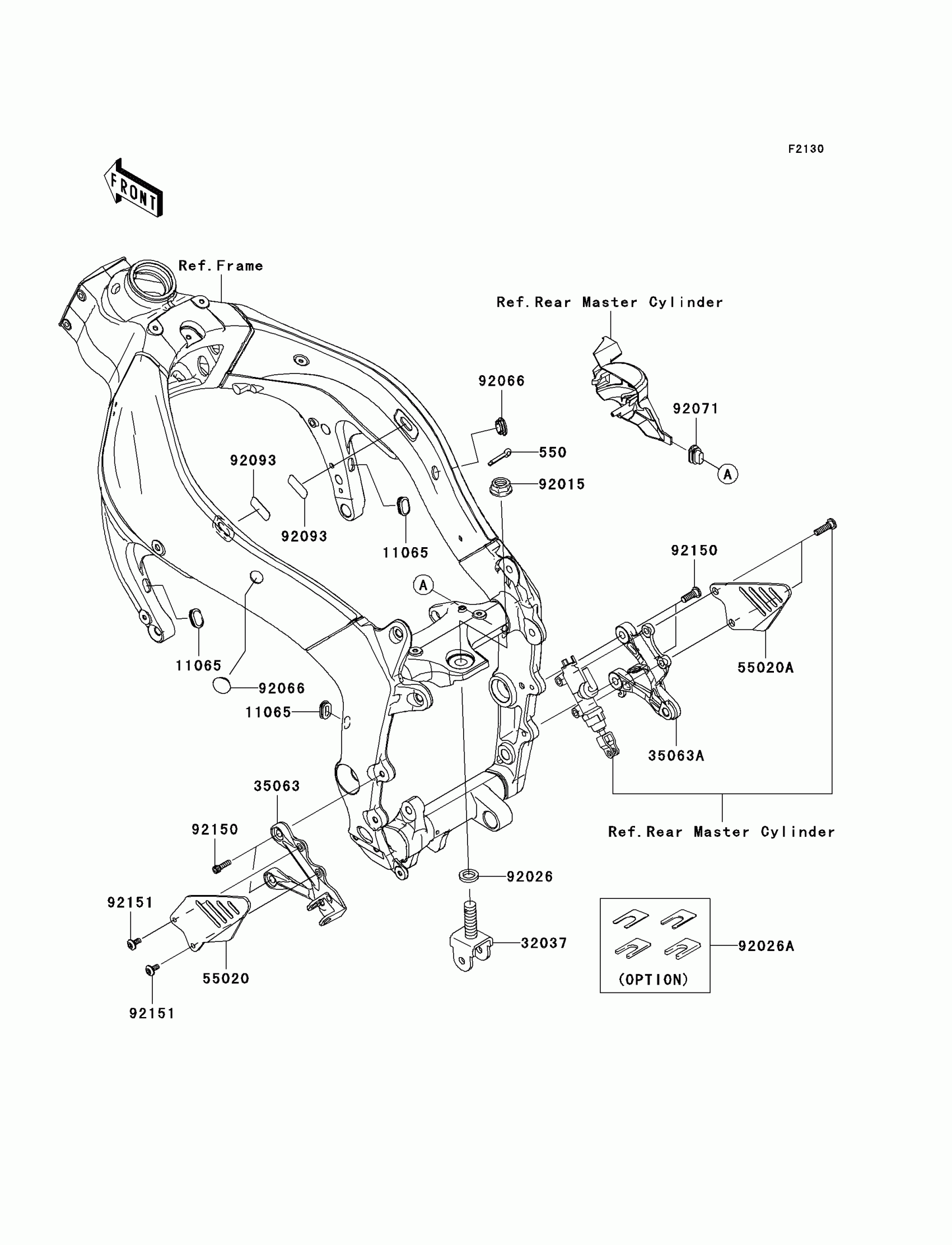

Kawasaki NINJA® ZX™-6R Frame Fittings(Front) Diagram

Description

Price

550

PIN-COTTER,3X25

550S3025

$2.58

11065

CAP

11065-0095

$3.87

32037

BRACKET-SHOCKABSORBER

32037-1887

$27.33

35063

STAY,FR,LH,F.S.BLACK

35063-0160-18R

$128.54

35063A

STAY,FR,RH,F.S.BLACK

35063-0590-18R

$124.32

55020

GUARD,FRONT STEP,LH

55020-0478

$28.37

55020A

GUARD,FRONT STEP,RH

55020-0479

$28.37

92015

NUT,FLANGED,16MM

92015-1881

$23.10

92026

SPACER,16.5X26X4

92026-0142

$7.60

92026A

SPACER,SET

92026-1586

$121.69

92066

PLUG

92066-0096

$3.87

92071

GROMMET

92071-0045

$5.48

92093

SEAL

92093-0154

$3.67

92150

BOLT,SOCKET,8X25

92150-1837

$5.00

92151

BOLT,SOCKET,6X14

92151-1654

$1.83
