Cowling(ZX600-F3)

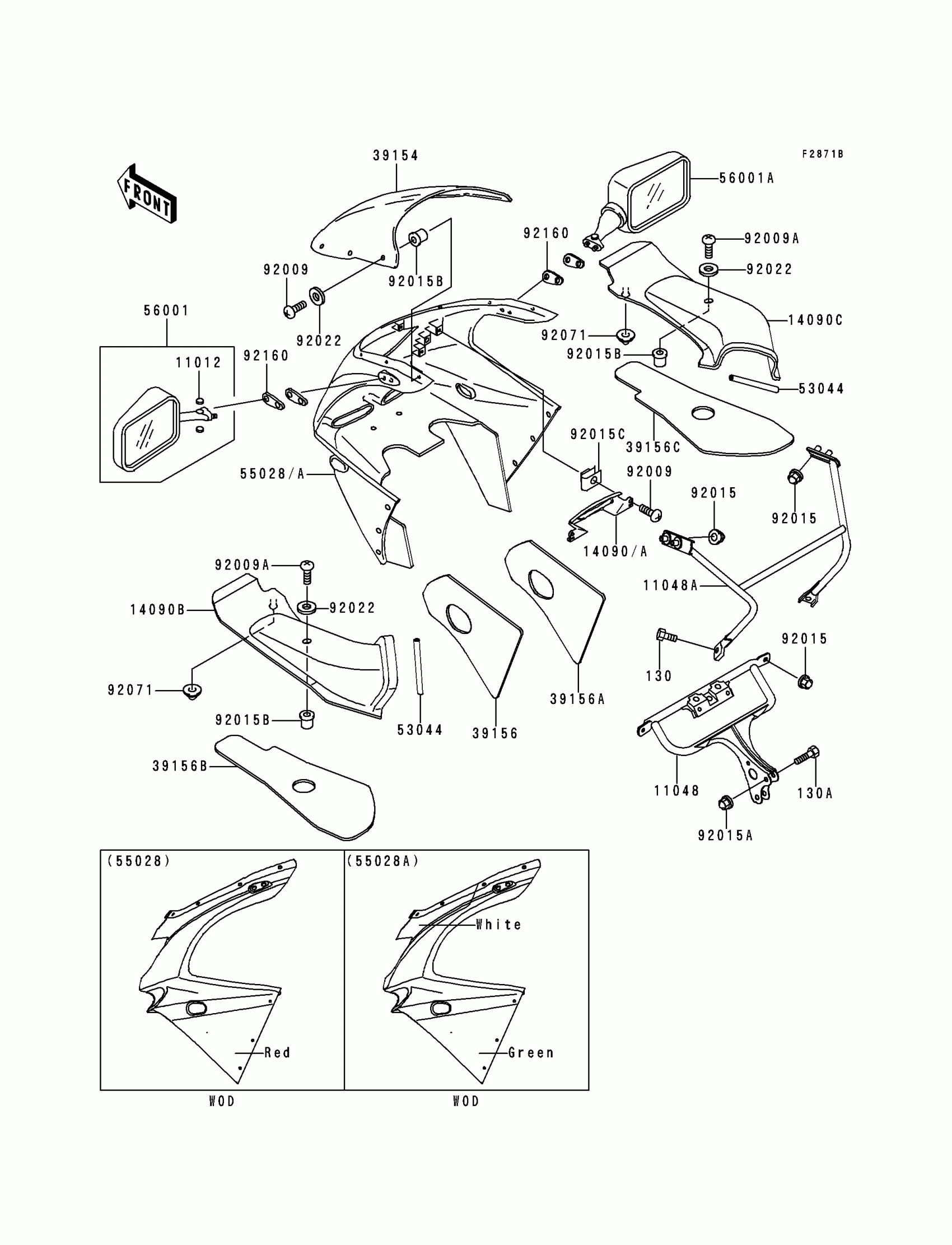

Kawasaki Ninja® ZX™-6R Cowling(ZX600-F3) Diagram
#
Description
Price
130
BOLT-FLANGED,6X14,BLACK
130J0614
$2.33
130A
BOLT-FLANGED,8X30
130J0830
$4.15
11012
CAP,MIRROR
11012-1818
$3.43
11048
BRACKET,UPP COWLING
11048-1866
Unavailable
11048A
BRACKET,MIRROR
11048-1867
$146.31
14090
COVER,POSITION LAMP,C.P.RED
14090-1404-A5
Unavailable
14090A
COVER,POSITION LAMP,WHITE
14090-1404-R1
$67.31
14090B
COVER,AIR DUCT,LH
14090-1542
$55.10
14090C
COVER,AIR DUCT,RH
14090-1543
Unavailable
39154
WINDSHIELD
39154-5007
Unavailable
39156
PAD,UPP COWLING,LH
39156-1435
Unavailable
39156A
PAD,UPP COWLING,RH
39156-1436
Unavailable
39156B
PAD,AIR DUCT COVER,LH
39156-1449
Unavailable
39156C
PAD,AIR DUCT COVER,RH
39156-1450
Unavailable
53044
TRIM,AIR DUCT COVER
53044-1265
$11.99
55028
COWLING,UPP,C.P.RED
55028-1330-A5
$678.39
55028A
COWLING,UPP,GREEN/WHITE
55028-1330-CK
Unavailable
56001
MIRROR-ASSY,LH,EBONY
56001-1376-6C
$83.79
56001A
MIRROR-ASSY,RH,EBONY
56001-1377-6C
$83.79
92009
SCREW,5X16,BLACK
92009-1654
$3.13
92009A
SCREW,5X25
92009-1657
$4.39
92015
NUT,CAP,6MM,BLACK
92015-1170
$0.64
92015A
NUT,CAP,8MM,BLACK
92015-1174
$5.00
92015B
NUT,WELL,5MM
92015-1757
$7.29
92015C
NUT,5MM
92015-1798
$6.57
92022
WASHER,NYLON,5.3X11.5X1.5
92022-1521
$3.92
92071
GROMMET
92071-1222
$6.55
92160
DAMPER,MIRROR
92160-1089
$7.29
