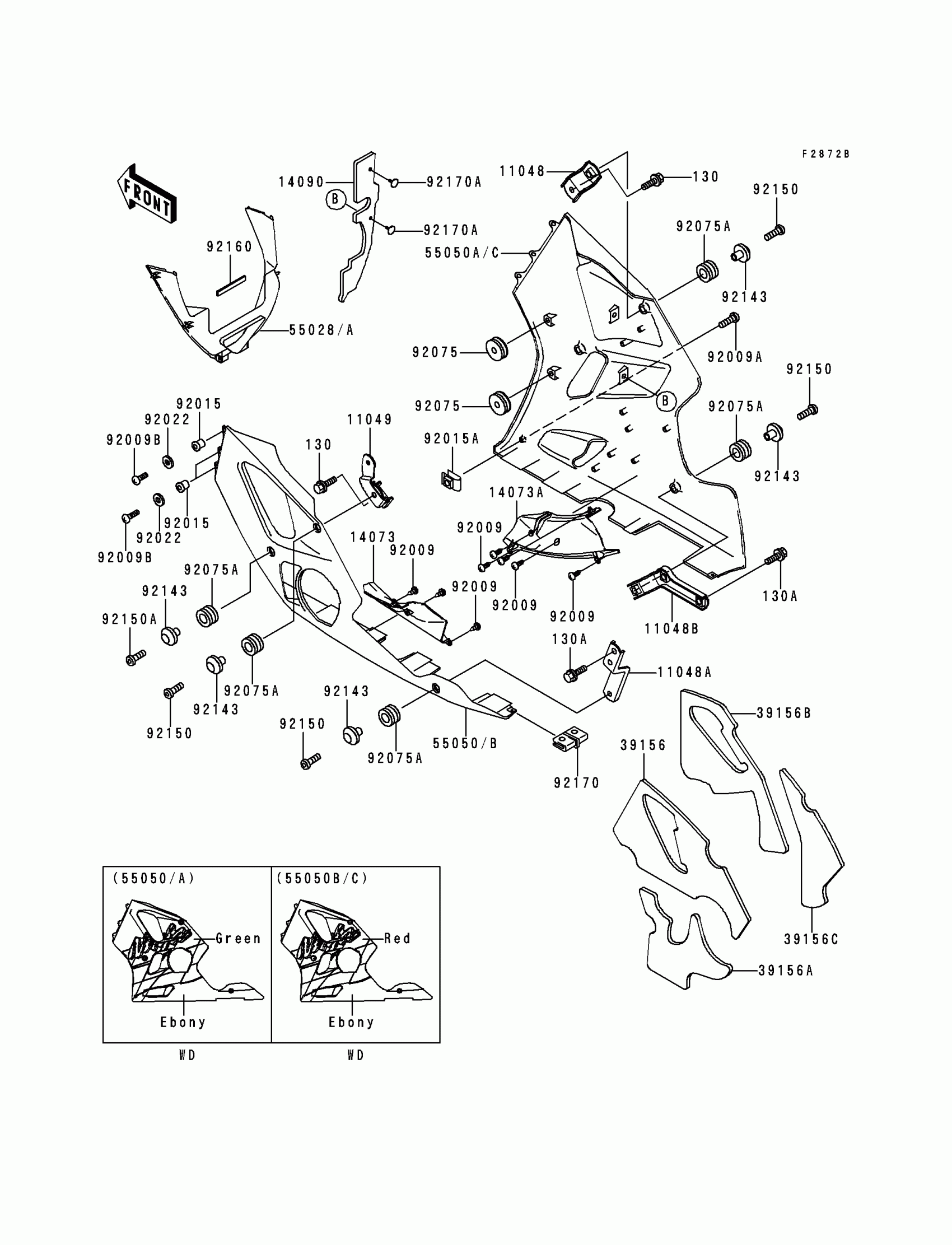

Kawasaki Ninja® ZX™-6R Cowling Lowers(ZX600-F3) Diagram

#

Description
Price

11048

BRACKET,LWR COWLING,UPP

11048-1868

Unavailable

11048A

BRACKET,LWR COWLING,LH,LWR

11048-1869

Unavailable

11048B

BRACKET,LWR COWLING,RH,LWR

11048-1870

$13.44

11049

BRACKET,RESERVOIR TANK

11049-1274

Unavailable

14073

DUCT,AIR,LH

14073-1631

Unavailable

14073A

DUCT,AIR,RH

14073-1632

$35.63

14090

COVER,LWR COWLING,RH

14090-1602

Unavailable

39156

PAD,LWR COWLING,LH,UPP

39156-1437

Unavailable

39156A

PAD,LWR COWLING,LH,LWR

39156-1438

$21.62

39156B

PAD,LWR COWLING,RH,FR

39156-1439

Unavailable

39156C

PAD,LWR COWLING,RH,RR

39156-1440

Unavailable

55028

COWLING,LWR,FR,C.P.RED

55028-1333-A5

$149.39

55028A

COWLING,LWR,FR,L.GREEN

55028-1333-7F

Unavailable

55050

COWLING-ASSY.,LWR,LH,EBONY/GRN

55050-5060-FH

Unavailable

55050A

COWLING-ASSY.,LWR,RH,EBONY/GRN

55050-5061-FH

Unavailable

55050B

COWLING-ASSY.,LWR,LH,EBONY/RED

55050-5063-2N

$646.65

55050C

COWLING-ASSY.,LWR,RH,EBONY/RED

55050-5064-2N

Unavailable

92009

SCREW,TAPPING,5X10

92009-1332

$3.92

92009A

SCREW,5X16,BLACK

92009-1654

$3.13

92009B

SCREW,5X20,BLACK

92009-1656

$3.96

92015

NUT,WELL,5MM

92015-1757

$7.29

92015A

NUT,5MM

92015-1798

$6.57

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.92

130

BOLT-FLANGED,6X10

130V0610

Unavailable

130A

BOLT-FLANGED,6X14

130V0614

Unavailable

92075

DAMPER

92075-1067

$4.69

92075A

DAMPER

92075-1634

$4.69

92143

COLLAR,BLACK

92143-1226

$11.49

92150

BOLT,SOCKET,6X18

92150-1553

$6.22

92150A

BOLT,SOCKET,6X30

92150-1554

$5.52

92160

DAMPER

92160-1632

$7.62

92170

CLAMP

92170-1230

$9.33

92170A

CLAMP

92170-1442

$4.20

92009C

SCREW,5X25

92009-1657

$4.39
