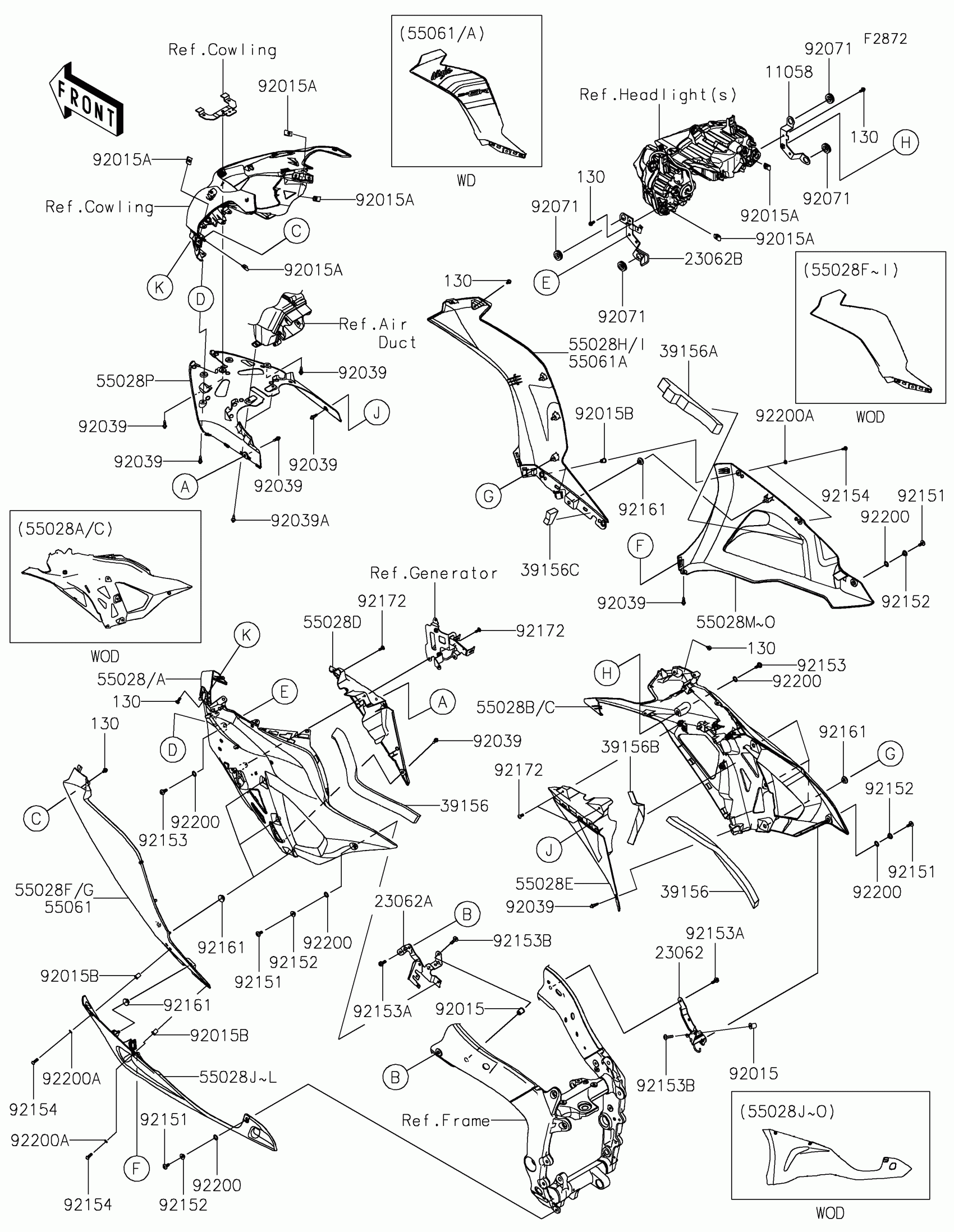

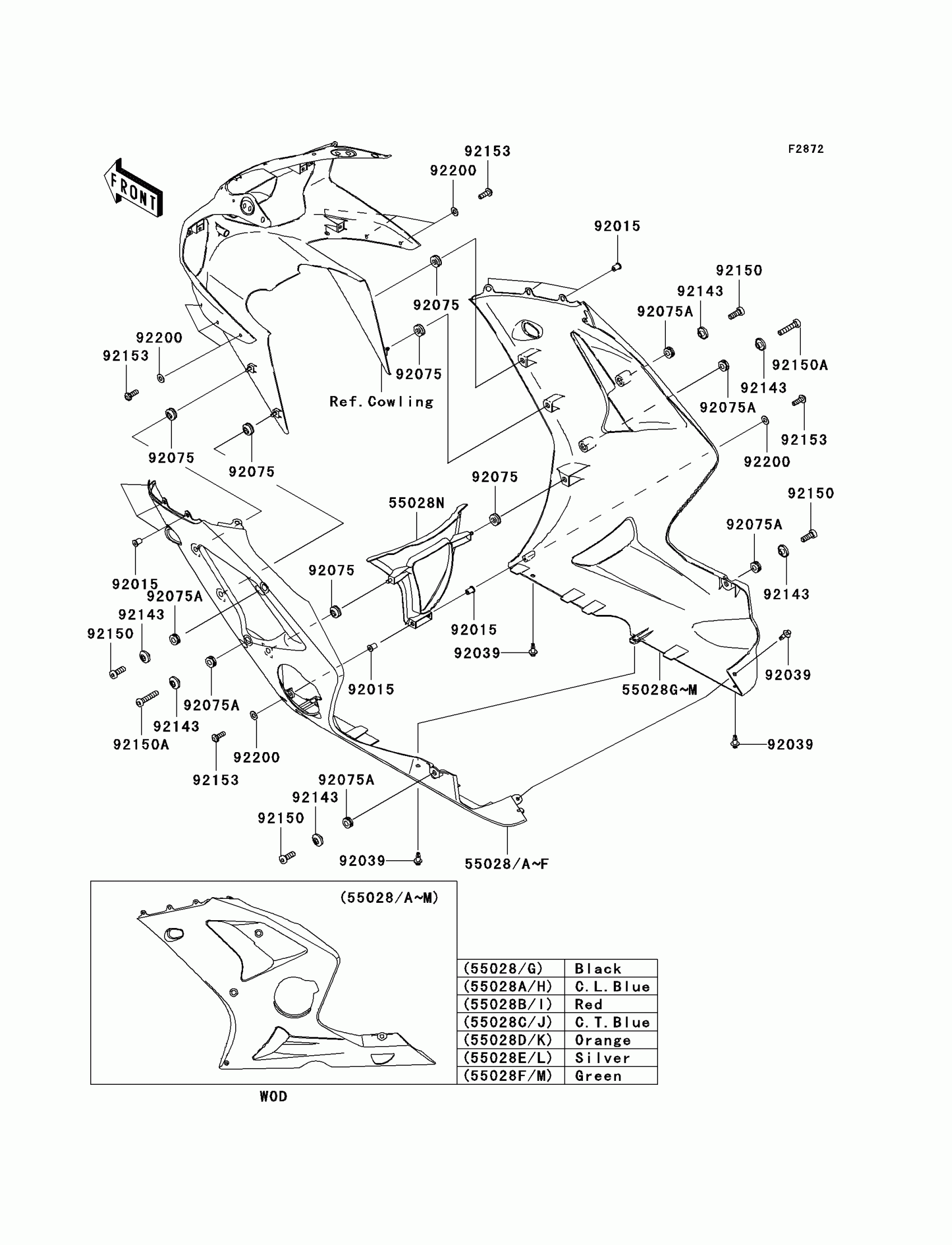

Kawasaki NINJA® ZX™-6R Cowling Lowers Diagram

BRACKET,HEAD LAMP,RH

11058-0584

$9.53

BRACKET-COMP,SIDE COWLING,RH

23062-1160

$30.85

BRACKET-COMP

23062-1416

$51.08

BRACKET-COMP,HEAD LAMP,LH

23062-1417

$34.72

PAD,390X30X15

39156-2841

$7.47

PAD,LWR COWLING

39156-2843

$16.92

PAD,173X20X2

39156-2844

$3.25

PAD,SIDE COWLING

39156-2900

$9.87

COWLING,SIDE,LH,M.G.GRAY

55028-0844-45W

$390.17

COWLING,SIDE,LH,EBONY

55028-0844-H8

$390.17

COWLING,SIDE,RH,M.G.GRAY

55028-0845-45W

$390.17

COWLING,SIDE,RH,EBONY

55028-0845-H8

$390.17

COWLING,SIDE,LH,INNER

55028-0846

$44.89

COWLING,SIDE,RH,INNER

55028-0847

$44.17

COWLING,SIDE,LH,OUTER,P.R.WHT

55028-0848-68N

$246.39

COWLING,SIDE,LH,OUTER,GRAY

55028-0848-69P

$239.45

COWLING,SIDE,RH,OUTER,P.R.WHT

55028-0849-68N

$252.29

COWLING,SIDE,RH,OUTER,GRAY

55028-0849-69P

$245.18

COWLING,LWR,LH,P.R.WHITE

55028-0850-68N

$192.20

COWLING,LWR,LH,M.M.D.GRAY

55028-0850-69P

$186.78

COWLING,LWR,LH,EBONY

55028-0850-H8

$186.78

COWLING,LWR,RH,P.R.WHITE

55028-0851-68N

$199.23

COWLING,LWR,RH,M.M.D.GRAY

55028-0851-69P

$192.22

COWLING,LWR,RH,EBONY

55028-0851-H8

$192.22

COWLING,FR

55028-0852

$64.16

COWLING,SIDE,LH,OUTER,L.GREEN

55061-5329-777

$334.43

COWLING,SIDE,RH,OUTER,L.GREEN

55061-5330-777

$340.16

NUT

92015-1700

$8.58

NUT,5MM

92015-1710

$6.22

NUT,WELL,5MM

92015-1757

$7.29

RIVET

92039-0060

$3.39

RIVET

92039-0068

$2.97

GROMMET

92071-1043

$5.46

BOLT,SOCKET,6X14

92151-1654

$1.83

COLLAR,6.15X10.15X6

92152-1535

$3.74

BOLT,SOCKET,6MM

92153-0489

$3.73

BOLT,FLANGED,6X16

92153-0713

$2.12

BOLT,SOCKET,6X22

92153-1356

$2.15

BOLT,SOCKET,5X16

92154-0209

$2.75

DAMPER,6X20X7.5

92161-1937

$1.94

SCREW,TAPPING,5X14

92172-0265

$1.34

WASHER,10.4X15.9X0.5

92200-0157

$2.15

WASHER,5.2X10X1.0

92200-1820

$0.63

BOLT-FLANGED,5X12

130BA0512

$2.22
