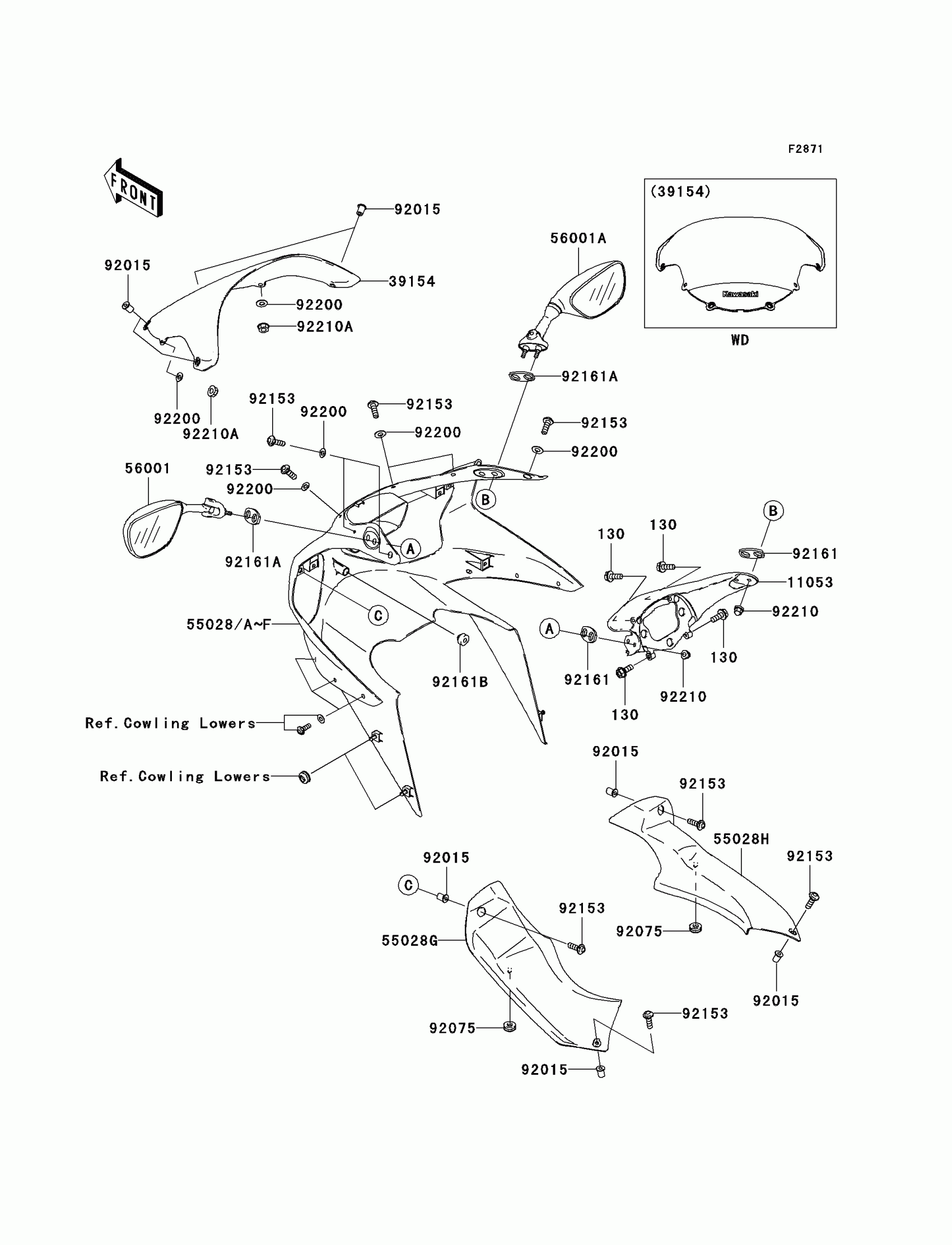

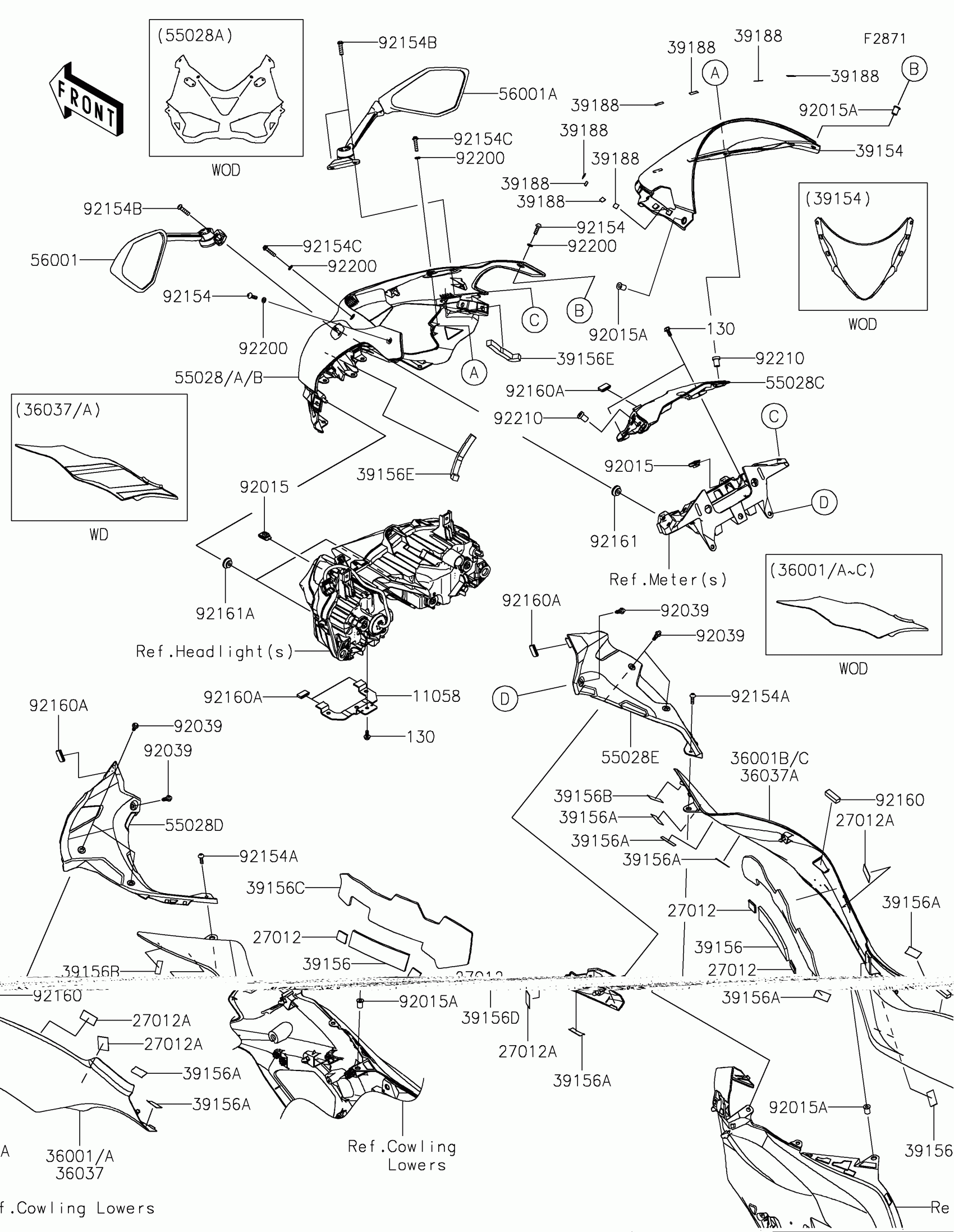

Kawasaki NINJA® ZX™-6R Cowling Diagram

#

Description
Price

11058

BRACKET,HEAD LAMP

11058-0581

$10.63

27012

HOOK,20X20X3.0

27012-0742

$4.41

27012A

HOOK

27012-0751

$5.98

36001

COVER-SIDE,LH,P.R.WHITE

36001-0594-68N

$122.20

36001A

COVER-SIDE,LH,M.M.D.GRAY

36001-0594-69P

$117.73

36001B

COVER-SIDE,RH,P.R.WHITE

36001-0595-68N

$122.20

36001C

COVER-SIDE,RH,M.M.D.GRAY

36001-0595-69P

$117.73

36037

COVER-SIDE,LH,EBONY

36037-5281-H8

$315.53

36037A

COVER-SIDE,RH,EBONY

36037-5282-H8

$315.53

39154

WINDSHIELD

39154-0420

$231.60

39156

PAD

39156-0536

$2.76

39156A

PAD,15X30X0.2

39156-0979

$1.62

39156B

PAD,10X30X0.2

39156-0980

$1.18

39156C

PAD,COVER FRAME,LH

39156-2410

$10.30

39156D

PAD,COVER FRAME,RH

39156-2411

$10.30

39156E

PAD,105X10X10

39156-2884

$1.82

39188

TAPE

39188-0022

$0.84

55028

COWLING,UPP,M.G.GRAY

55028-0842-45W

$403.74

55028A

COWLING,UPP,L.GREEN

55028-0842-777

$403.74

55028B

COWLING,UPP,EBONY

55028-0842-H8

$403.74

55028C

COWLING,UPP,CNT

55028-0843

$33.18

55028D

COWLING,METER,LH,INNER

55028-0853

$33.59

55028E

COWLING,METER,RH,INNER

55028-0854

$39.89

56001

MIRROR-ASSY,LH

56001-0393

$89.23

56001A

MIRROR-ASSY,RH

56001-0394

$89.23

92015

NUT,5MM

92015-1710

$6.22

92015A

NUT,WELL,5MM

92015-1757

$7.29

92039

RIVET

92039-0060

$3.39

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92154A

BOLT,SOCKET,5X16

92154-1701

$1.19

92154B

BOLT,SOCKET,6X22

92154-3777

$1.69

92154C

BOLT,SOCKET,5X23

92154-7055

$2.13

92160

DAMPER

92160-1183

$3.57

92160A

DAMPER

92160-1190

$4.08

92161

DAMPER

92161-1531

$3.02

92161A

DAMPER,6X20X7.5

92161-1937

$1.94

92200

WASHER,5.2X10X1.0

92200-1820

$0.63

92210

NUT,5MM

92210-0001

$6.18

130

BOLT-FLANGED,5X12

130BA0512

$2.22
