Description

Price

13087

HUB-CLUTCH

13087-1159

$142.41

13088

PLATE-FRICTION

13088-1124

$18.35

13089

PLATE-CLUTCH,T=2.0

13089-1073

Unavailable

13089A

PLATE-CLUTCH,T=2.3

13089-1084

$12.80

13089B

PLATE-CLUTCH,T=2.6

13089-1115

Unavailable

13091

HOLDER,CLUTCH SPRING

13091-1041

$12.23

13095A

HOUSING-COMP-CLUTCH

13095-1335

Unavailable

13102

RELEASE-COMP-CLUTCH

13102-1125

Unavailable

13187

PLATE-CLUTCH OPERATING

13187-1079

Unavailable

46102

ROD,CLUTCH

46102-1371

$33.63

92015

NUT,20MM

92015-1555

$13.08

92022

WASHER,20.3X36X3.7

92022-1868

$9.51

92026

SPACER,25.5X47X2.5

92026-022

$9.91

92026A

SPACER

92026-1356

$12.74

92028

BUSHING

92028-1741

$37.06

92045

BEARING-BALL,6001C3ML01

92045-1235

$16.25

92046

BEARING-NEEDLE

92046-1231

$28.68

92144

SPRING,FRICTION PLATE

92144-1854

$8.90

92144A

SPRING,CLUTCH,L=82.1MM

92144-1881

$10.97

92150

BOLT,CLUTCH OPERATING

92150-1855

$5.24

92200

WASHER,FRICTION PLATE

92200-1260

$10.28

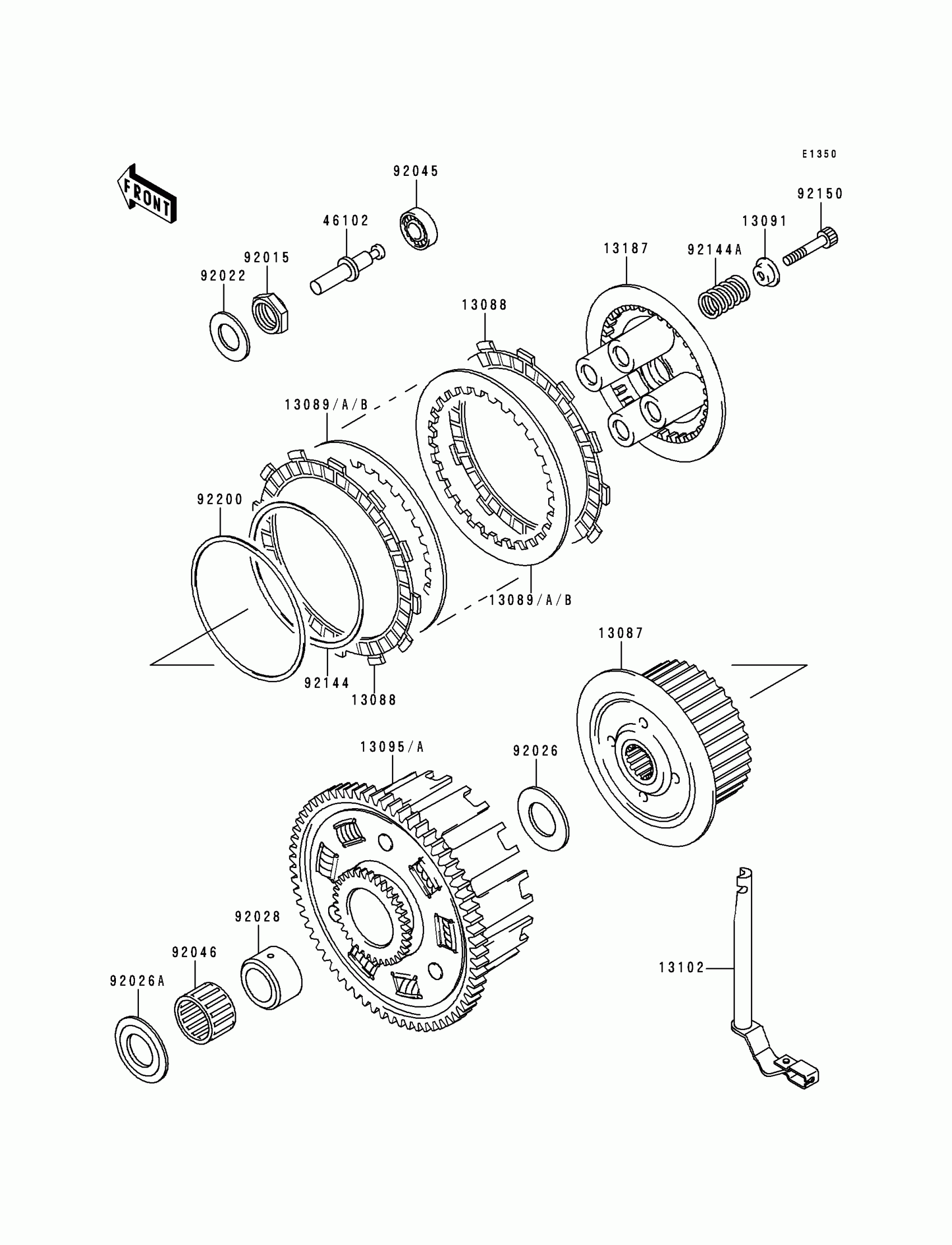

Kawasaki Ninja® ZX™-6R Clutch Diagram

HUB-CLUTCH

PLATE-FRICTION

PLATE-CLUTCH,T=2.0

PLATE-CLUTCH,T=2.3

PLATE-CLUTCH,T=2.6

HOLDER,CLUTCH SPRING

HOUSING-COMP-CLUTCH

RELEASE-COMP-CLUTCH

PLATE-CLUTCH OPERATING

ROD,CLUTCH

NUT,20MM

WASHER,20.3X36X3.7

SPACER,25.5X47X2.5

SPACER

BUSHING

BEARING-BALL,6001C3ML01

BEARING-NEEDLE

SPRING,FRICTION PLATE

SPRING,CLUTCH,L=82.1MM

BOLT,CLUTCH OPERATING

WASHER,FRICTION PLATE
